WERP3200PQ2 05 – DOOR PARTS, OPTIONAL PARTS

WERP3200PQ2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERP3200PQ2 05 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI135503A
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	WPL 9762424
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP3196154 Whirlpool Screw Assembly
	WPL ARI135504A
	WPL ARI135502A
	WPL ARI135501A
	WPL ARI135500A
	WPL ARI135499A
	WPL ARI135498A
	WPL ARI135497A
	WPL 9759580
	WPL 9758180
	WPW10295595 Whirlpool Wire Harness
	WPL 9756779
	WPL 9756350
	242831 Whirlpool Oven Wire
	3400964 Whirlpool Oven Clip
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	4392899 Whirlpool Biscuit Touch-Up Paint
	W11447673 Whirlpool Range Tip Anchor
	Wire (14 Ga. 150 c Yellow)
	350942 Whirlpool Spray Paint
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint

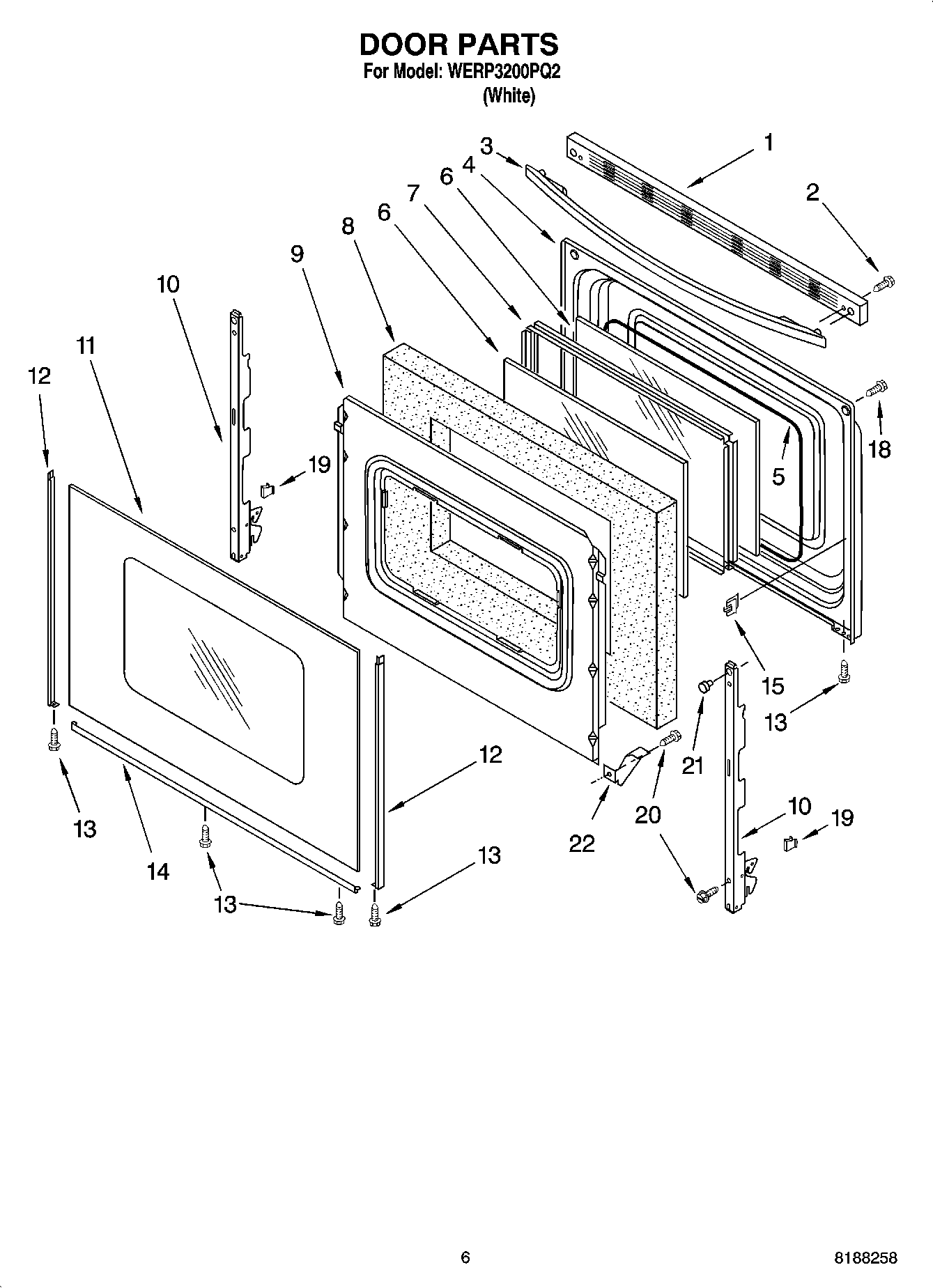

1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP8053834 Whirlpool Door Glass
12	WP8523172 Whirlpool Left Door Trim
12	WP8523166 Whirlpool Door Trim
13	W10491985 Whirlpool Screw
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	238614 Whirlpool Bumper Hinge
22	WP3196794 Whirlpool Glass Bracket
