WERP4101SB2 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in

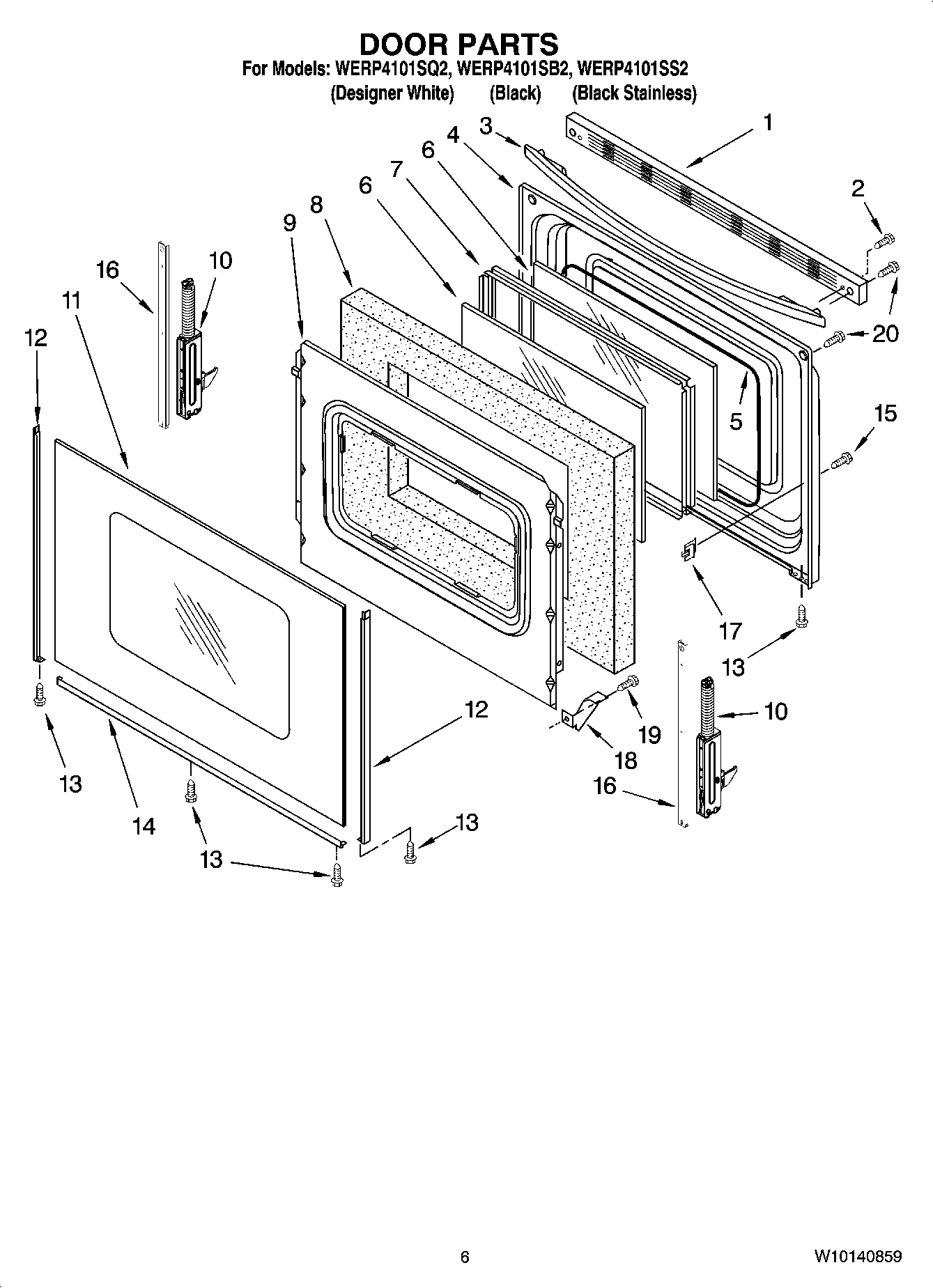

WERP4101SB2 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI165059A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL W10111795
WPL ARI165058A
WPL ARI165057A
WPL ARI165056A
WPL ARI165055A
WPL ARI165054A
WPL ARI165053A
WPL W10111793
W11172524 Whirlpool Wire Harness
WPL W10111781
WPL 9756779
3184020 Whirlpool Oven Wire
W11447673 Whirlpool Range Tip Anchor
FOIL, ALUMINUM OVEN (18“ X 25 )
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPW10208653 Whirlpool Insulation
WPL 799832
511873 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Clip, Ground Wire
350942 Whirlpool Spray Paint
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (White)
2
WP3196164 Whirlpool Screw
3
Handle, Door (Black)
3
Handle, Door (White)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347464 Whirlpool Door Hinge
10
W10347466 Whirlpool Door Hinge
11
WPW10118455 Whirlpool Door Glass Assembly
11
Glass, Outer (Stainless Steel)
11
WPW10118454 Whirlpool Door Outer Glass White
12
WP8523172 Whirlpool Left Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
13
W10491985 Whirlpool Screw
14
WP8523175 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523180 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
16
W11502236 Whirlpool Door Trim
17
Clip, Glass (4)
18
WP3196794 Whirlpool Glass Bracket
19
WP3196175 Whirlpool Screw
20
W10777162 Whirlpool Screw
←
