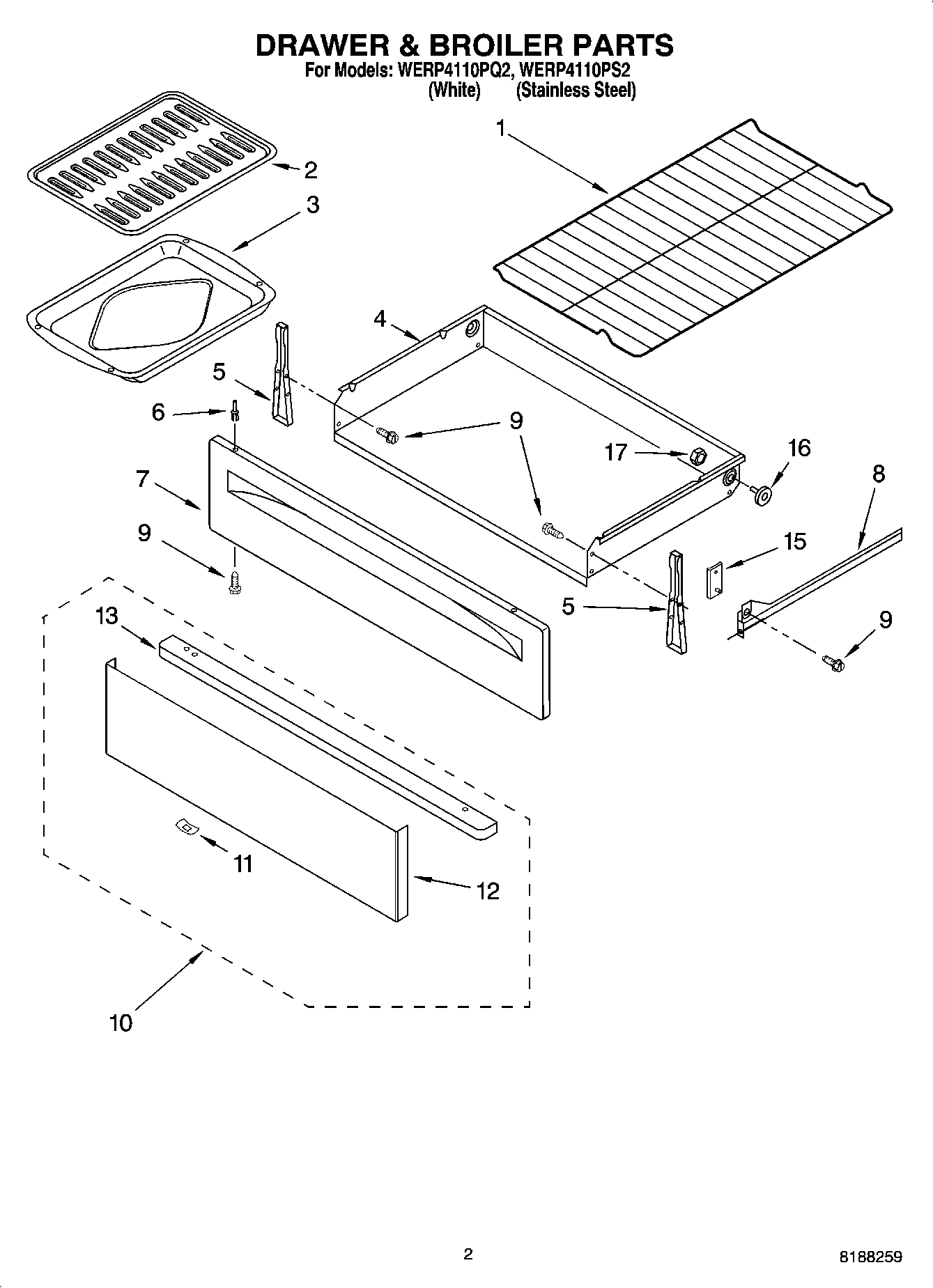

WERP4110PQ2 02 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Rail, Drawer (Left Hand)
8	Rail, Drawer (Right Hand)
9	WP3400832 Whirlpool Screw
10	For Stainless Model Only
11	WP9781235 Whirlpool Clip
12	Panel, Stainless
13	Handle
15	Spacer, Glide
16	814229 Whirlpool Primary Roller
17	WP487939 Whirlpool Refrigerator Nut
