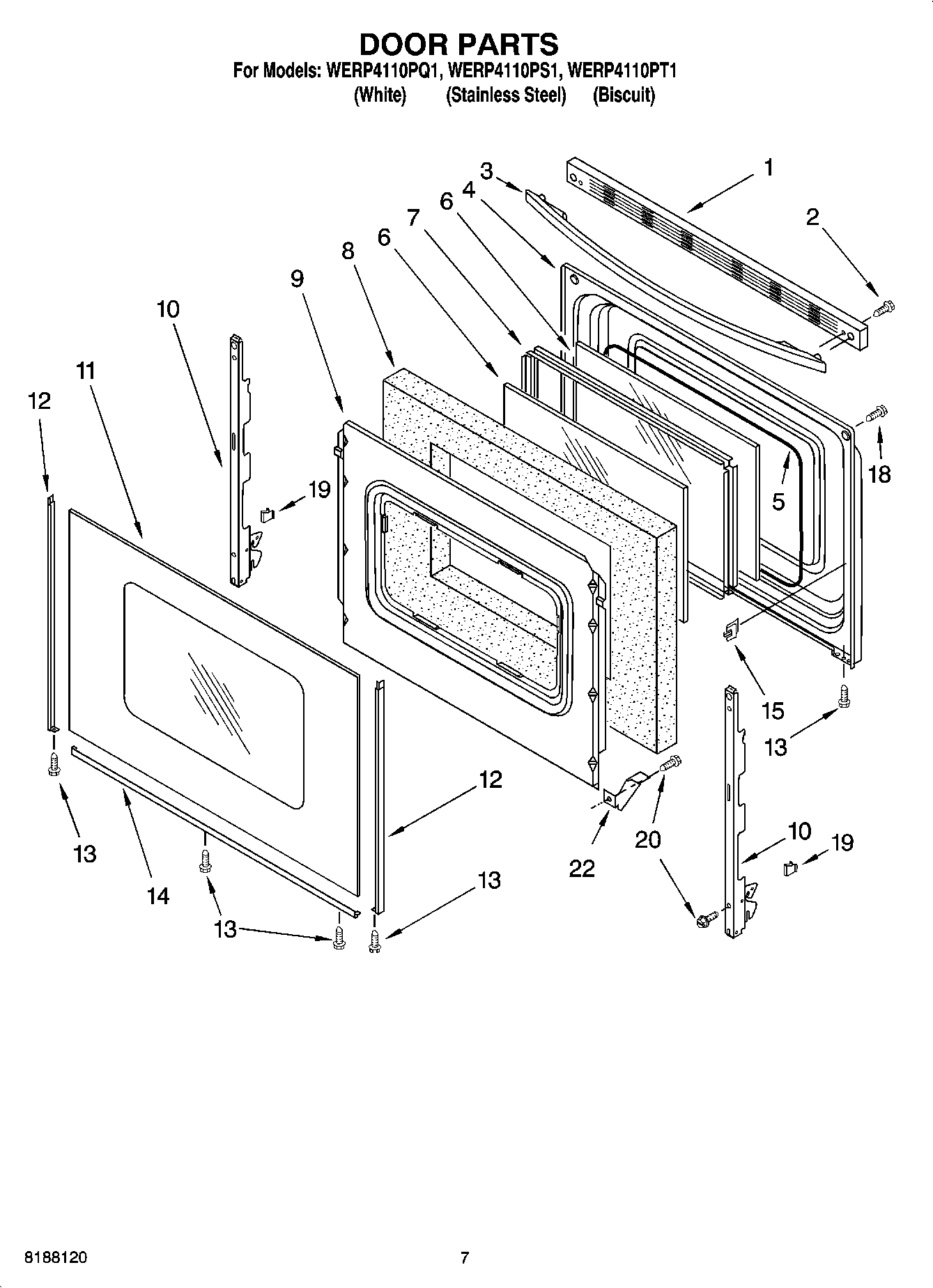

WERP4110PS1 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
WERP4110PS1 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI165199A
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL 9759776
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL 9756350
WPL ARI165198A
WPL ARI165197A
WPL ARI165196A
WPL ARI165195A
WPL ARI165194A
WPL ARI165193A
WPL ARI165192A
WPL 9759777
WPL 9759582
WPL 9757288
WPL 9758180
WPL 9756779
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
WPL 799832
W11447673 Whirlpool Range Tip Anchor
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Biscuit)
1
Trim, Top (Stainless Model)
2
WP3196164 Whirlpool Screw
3
WPW10202216 Whirlpool Door Handle
3
Handle, Door (Biscuit)
3
WPW10202217 Whirlpool Door Handle
4
Liner, Door
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
Hinge, Door (Stainless Model)
10
WP8053807 Whirlpool Oven Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Biscuit)
11
Glass, Outer (Stainless Steel)
12
WP8523166 Whirlpool Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
W10761014 Whirlpool Right Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523172 Whirlpool Left Door Trim
12
WP8523173 Whirlpool Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523175 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
18
WP179051 Whirlpool Screw
19
WP3196925 Whirlpool Clip Assembly
20
WP3196175 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
