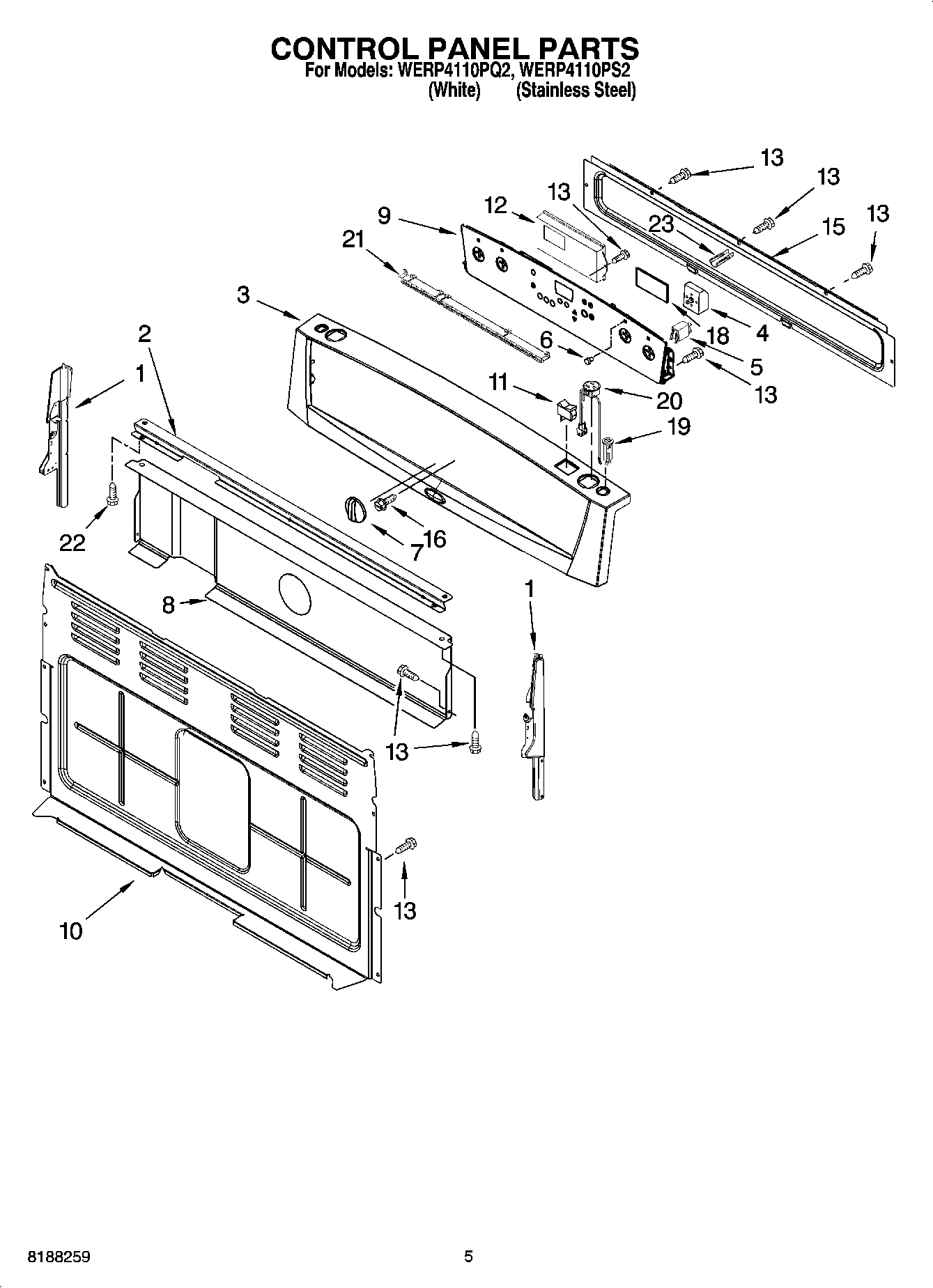

WERP4110PS2 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	WP9752759 Whirlpool Relay
1	W11219664 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
2	Bracket, Console
3	Panel, Backguard (White)
3	Panel, Backguard (Stainless Steel)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (White)
7	W10851285 Whirlpool Knob
8	Shield, Heat
9	Bracket, Control (White)
9	Bracket, Control (Black)
10	Cover, Rear
11	Switch, Rocker (White)
11	Switch, Rocker (Architect Grey)
12	Control, Range
13	SCREW
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
18	Card, Insulator
19	WP9757601 Whirlpool Breaker
19	Breaker, 15Amp (Architect Grey)
20	Receptacle (White)
20	Receptacle (Architect Grey)
21	Re
22	3196166 Whirlpool Screw
23	WPL 9757490
