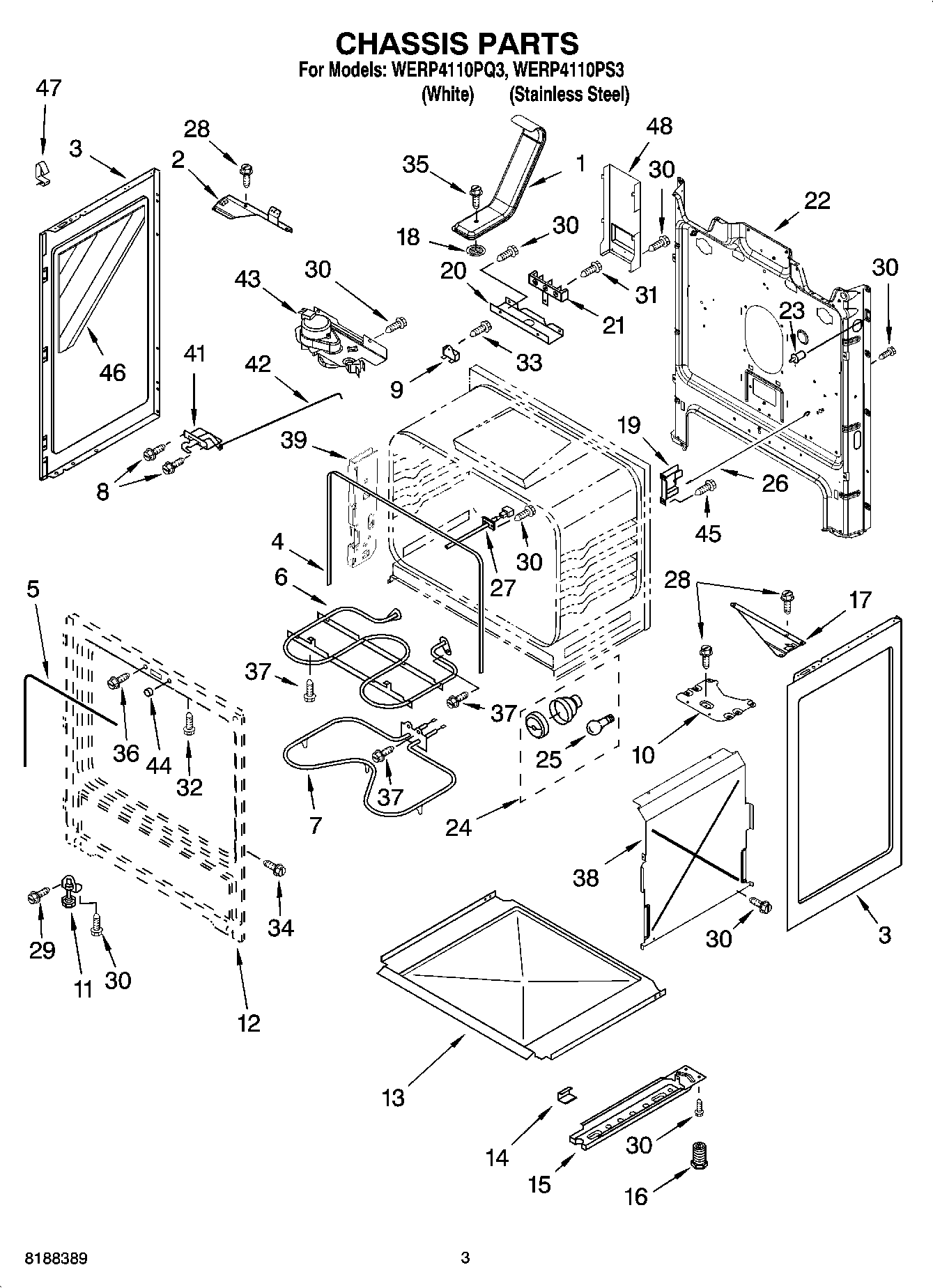

WERP4110PS3 03 – CHASSIS PARTS

WERP4110PS3 03 – CHASSIS PARTS

Written by

in

WERP4110PS3 03 – CHASSIS PARTS

Products

PositionProduct
1WPW10134285 Whirlpool Vent Tube
2Support, Corner LR
3WPW10575396 Whirlpool Side Panel
3W11730303 Whirlpool Side Panel
4Seal, Oven Flange
5W11542153 Whirlpool Door Gasket
6WP9757341 Whirlpool Broil Element
7WPW10308477 Whirlpool Bake Element
8W11169708 Whirlpool Screw
9WP3196548 Whirlpool Thermal Fuse
10Support, Front (2)
11WP3196037 Whirlpool Leveling Foot
12Frame, Front Not Serviced
13WP8054068 Whirlpool Retainer
14Clip, Panel (6)
15WPW10306546 Whirlpool Base Rail
16WPW10058460 Whirlpool Appliance Levelling Leg
17Support, Corner RR
189761301 Whirlpool Oven Screen
19W10404688 Whirlpool Bracket Support
20W11728255 Whirlpool Service Bracket
21WP8203546 Whirlpool Terminal Block
21WP112432 Whirlpool Nut Assembly
22Back, Main
23W11243424 Whirlpool Light Switch
24W11594027 Whirlpool Range Oven Light Socket
25RANGE ONLY 40W 120V APPL BULB
269757239 Whirlpool Oven Door Rod
27WPW10181986 Whirlpool Oven Sensor
28WP3196175 Whirlpool Screw
29Screw
31WP3400016 Whirlpool Screw Assembly
32SCREW
333196172 Whirlpool Oven Screw
34WP7101P246-60 Whirlpool Screw
35WP489491 Whirlpool Refrigerator Screw
36WP3400832 Whirlpool Screw
37WP3196174 Whirlpool Screw
38W10450380 Whirlpool Retainer
39W10647259 Whirlpool Hinge Receiver
41WP9761013 Whirlpool Door Latch
42Rod, Latch
43Latch Asy, Rear
44W10877054 Whirlpool Spacer Assembly
45WP3196557 Whirlpool Screw
46Insulation
47Clip – Mounting
48Insulation
48WPW10208653 Whirlpool Insulation
48WP8272612 Whirlpool Insulation
488053915 Whirlpool Oven Insulation
48WPW10326122 Whirlpool Black Cover
