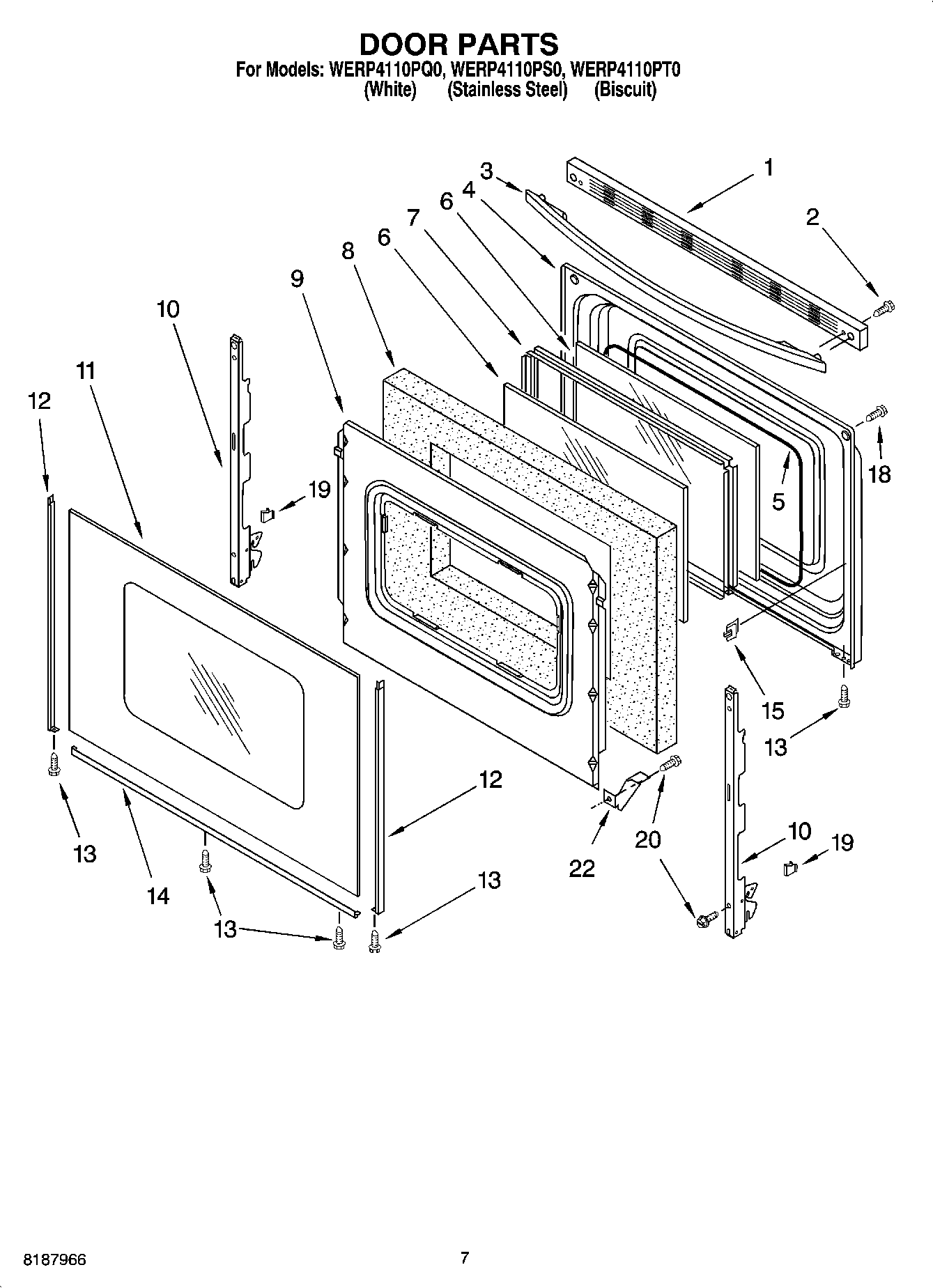

WERP4110PT0 05 – DOOR PARTS, MISCELLANEOUS PARTS

WERP4110PT0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

WERP4110PT0 05 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI165230A
	WP3196154 Whirlpool Screw Assembly
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WPL 8316781
	WPL 9756350
	WPL 9756779
	WPL ARI165229A
	WPL ARI165228A
	WPL ARI165227A
	WPL ARI165226A
	WPL ARI165225A
	WPL ARI165232A
	WPL ARI165231A
	WPL 9759777
	WPL 9759776
	WPL 9759582
	WPL 9757584
	WPL 9757288
	WPL 8523718
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	285006 Whirlpool Spray
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	814381 Whirlpool Pin
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPW10208653 Whirlpool Insulation
	WPL 799832
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	72017 Whirlpool Appliance Touch-Up Paint White
	3400964 Whirlpool Oven Clip
	799344 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
1	Trim, Top (Biscuit)
1	Trim, Top (Stainless Model)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	Handle, Door (Biscuit)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Seal, Window
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	Hinge, Door (Stainless Model)
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118454 Whirlpool Door Outer Glass White
11	Glass, Outer (Biscuit)
11	Glass, Outer (Stainless Steel)
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	W10761014 Whirlpool Right Door Trim
12	WP8523173 Whirlpool Door Trim
12	WP8523172 Whirlpool Left Door Trim
13	W10491985 Whirlpool Screw
14	WP8523180 Whirlpool Door Trim Assembly
14	WP8523178 Whirlpool Door Trim
14	WP8523175 Whirlpool Door Trim Assembly
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
22	WP3196794 Whirlpool Glass Bracket
