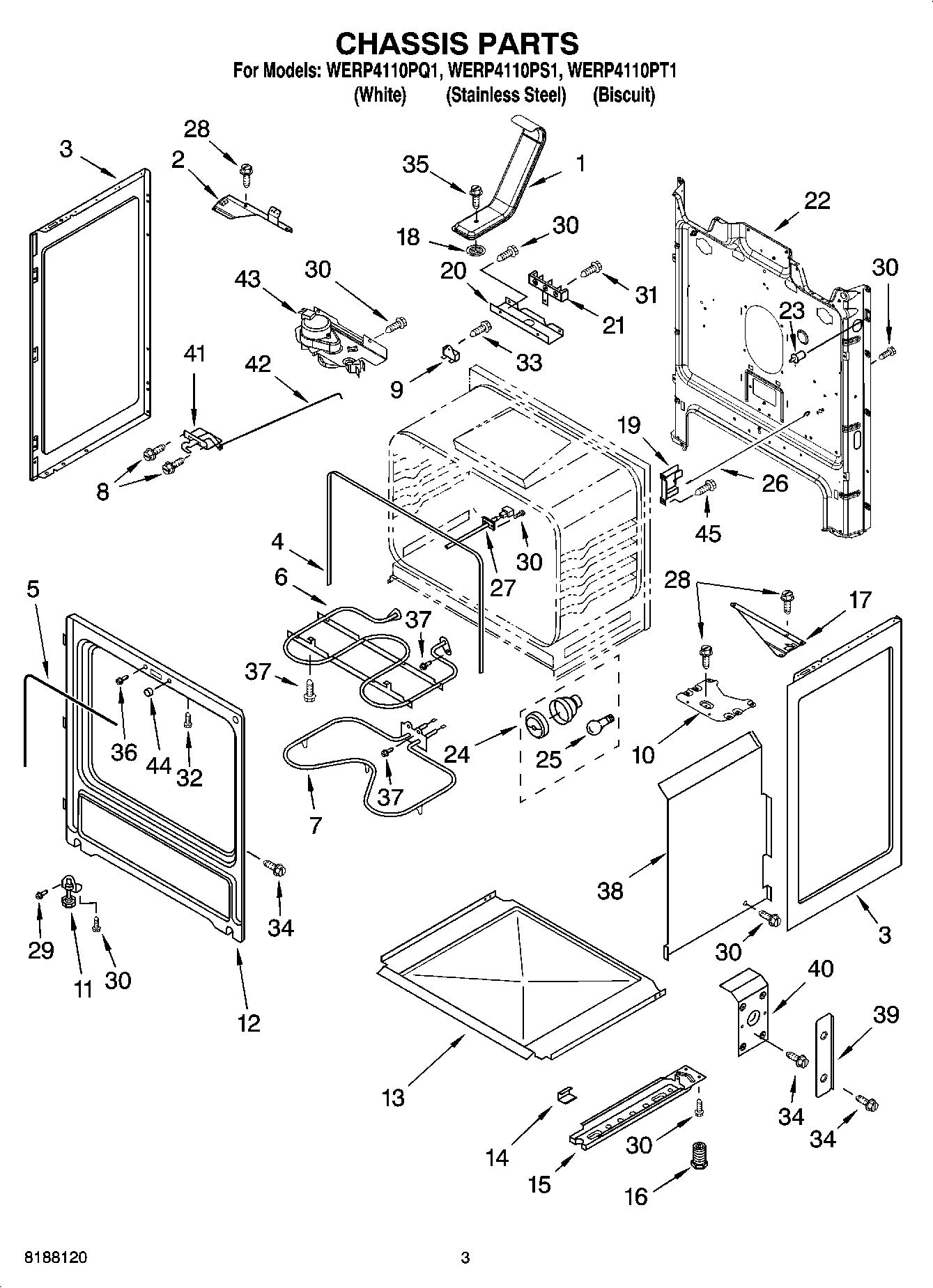

WERP4110PT1 03 – CHASSIS PARTS

Products

Position	Product
1	WPW10134285 Whirlpool Vent Tube
2	Support, Corner LR
3	W10162246 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
4	Seal, Oven Flange
5	W11542153 Whirlpool Door Gasket
6	WP9757341 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	W11169708 Whirlpool Screw
9	WP3196548 Whirlpool Thermal Fuse
10	Support, Front (2)
11	WP3196037 Whirlpool Leveling Foot
12	Frame, Front
13	WP8054068 Whirlpool Retainer
14	Clip, Panel (6)
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	Support, Corner RR
18	Screen – Catalyst
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
21	WP112432 Whirlpool Nut Assembly
22	Back, Main
23	W11243424 Whirlpool Light Switch
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	9757239 Whirlpool Oven Door Rod
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196175 Whirlpool Screw
29	Screw
31	WP3400016 Whirlpool Screw Assembly
32	SCREW
33	3196172 Whirlpool Oven Screw
34	WP7101P246-60 Whirlpool Screw
35	WP489491 Whirlpool Refrigerator Screw
36	WP3400832 Whirlpool Screw
37	WP3196174 Whirlpool Screw
38	Retainer, Side (2)
39	Shield, Outer (2)
40	Shield, Inner (2)
41	WP9761013 Whirlpool Door Latch
42	Rod, Latch
43	Latch Asy, Rear
44	W10877054 Whirlpool Spacer Assembly
45	WPW10208653 Whirlpool Insulation
45	WP8272612 Whirlpool Insulation
45	WP3196557 Whirlpool Screw
45	8053915 Whirlpool Oven Insulation
45	Insulation
