WERP4110SB1 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in

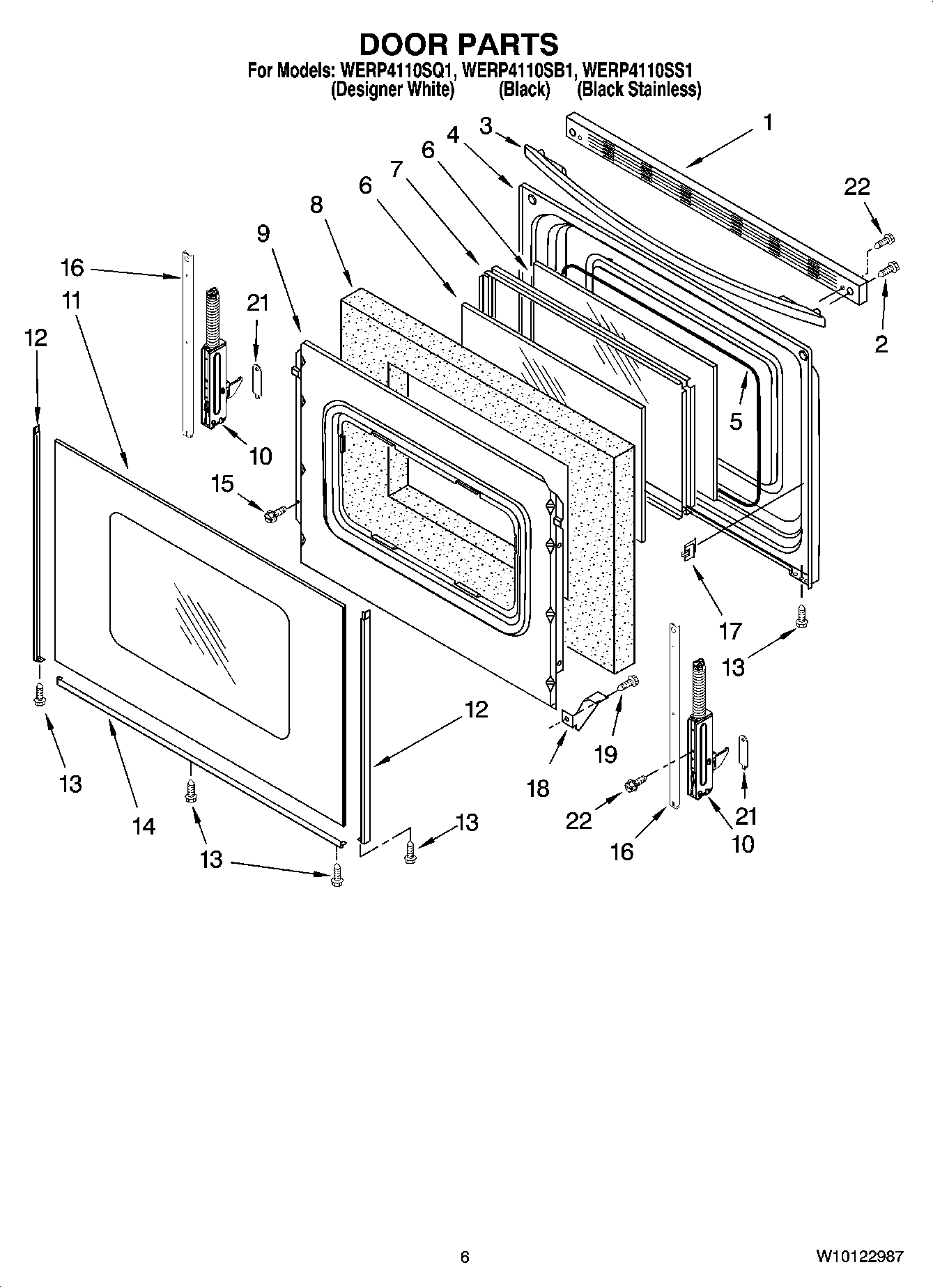

WERP4110SB1 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI135520A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL 9762958
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL ARI135519A
WPL ARI135518A
WPL ARI135517A
WPL ARI135516A
WPL W10083630
W11172524 Whirlpool Wire Harness
WPL 9762815
WPL 9756779
WPL 8524132
WPL ARI135521A
Grease
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
3400964 Whirlpool Oven Clip
1
Trim, Top (White)
1
WP9762391 Whirlpool Door Trim Assembly
2
WP3196164 Whirlpool Screw
3
Handle, Door (Black)
3
Handle, Door (White)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
10
W10347464 Whirlpool Door Hinge
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Stainless Steel)
11
WPW10118455 Whirlpool Door Glass Assembly
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
W10761014 Whirlpool Right Door Trim
12
WP8523172 Whirlpool Left Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
16
W11502236 Whirlpool Door Trim
17
Clip, Glass (4)
18
WP3196794 Whirlpool Glass Bracket
19
WP3196175 Whirlpool Screw
21
9761517 Whirlpool Oven Clip Assembly
22
W10777162 Whirlpool Screw
←
