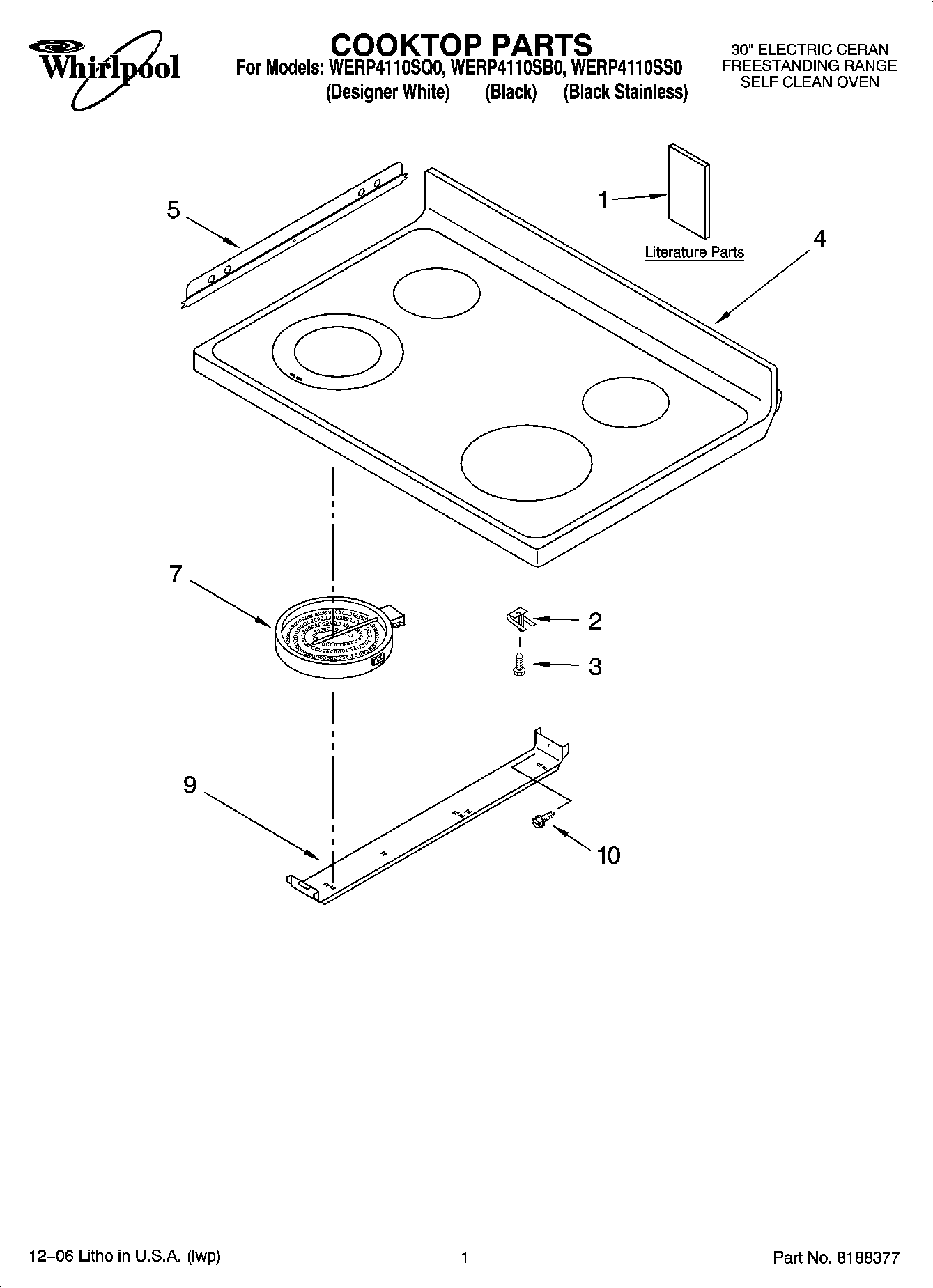

WERP4110SQ0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (English)
1Owners Manual
1Instructions, Installation
1Tech Sheet (French)
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Safe Cooking Tips (French)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Black)
4Cooktop (White)
5Heat Shield
7W10823696 Whirlpool Radiant Surface Element
7W10823692 Whirlpool Dual Radiant Element
7W10823711 Whirlpool Surface Element Left Front and Right Rear
9Bracket, Element ((2))
10WP3196557 Whirlpool Screw
