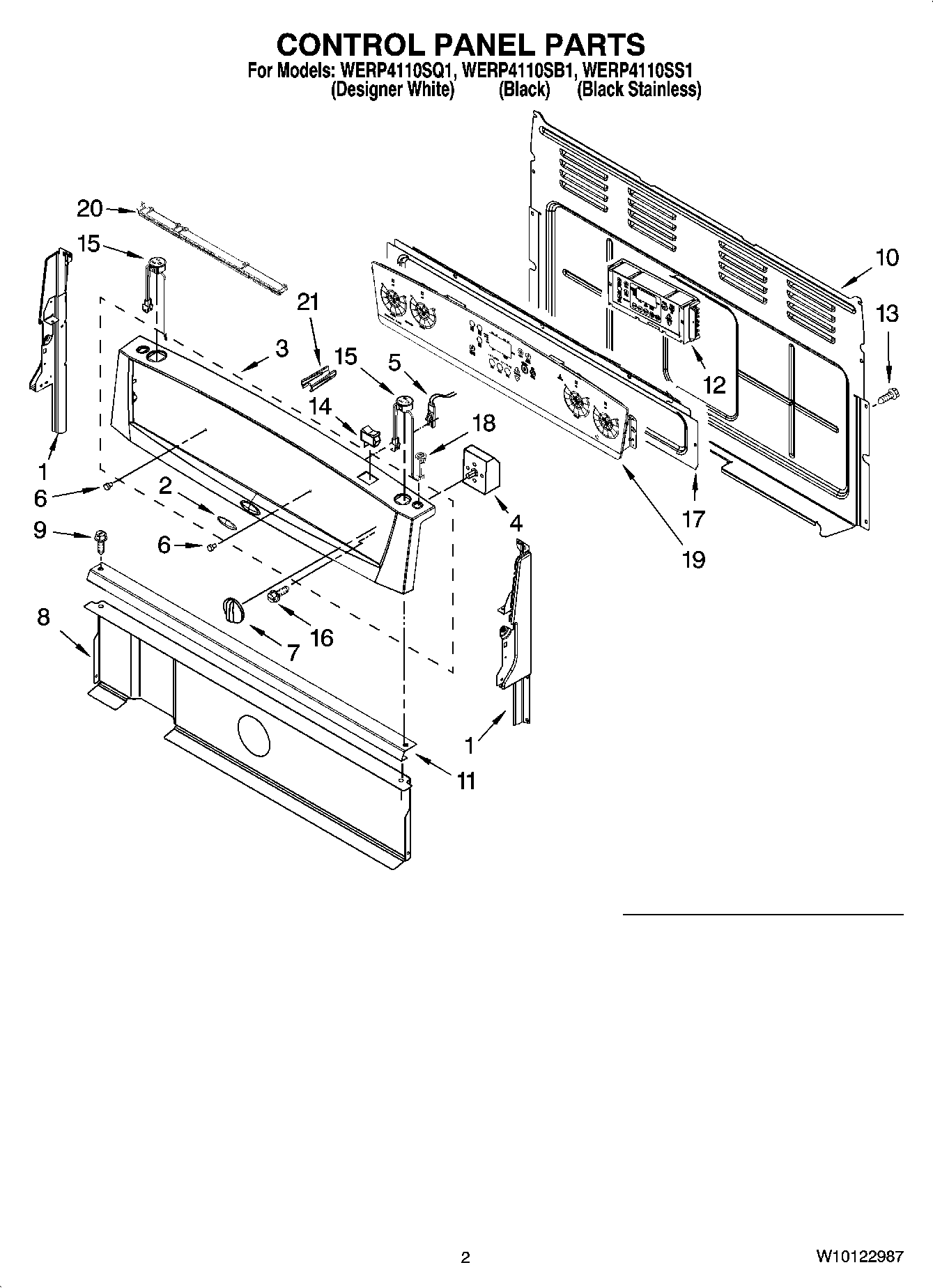

WERP4110SS1 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
2	Nameplate
3	Panel, Control (Universal Silver)
3	Panel, Control (White)
3	Panel, Control (Black)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP9758060 Whirlpool Oven Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	W10851285 Whirlpool Knob
7	Knob, Infinite (4) (White)
8	Shield, Heat
9	3196166 Whirlpool Screw
10	Cover, Rear
11	Bracket, Console
12	Control, Range
13	SCREW
14	Switch, Rocker (Black)
14	Switch, Rocker (White)
14	Switch, Rocker (Architect Gray)
15	Receptacle (Architect Grey)
15	Receptacle (White)
15	Receptacle (Black)
16	WP3400882 Whirlpool Screw
17	Cover, Rear (Console)
18	Breaker, 15Amp (Architect Grey)
18	WP9757602 Whirlpool Breaker
18	WP9757601 Whirlpool Breaker
19	Switch, Membrane (White)
19	Switch, Membrane (Black)
20	Re
21	WPL 9757490
