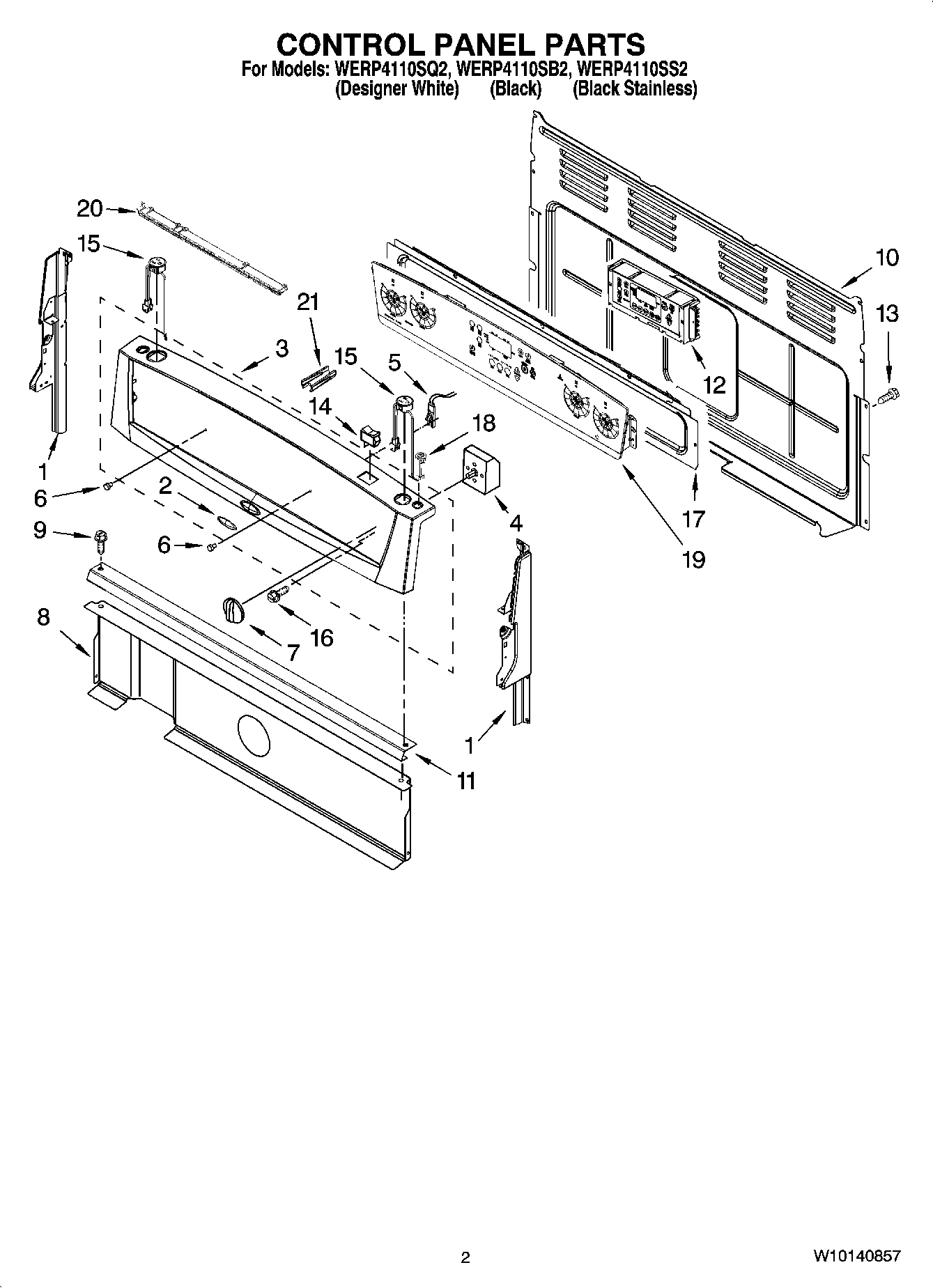

WERP4110SS2 02 – CONTROL PANEL PARTSadmin2025-04-26T11:59:37+00:00WERP4110SS2 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | W11219370 Whirlpool Endcap Panel |
| 1 | W11219664 Whirlpool Endcap Panel |
| 1 | W11219665 Whirlpool Panel Endcap |
| 1 | W11219365 Whirlpool Panel Endcap |
| 2 | Nameplate |
| 3 | Panel, Control (White) |
| 3 | Panel, Control (Universal Silver) |
| 3 | Panel, Control (Black) |
| 4 | WP3149400 Whirlpool Oven Infinite Switch |
| 4 | WP9758060 Whirlpool Oven Infinite Switch |
| 4 | WP3149404 Whirlpool Oven Surface Element Switch |
| 5 | WP8523265 Whirlpool Indicator Light |
| 6 | WP3196068 Whirlpool Light Lens |
| 7 | W10851285 Whirlpool Knob |
| 7 | Knob, Infinite (4) (White) |
| 8 | W10134247 Whirlpool Heat Shield |
| 9 | 3196166 Whirlpool Screw |
| 10 | Cover, Rear |
| 11 | Bracket, Console |
| 12 | Control, Range |
| 13 | SCREW |
| 14 | Switch, Rocker (Black) |
| 14 | Switch, Rocker (White) |
| 14 | Switch, Rocker (Architect Gray) |
| 15 | Receptacle (Architect Grey) |
| 15 | Receptacle (White) |
| 15 | Receptacle (Black) |
| 16 | WP3400882 Whirlpool Screw |
| 17 | Cover, Rear (Console) |
| 18 | Breaker, 15Amp (Architect Grey) |
| 18 | WP9757602 Whirlpool Breaker |
| 18 | WP9757601 Whirlpool Breaker |
| 19 | Switch, Membrane (White) |
| 19 | Switch, Membrane (Black) |
| 20 | Re |
| 21 | WPL 9757490 |
