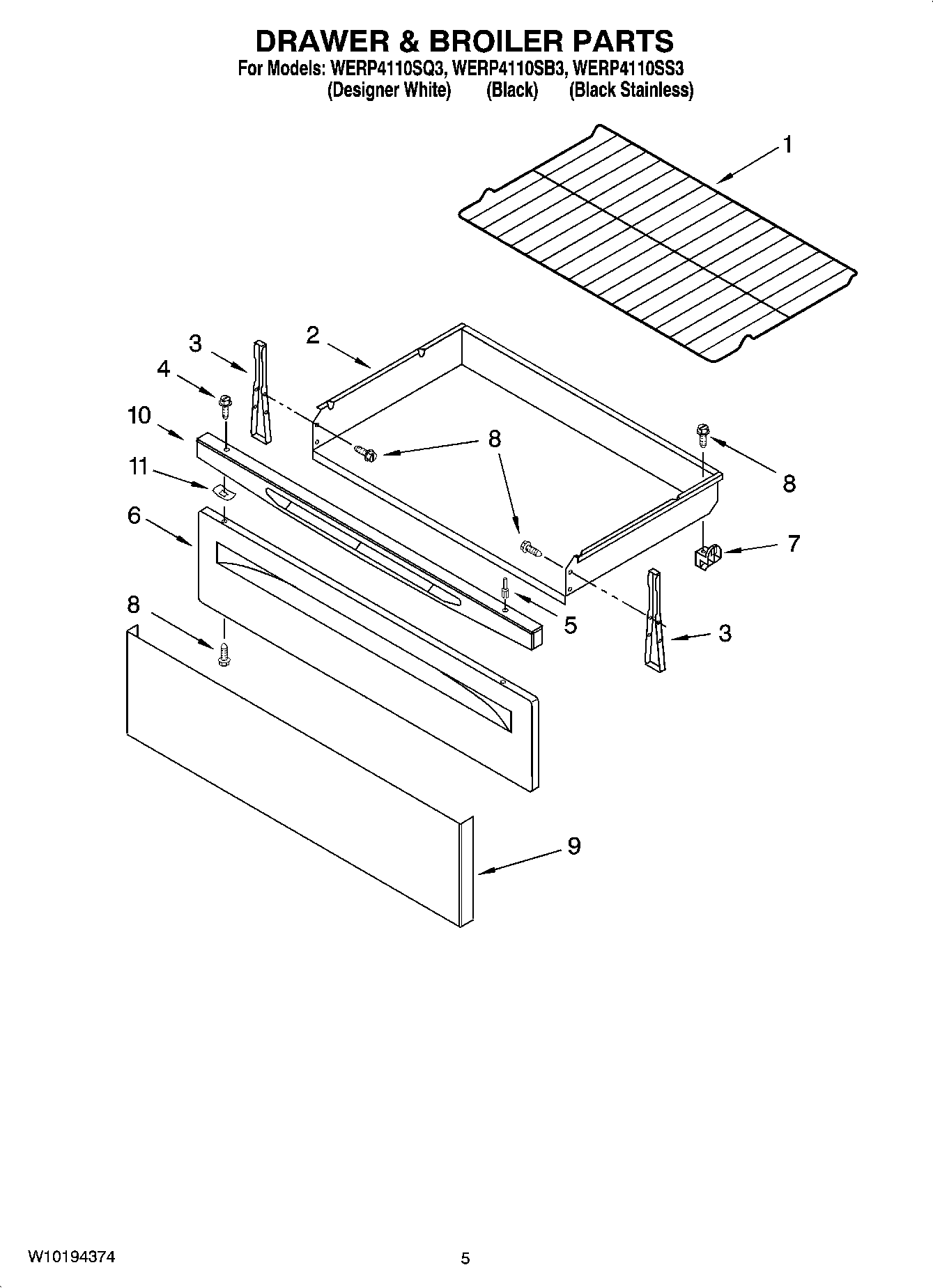

WERP4110SS3 04 – DRAWER & BROILER PARTS

WERP4110SS3 04 – DRAWER & BROILER PARTS

Written by

in

WERP4110SS3 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
4WPW10031790 Whirlpool Screw
5WP3196813 Whirlpool Rivet
5WP3196814 Whirlpool Rivet
6W11230488 Whirlpool Drawer Panel
6W11219377 Whirlpool Drawer Panel
7WP8053334 Whirlpool Drawer Glide
8WP3400832 Whirlpool Screw
9Panel, Stainless
10Handle (Black)
11WP9781235 Whirlpool Clip
