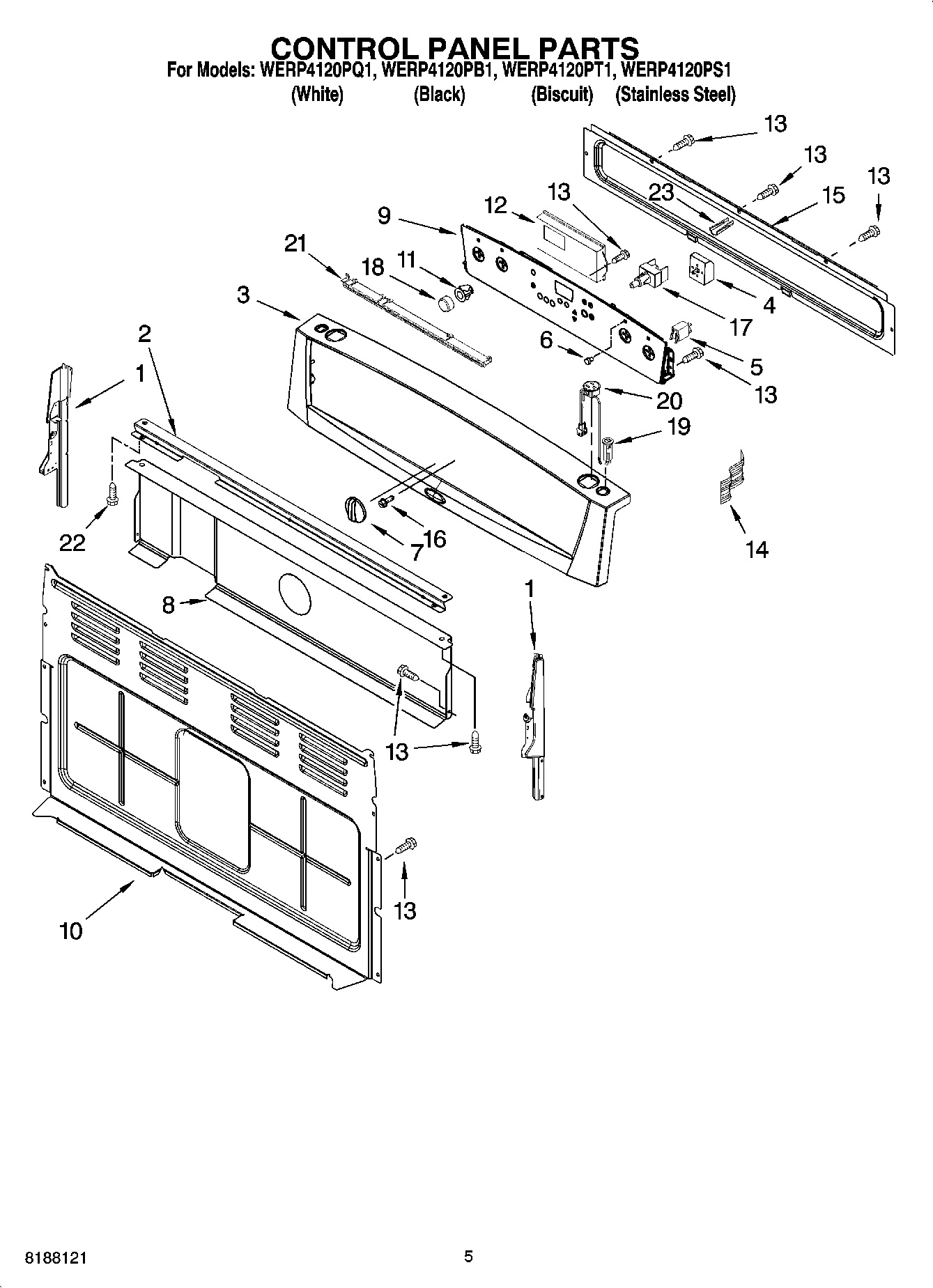

WERP4120PQ1 04 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219665 Whirlpool Panel Endcap
1	W11230612 Whirlpool Panel End Cap
1	Endcap (Biscuit Left Hand)
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Bracket, Console
3	Panel, Backguard (Stainless Steel)
3	Panel, Backguard (White)
3	Panel, Backguard (Black)
3	Panel, Backguard (Biscuit)
4	WP9758060 Whirlpool Oven Infinite Switch
4	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (Biscuit)
7	W10851285 Whirlpool Knob
7	Knob, Infinite (4) (White)
8	Shield, Heat
9	Bracket, Control (Biscuit)
9	Bracket, Control (White)
9	Bracket, Control (Black)
10	Cover, Rear
11	Bezel, Keep Warm (Biscuit)
11	Bezel, Keep Warm (Black)
11	Bezel, Keep Warm (White)
12	Control, Range
13	SCREW
14	WPL 9762425
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
17	WP8272820 Whirlpool PB Switch
18	9757492 Whirlpool Oven Push Button
18	Button (Biscuit)
18	9758491 Whirlpool Oven Push Button
19	WP9757602 Whirlpool Breaker
19	WP9757601 Whirlpool Breaker
19	Breaker, 15Amp (Architect Grey)
19	Breaker, 15Amp (Biscuit)
20	Receptacle (Biscuit)
20	Receptacle (Black)
20	Receptacle (White)
20	Receptacle (Architect Grey)
21	Re
22	WPL 8281194
22	3196166 Whirlpool Screw
23	WPL 9757490
