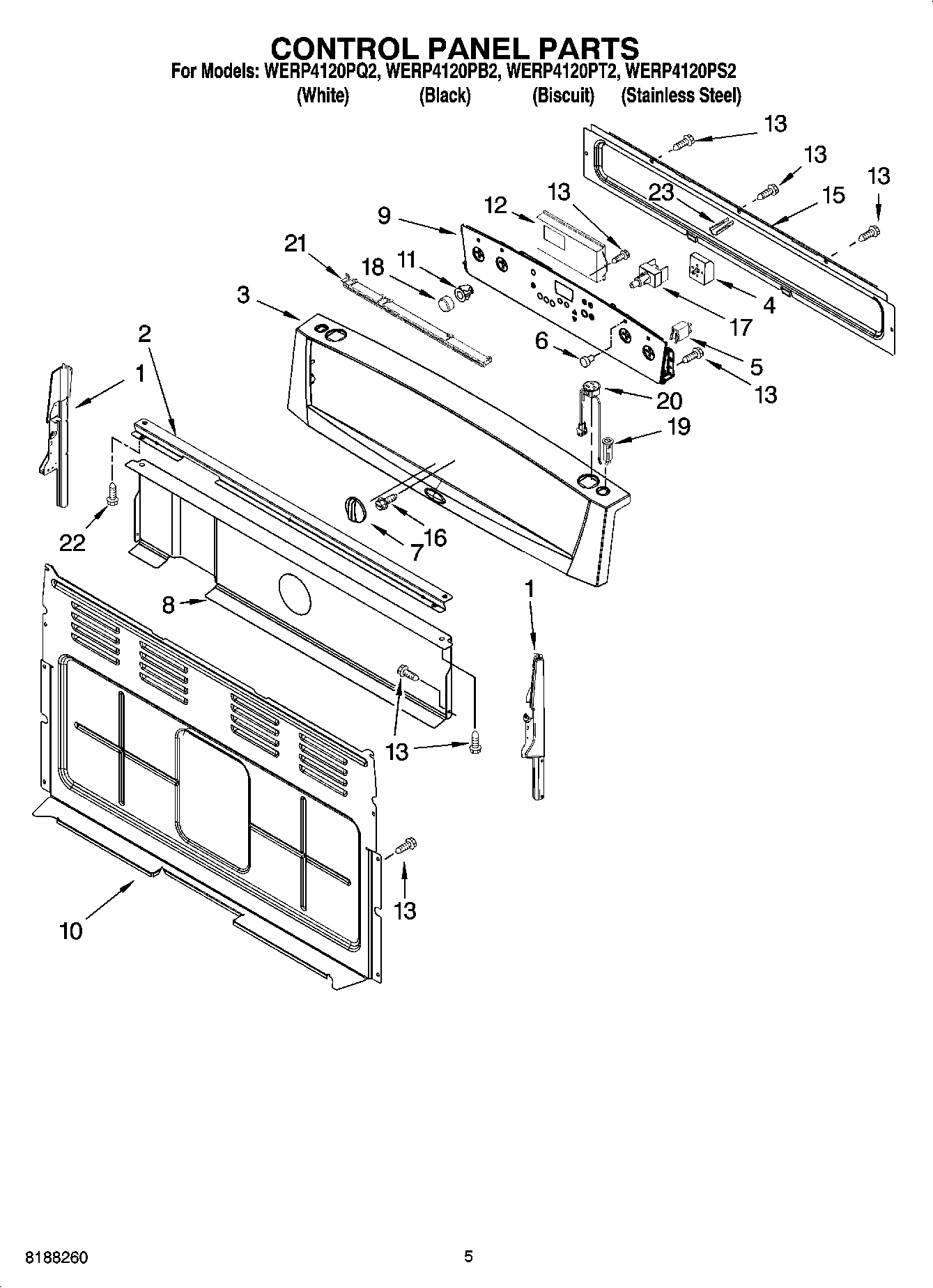

WERP4120PQ2 04 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219665 Whirlpool Panel Endcap
1	Endcap (Biscuit Left Hand)
1	W11230612 Whirlpool Panel End Cap
1	W11219664 Whirlpool Endcap Panel
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	Bracket, Console
3	Panel, Backguard (Stainless Steel)
3	Panel, Backguard (White)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (Black)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9758060 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (Biscuit)
7	Knob, Infinite (4) (White)
7	W10851285 Whirlpool Knob
8	Shield, Heat
9	Bracket, Control (Biscuit)
9	Bracket, Control (Black)
9	Bracket, Control (White)
10	Cover, Rear
11	Bezel, Keep Warm (Black)
11	Bezel, Keep Warm (Biscuit)
11	Bezel, Keep Warm (White)
12	Control, Range
13	SCREW
15	Cover, Rear (Console)
16	WP3400882 Whirlpool Screw
17	WP8272820 Whirlpool PB Switch
18	9757492 Whirlpool Oven Push Button
18	9758491 Whirlpool Oven Push Button
18	Button (Biscuit)
19	Breaker, 15Amp (Biscuit)
19	WP9757601 Whirlpool Breaker
19	Breaker, 15Amp (Architect Grey)
19	WP9757602 Whirlpool Breaker
20	Receptacle (White)
20	Receptacle (Biscuit)
20	Receptacle (Architect Grey)
20	Receptacle (Black)
21	Re
22	WPL 8281194
22	3196166 Whirlpool Screw
23	WPL 9757490
