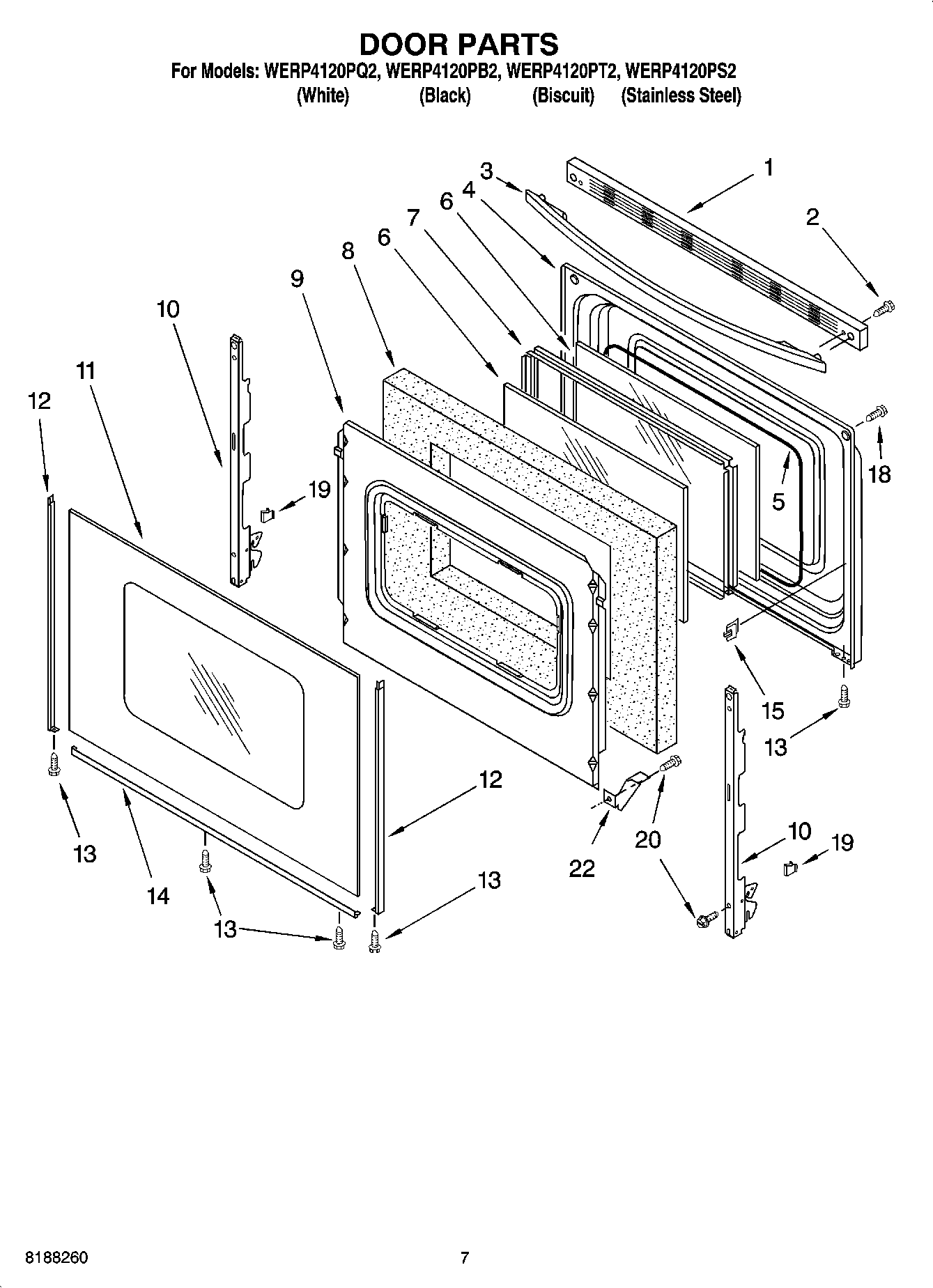

WERP4120PQ2 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
WERP4120PQ2 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
W10465644 Whirlpool Wire Harness
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
W11244557 Whirlpool Screw
3400964 Whirlpool Oven Clip
Wire (14 Ga. 150 c Orange)
WPL 9762425
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 9761455
WPL 9758174
WPL 9759590
WPL 9756350
WPL 9756779
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
WPL 9761453
WPL ARI165310A
WPL ARI165311A
WPL ARI165316A
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI165317A
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
WPL ARI165312A
WPL ARI165313A
W11447673 Whirlpool Range Tip Anchor
WPL ARI165314A
WPL ARI165315A
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
1
WPW10016370 Whirlpool Door Trim
1
Trim, Top (Biscuit)
1
Trim, Top (Stainless Model)
1
Trim, Top (Black)
2
WP3196164 Whirlpool Screw
3
WPW10202216 Whirlpool Door Handle
3
Handle, Door (Biscuit)
3
WPW10202217 Whirlpool Door Handle
4
Liner, Door
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
Hinge, Door (Stainless Model)
10
WP8053807 Whirlpool Oven Door Hinge
11
Glass, Outer (Stainless Steel)
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
11
Glass, Outer (Biscuit)
12
WP8523166 Whirlpool Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
WP8523172 Whirlpool Left Door Trim
12
WP8523173 Whirlpool Door Trim
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
W10761014 Whirlpool Right Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
Clip, Glass (4)
18
WP179051 Whirlpool Screw
19
WP3196925 Whirlpool Clip Assembly
20
WP3196175 Whirlpool Screw
22
WP3196794 Whirlpool Glass Bracket
←
