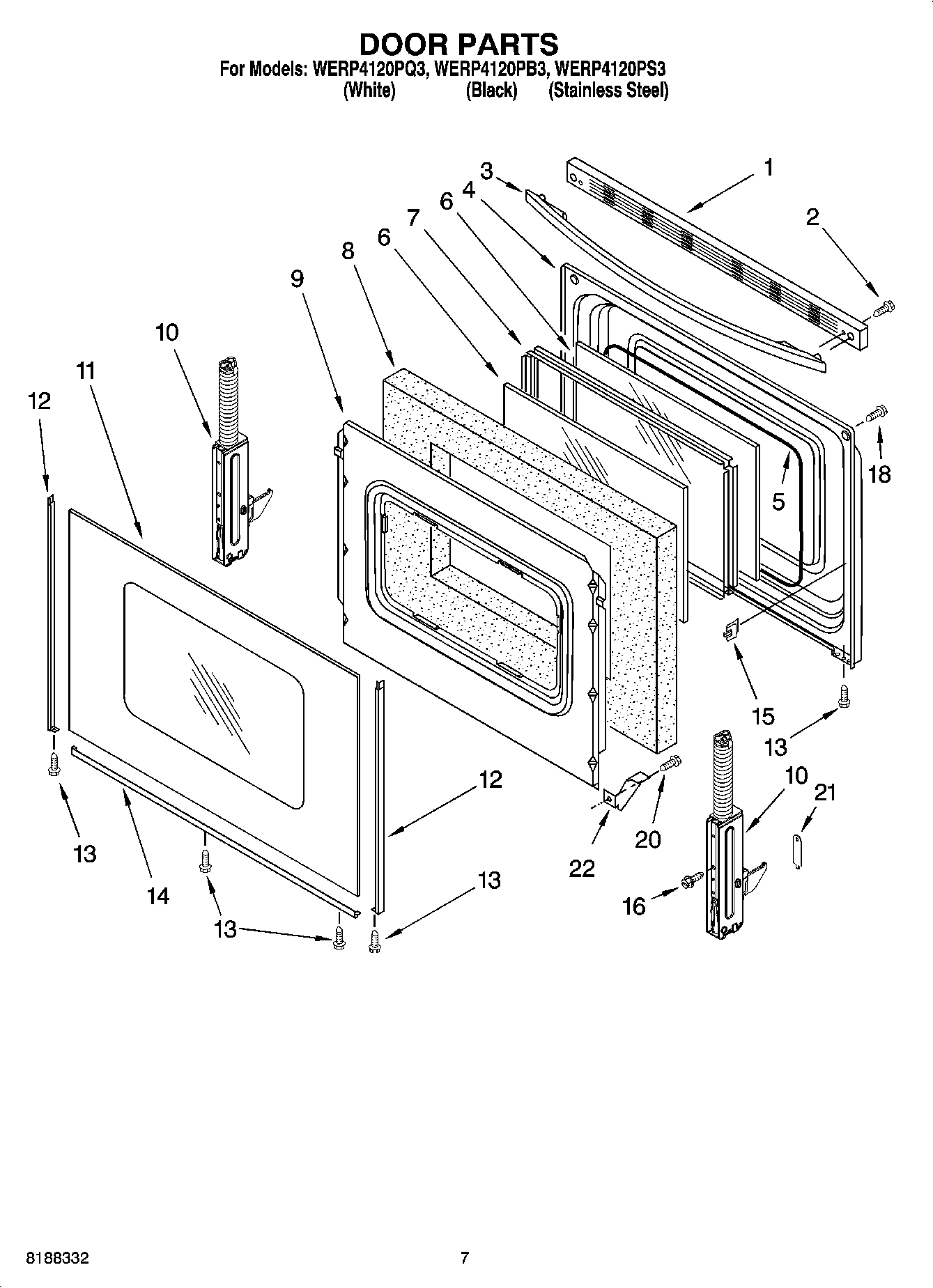

WERP4120PQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WERP4120PQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WERP4120PQ3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI165328A
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
WPL 9762425
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP3196154 Whirlpool Screw Assembly
WPL 9758174
W10465644 Whirlpool Wire Harness
WPL ARI165327A
WPL ARI165326A
WPL ARI165325A
WPL ARI165324A
WPL ARI165323A
WPL ARI165322A
WPL ARI165321A
WPL 9761455
WPL 9761453
WPL 9756779
WPL 9756350
WPL 9759590
242831 Whirlpool Oven Wire
FOIL, ALUMINUM OVEN (18“ X 25 )
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4392899 Whirlpool Biscuit Touch-Up Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
WPL 799832
WPW10208653 Whirlpool Insulation
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
350942 Whirlpool Spray Paint
3400964 Whirlpool Oven Clip
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
1Trim, Top (Black and S.Steel Models)
1Trim, Top (Black)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202217 Whirlpool Door Handle
3WPW10202216 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
10W10347466 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Stainless Steel)
11WPW10118455 Whirlpool Door Glass Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523180 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15Clip, Glass (4)
16WPW10031790 Whirlpool Screw
18W10777162 Whirlpool Screw
20WP3196175 Whirlpool Screw
219761517 Whirlpool Oven Clip Assembly
22WP3196794 Whirlpool Glass Bracket
