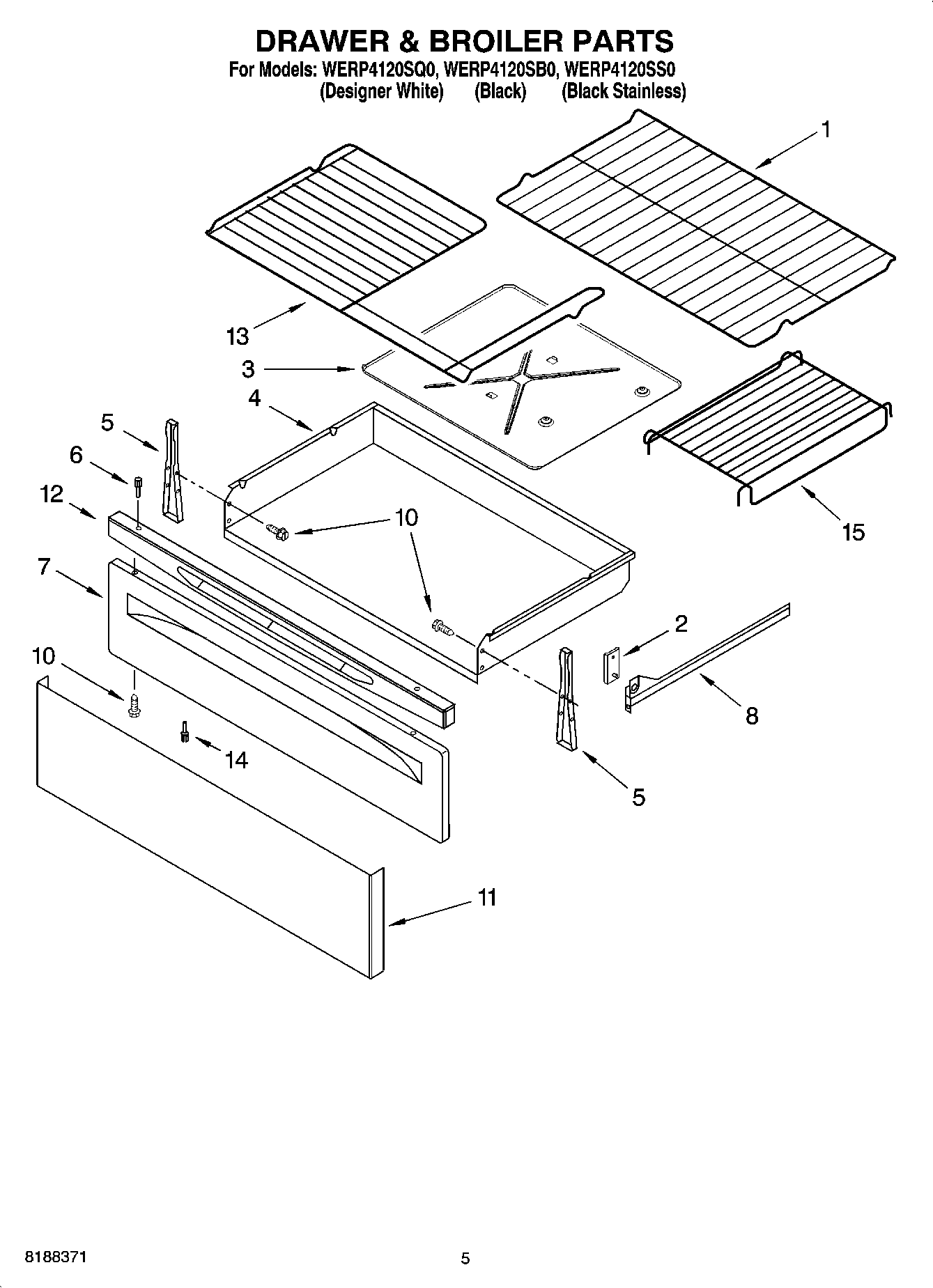

WERP4120SQ0 04 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	Spacer, Glide
3	Heat Shield, Drawer
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
7	W11230488 Whirlpool Drawer Panel
7	W11219377 Whirlpool Drawer Panel
8	Rail, Drawer (Left Hand)
8	Rail, Drawer (Right Hand)
10	WP3400832 Whirlpool Screw
11	Panel, Stainless
12	Handle
13	WP8274021 Whirlpool Oven Rack
14	WP9781235 Whirlpool Clip
15	WP8274022 Whirlpool Oven Rack
