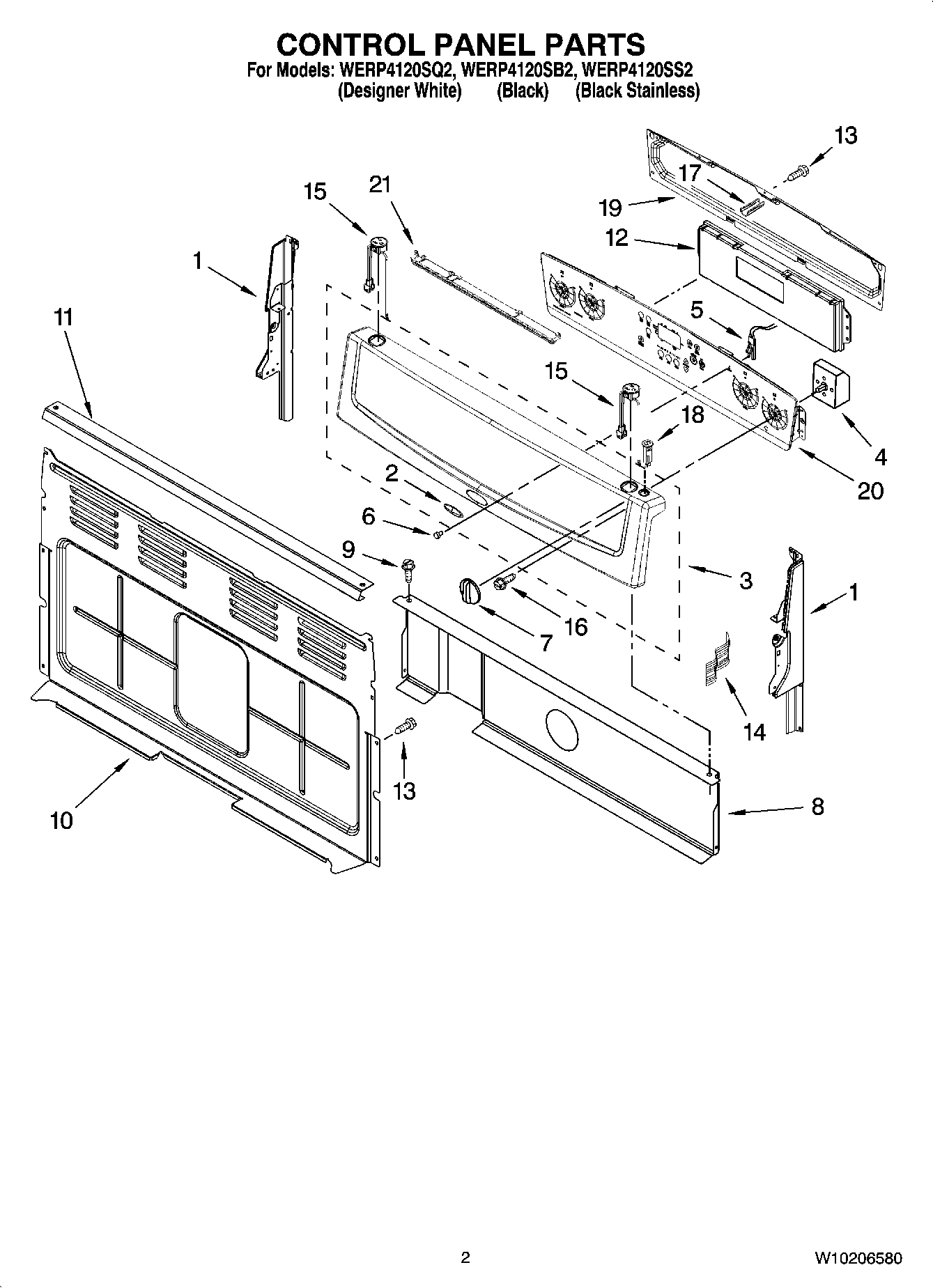

WERP4120SS2 02 – CONTROL PANEL PARTS

WERP4120SS2 02 – CONTROL PANEL PARTS

Written by

in

WERP4120SS2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219365 Whirlpool Panel Endcap
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
2Nameplate
3Panel, Control (Silver)
3Panel, Control (White)
3Panel, Control (Black)
4WP9758060 Whirlpool Oven Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7W10851285 Whirlpool Knob
7Knob, Infinite (4) (White)
8Shield, Heat
93196166 Whirlpool Screw
10Cover, Rear
11Bracket, Console
12Control, Range
13SCREW
14Cnnctr Cbl, Flex
15Receptacle (White)
15Receptacle (Architect Grey)
15Receptacle (Black)
16WP3400882 Whirlpool Screw
17WPL 9757490
18WP9757602 Whirlpool Breaker
18Breaker, 15Amp (Architect Grey)
18WP9757601 Whirlpool Breaker
19Cover, Rear (Console)
20Switch, Membrane (White)
20Switch, Membrane (Black)
21Re
