WERP4120SS2 04 – DRAWER & BROILER PARTS

WERP4120SS2 04 – DRAWER & BROILER PARTS

Written by

in

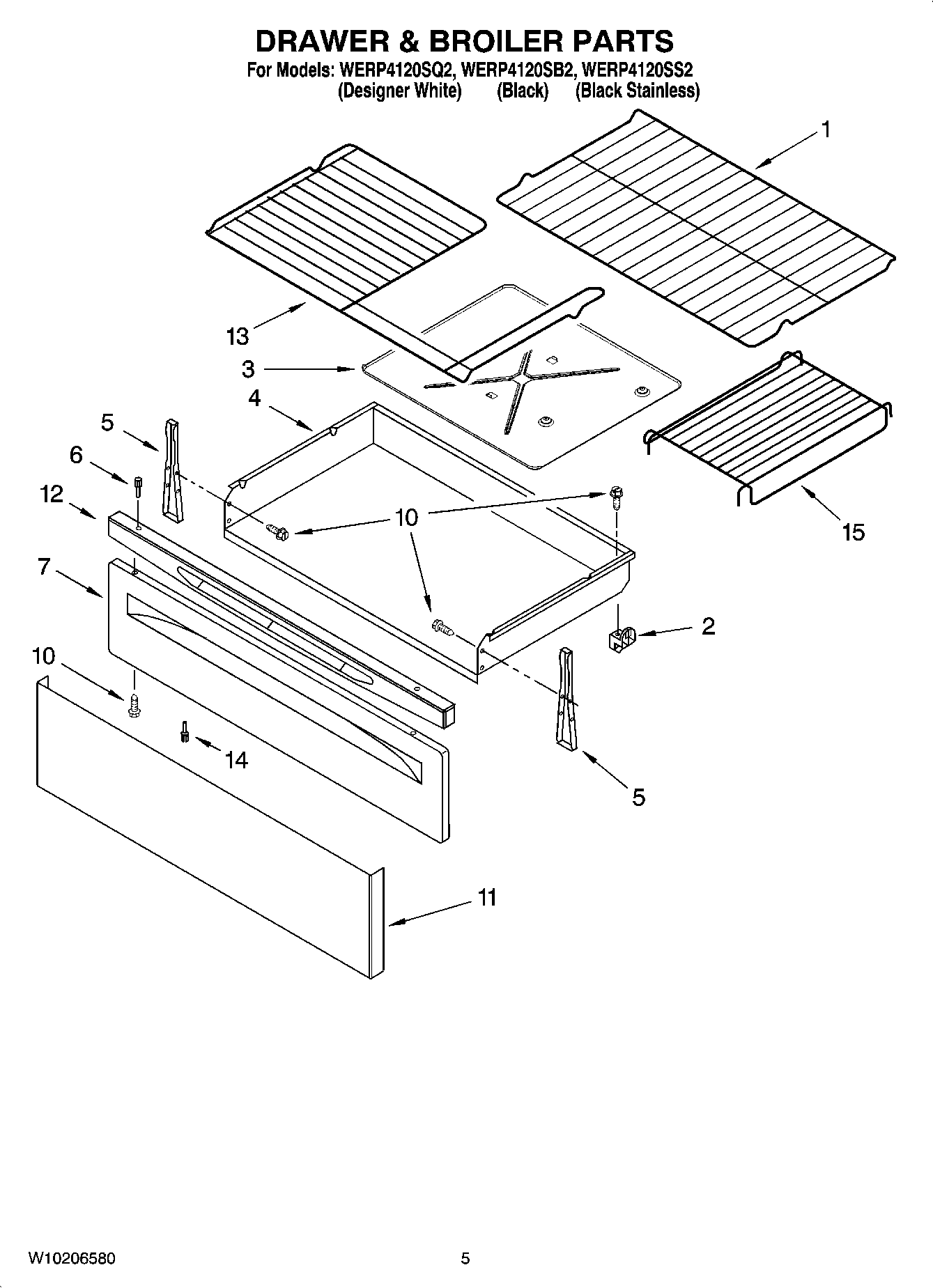

WERP4120SS2 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP8053334 Whirlpool Drawer Glide
3Heat Shield, Drawer
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230488 Whirlpool Drawer Panel
7W11219377 Whirlpool Drawer Panel
10WP3400832 Whirlpool Screw
11Panel, Stainless
12Handle
13WP8274021 Whirlpool Oven Rack
14WP9781235 Whirlpool Clip
15WP8274022 Whirlpool Oven Rack
