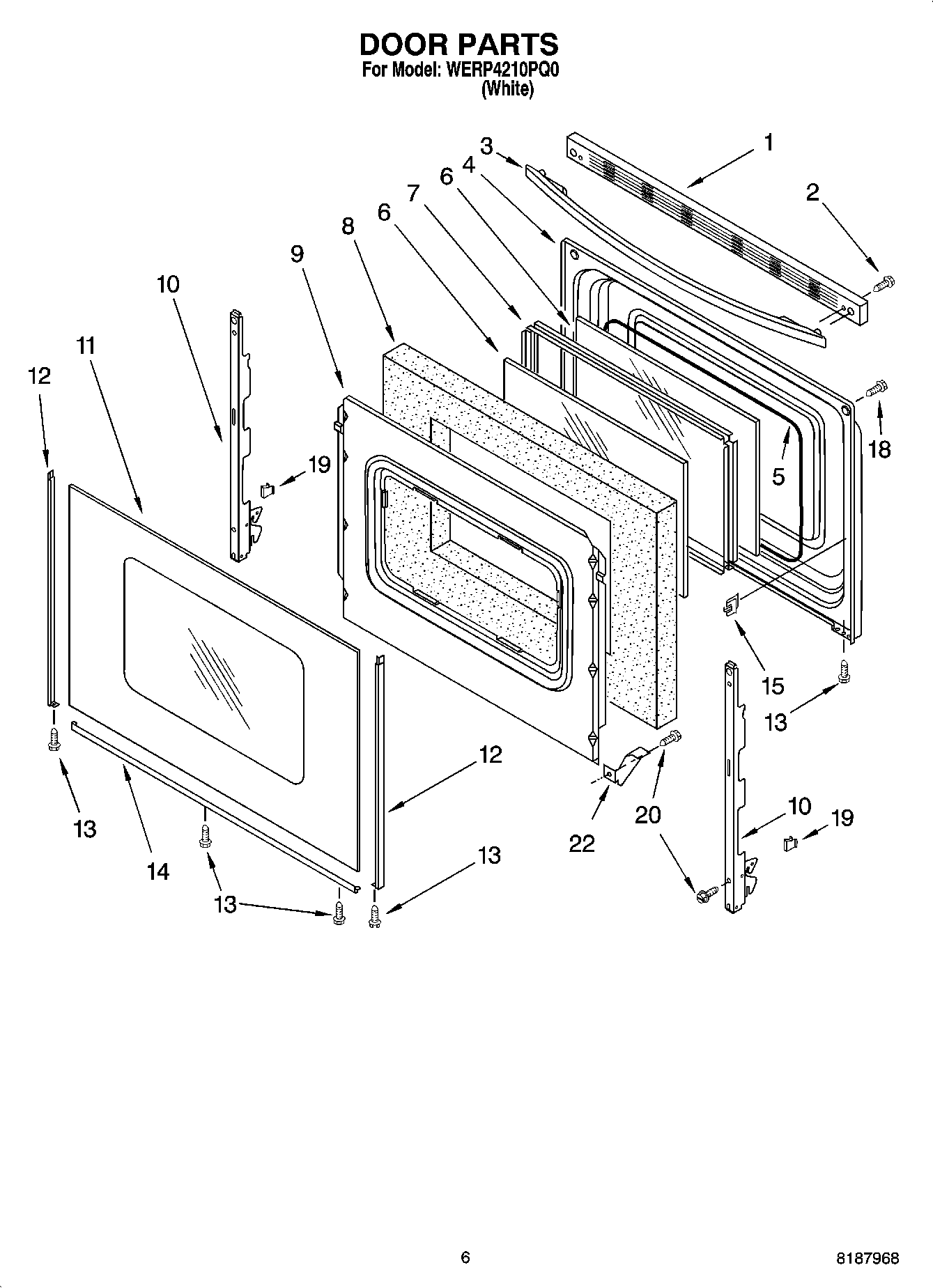

WERP4210PQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WERP4210PQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WERP4210PQ0 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI165464A
WPL 9756350
WPL 8316781
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL 9756779
WPL 8523718
WPL ARI165463A
WPL ARI165462A
WPL ARI165461A
WPL ARI165460A
WPL ARI165459A
WPL ARI165458A
WPL ARI165457A
WPL 9759777
WPL 9759776
WPL 9759582
WPL 9757584
WPL 9757288
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
350930 Whirlpool White Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
814381 Whirlpool Pin
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3400964 Whirlpool Oven Clip
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523172 Whirlpool Left Door Trim
12WP8523166 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
