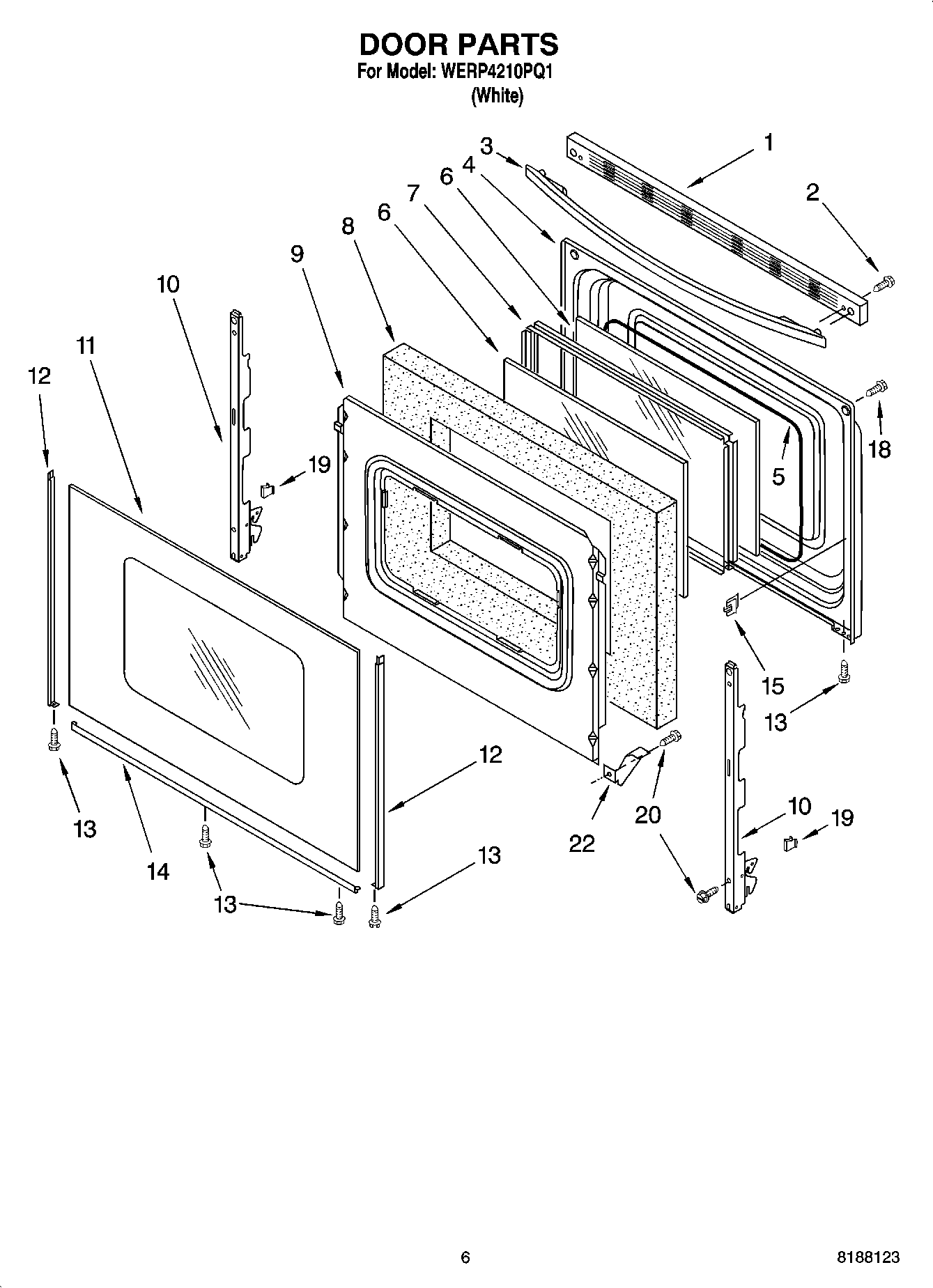

WERP4210PQ1 05 – DOOR PARTS, OPTIONAL PARTS

WERP4210PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

WERP4210PQ1 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI165472A
WP3196154 Whirlpool Screw Assembly
Grease
3184020 Whirlpool Oven Wire
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL 9759777
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
WPL ARI165473A
WPL 9756350
WPL ARI165471A
WPL ARI165470A
WPL ARI165469A
WPL ARI165468A
WPL ARI165467A
WPL ARI165466A
WPL 9759776
WPL 9759582
WPL 9757288
WPL 9758180
WPL 9756779
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3400964 Whirlpool Oven Clip
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
285006 Whirlpool Spray
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
4392901 Whirlpool Biscuit Spray Paint
W11447673 Whirlpool Range Tip Anchor
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
Wire (12 Ga. 150 c Black)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
4Liner, Door
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WP8053807 Whirlpool Oven Door Hinge
11WP8053834 Whirlpool Door Glass
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
22WP3196794 Whirlpool Glass Bracket
