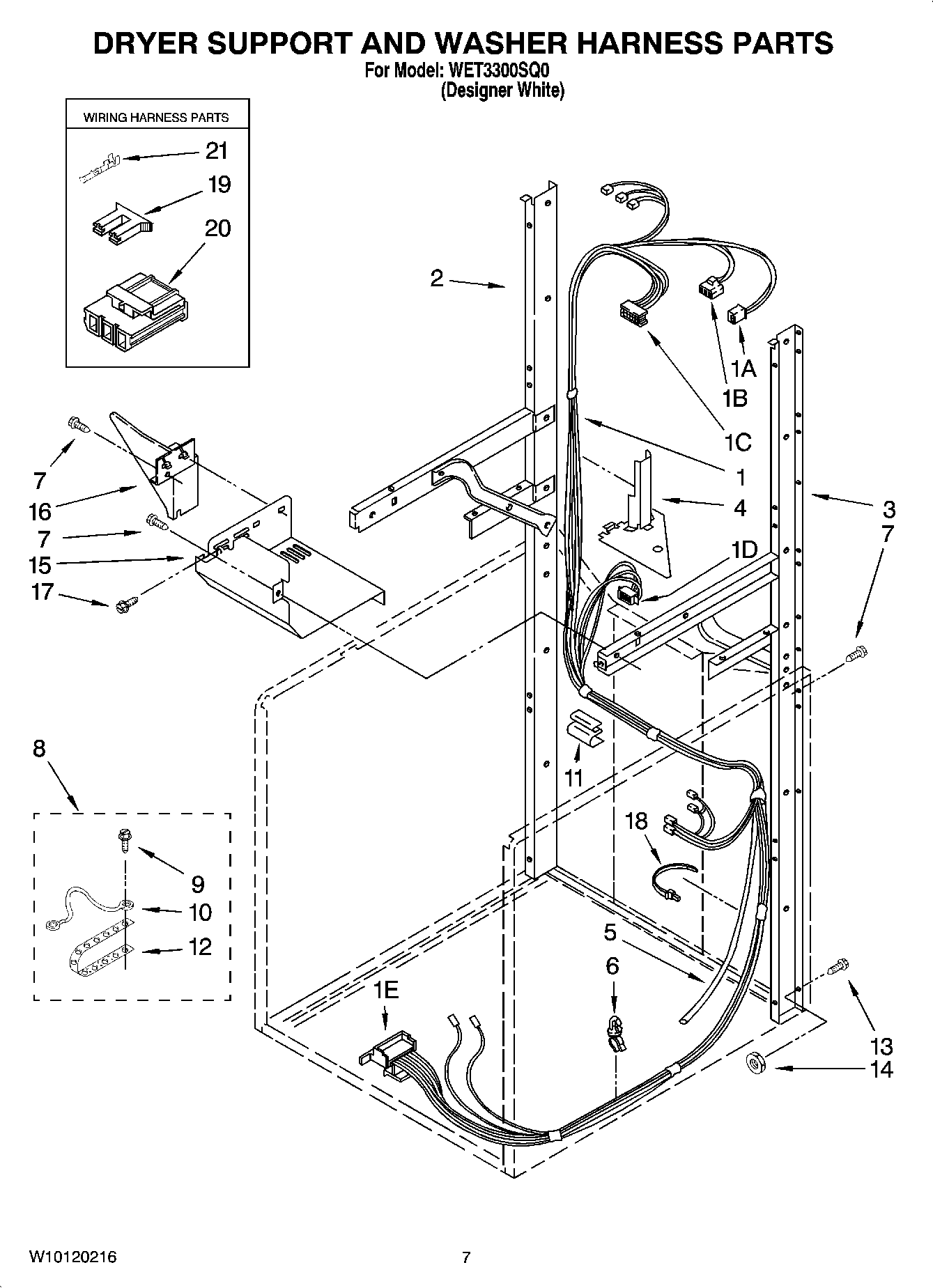

WET3300SQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

WET3300SQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

WET3300SQ0 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
1BBlock, Disconnect
1CW10876590 Whirlpool Connector
1DReceptacle, 3 Way
1EWP62505 Whirlpool Connector
1A3350130 Whirlpool Connector
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
8KIT, GROUNDING
9WP90767 Whirlpool Screw
10WPL 685449
11Protector, Harness
12Strap, Ground
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
15W11108181 Whirlpool Shield Assembly
16Shield, Thermostat
17WP308685 Whirlpool Microwave Screw
18Tie, Cable
193354925 Whirlpool Connector
20WP3360056 Whirlpool Connector
21WP596797 Whirlpool Terminal
21WP94614 Whirlpool Terminal
