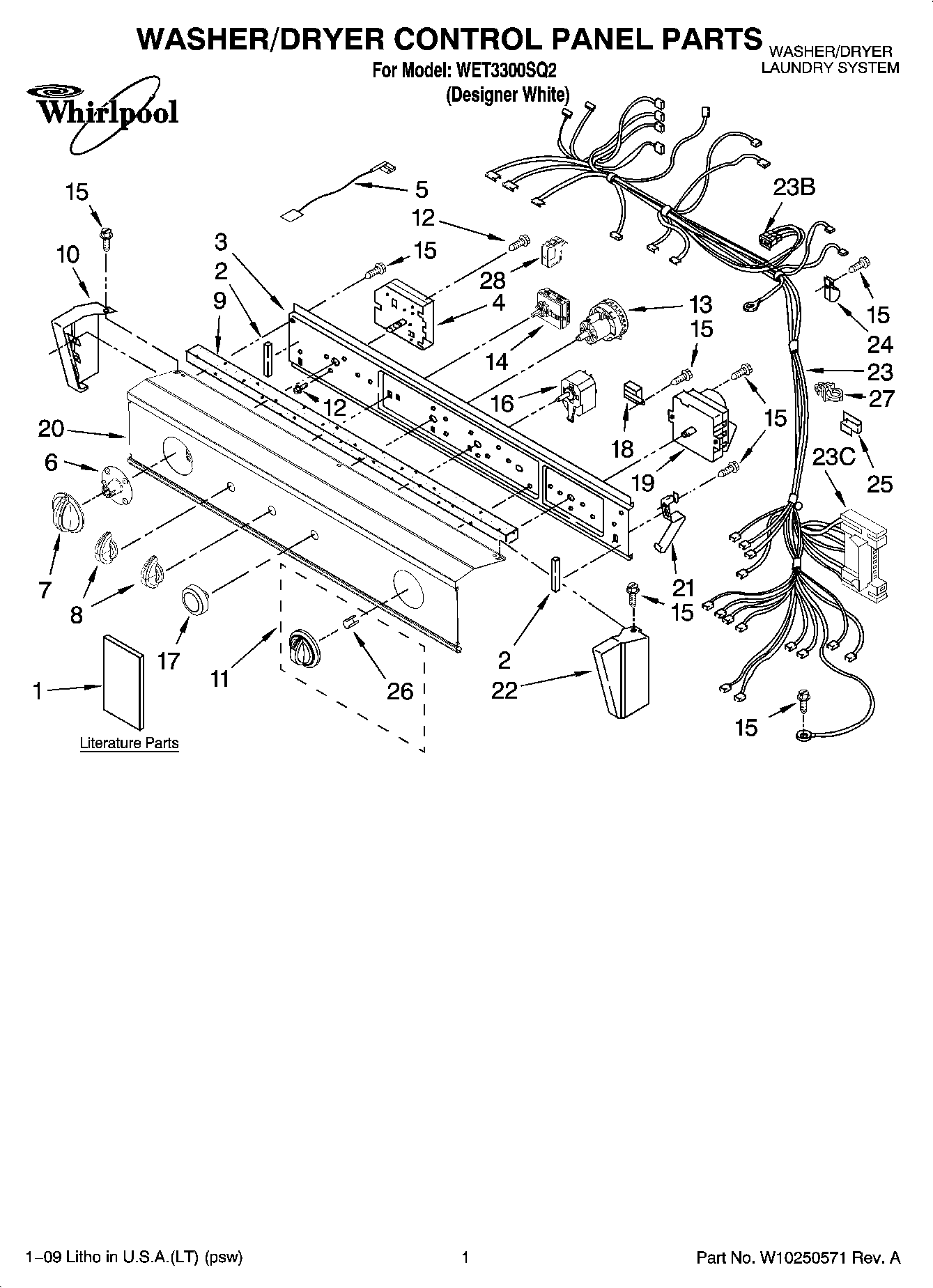

WET3300SQ2 01 – WASHER/DRYER CONTROL PANEL PARTS

WET3300SQ2 01 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

WET3300SQ2 01 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1Wiring Diagram
1Energy Guide
1Installation Instructions
1Use & Care Guide
1Sheet, Cycle Feature
23390688 Whirlpool Bumper Assembly
3W10732070 Whirlpool Bracket
4WPW10113761 Whirlpool Timer
5W10121648 Whirlpool Timer Jumper
6WP8566018 Whirlpool Dial Assembly
7Knob, Timer
8Knob, Control
98521965 Whirlpool Gasket
10End Cap (LH)
11WP8566061 Whirlpool Knob
12W10915367 Whirlpool Screw Assembly
13Switch, Pressure
14W11103599 Whirlpool Temperature Switch
15WP90767 Whirlpool Screw
16WP3404233 Whirlpool Dryer Starter Switch
17WP8566073 Whirlpool Appliance Knob
18WP694419 Whirlpool Buzzer Adjuster
19WPW10113804 Whirlpool Timer Assembly
20Panel, Control
213389453 Whirlpool Hinge Assembly
22End Cap (RH)
23C3395683 Whirlpool Connector
23BReceptacle,
23W10139461 Whirlpool Wire Harness
247111P002-60 Whirlpool Clamp
25Clip, Harness (2)
26WP8536939 Whirlpool Spring Clip
272219077 Whirlpool Refrigerator Clip
28W10210799 Whirlpool Clip
