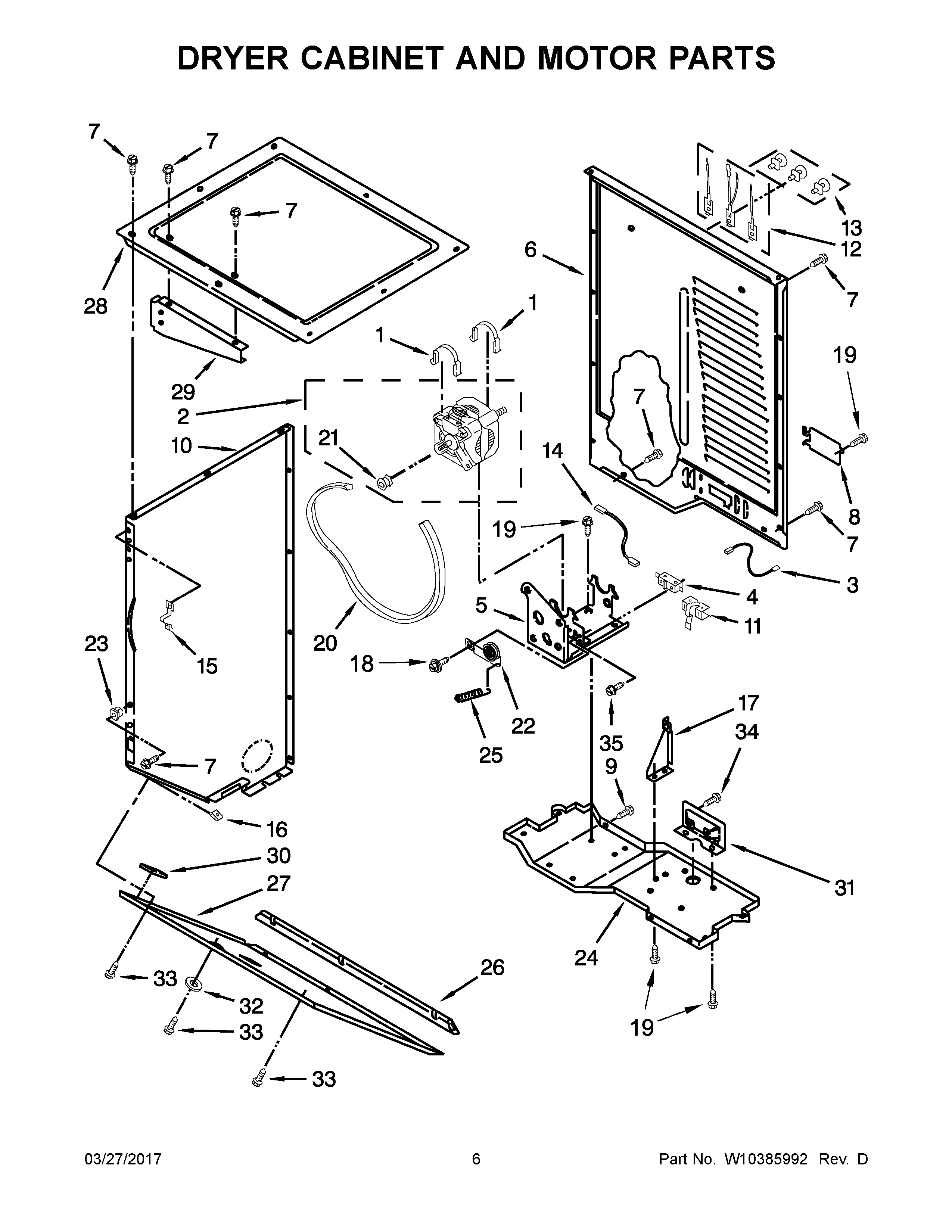

WET3300XQ0 04 – DRYER CABINET AND MOTOR PARTS

WET3300XQ0 04 – DRYER CABINET AND MOTOR PARTS

Written by

in

WET3300XQ0 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1WP660658 Whirlpool Clamp
33398948 Whirlpool Wire
4279782 Whirlpool Lid Switch
5W11107903 Whirlpool Bracket
6Panel, Rear
7SCREW
8BRACKET, TERMINAL BLOCK
9W10850756 Whirlpool Screw
103389264 Whirlpool Panel Assembly
10A3389256 Whirlpool Panel
11WP8066120 Whirlpool Lever Assembly
12279318 Whirlpool Terminal
13279393 Whirlpool Terminal Block Screw and Nut Kit
14W10167612 Whirlpool Wire
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
18WP3389420 Whirlpool Screw
19WP3390631 Whirlpool Screw
20661570V Whirlpool Dryer Drum Belt
21279811 Whirlpool Dryer Drive Motor
22WPW10547294 Whirlpool Idler Pulley
23WP692400 Whirlpool Nut
24W10360901 Whirlpool Dryer Base
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
273389272 Whirlpool Panel
28Top, Dryer
293390722 Whirlpool Shield Assembly
303389682 Whirlpool Spacer
313393721 Whirlpool Bracket
32WP3389431 Whirlpool Bumper Assembly
33WP693304 Whirlpool Screw
34WP273556 Whirlpool Screw
35WP98129 Whirlpool Screw
