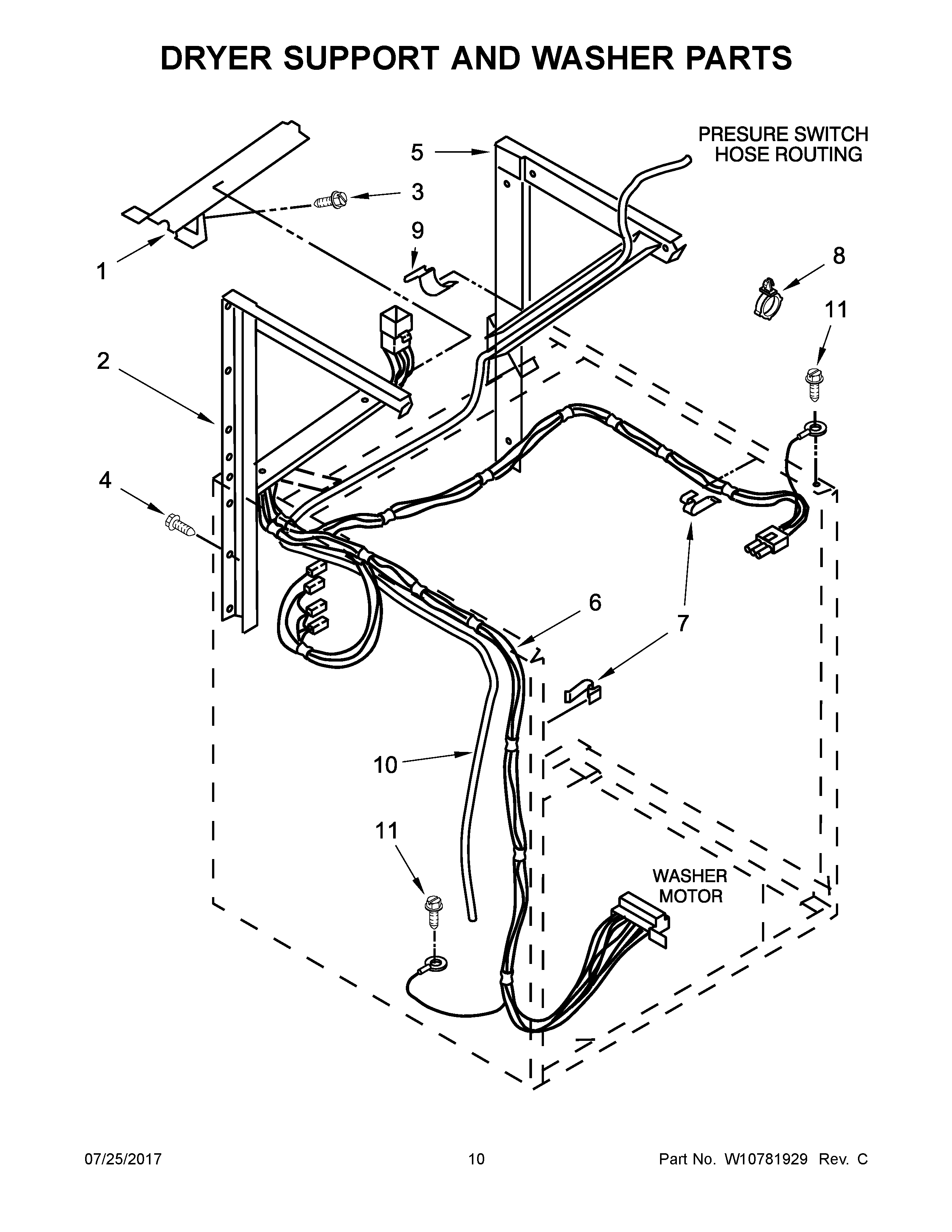

WET4024EW0 06 – DRYER SUPPORT AND WASHER PARTS

WET4024EW0 06 – DRYER SUPPORT AND WASHER PARTS

Written by

in

WET4024EW0 06 – DRYER SUPPORT AND WASHER PARTS

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4W11676450 Whirlpool Screw
5W11174024 Whirlpool Support
6W10714844 Whirlpool Wire Harness
78528351 Whirlpool Clip
88559320 Whirlpool Clip
9WP90016 Whirlpool Clip
10W10834213 Whirlpool Hose
11WP3351614 Whirlpool Screw
