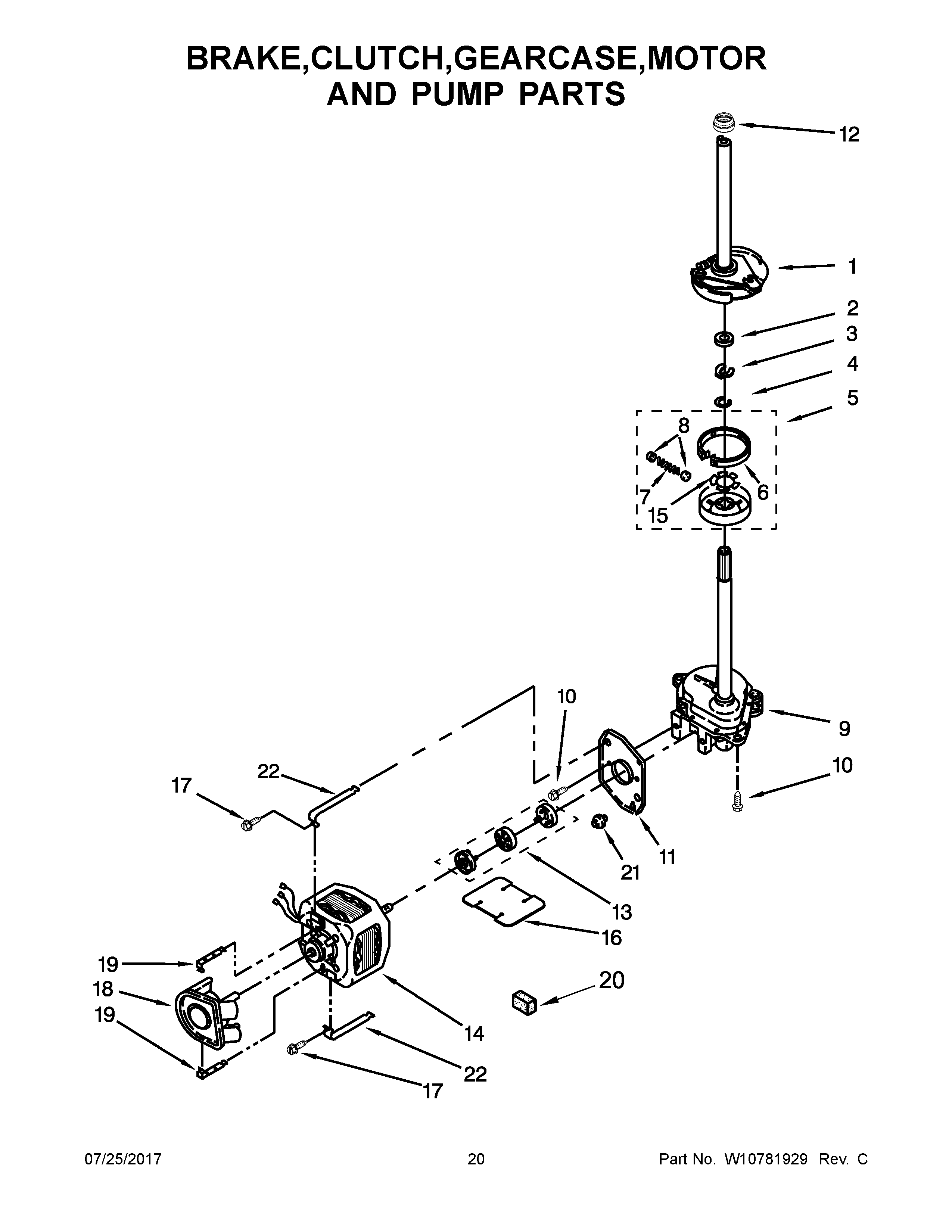

WET4024EW0 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

WET4024EW0 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WET4024EW0 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
7WP8559387 Whirlpool Spring
8WP62646 Whirlpool Cap
93360629 Whirlpool Washer Gearcase Transmission
10WP3400516 Whirlpool Screw
11WP62611 Whirlpool Plate
12WP8577374 Whirlpool Seal Shaft
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP661600 Whirlpool Drive Motor
15Clip, Anti-Rattle
16WP3946532 Whirlpool Shield
17WP273556 Whirlpool Screw
18WP3363394 Whirlpool Washer Drain Pump
19WP8546127 Whirlpool Retainer Clip
203350013 Whirlpool Foam Seal
21WP62691 Whirlpool Grommet
22WPW10086010 Whirlpool Motor Retainer Clip
