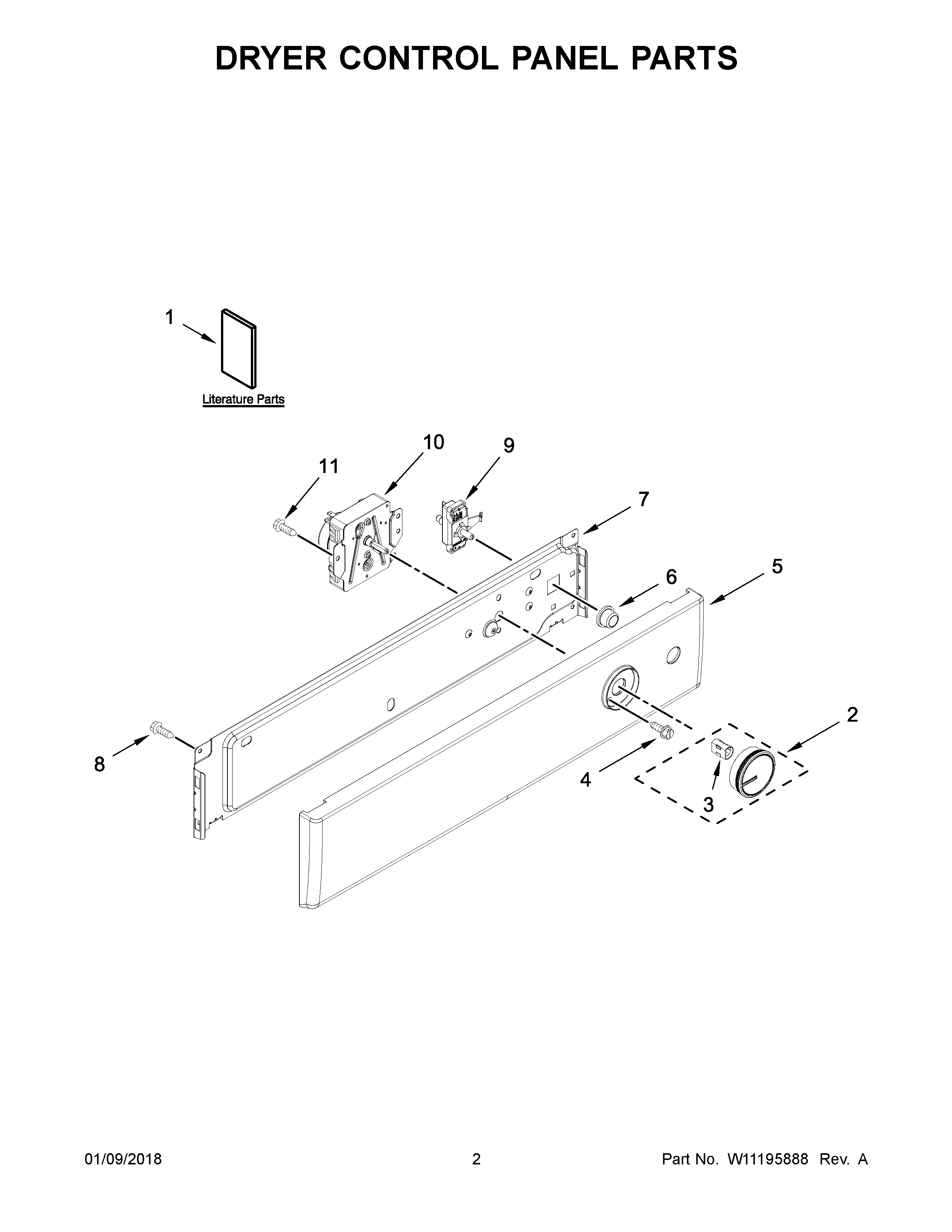

WET4024HW0 02 – DRYER CONTROL PANEL PARTS

WET4024HW0 02 – DRYER CONTROL PANEL PARTS

Written by

in

WET4024HW0 02 – DRYER CONTROL PANEL PARTS

Products

PositionProduct
1CENERGY GUIDE
1BWIRING DIAGRAM
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W10756270 Whirlpool Dryer Timer Knob
3WP688805 Whirlpool Spring Clip
4W10141518 Whirlpool Refrigerator Screw
5W11174023 Whirlpool Console Assembly
6W11093211 Whirlpool Pushbutton
7BRACKET, CONSOLE
8SCREW
9WP3977456 Whirlpool Start Switch
10W10854240 Whirlpool Laundry Center Dryer Timer
11WP90767 Whirlpool Screw
