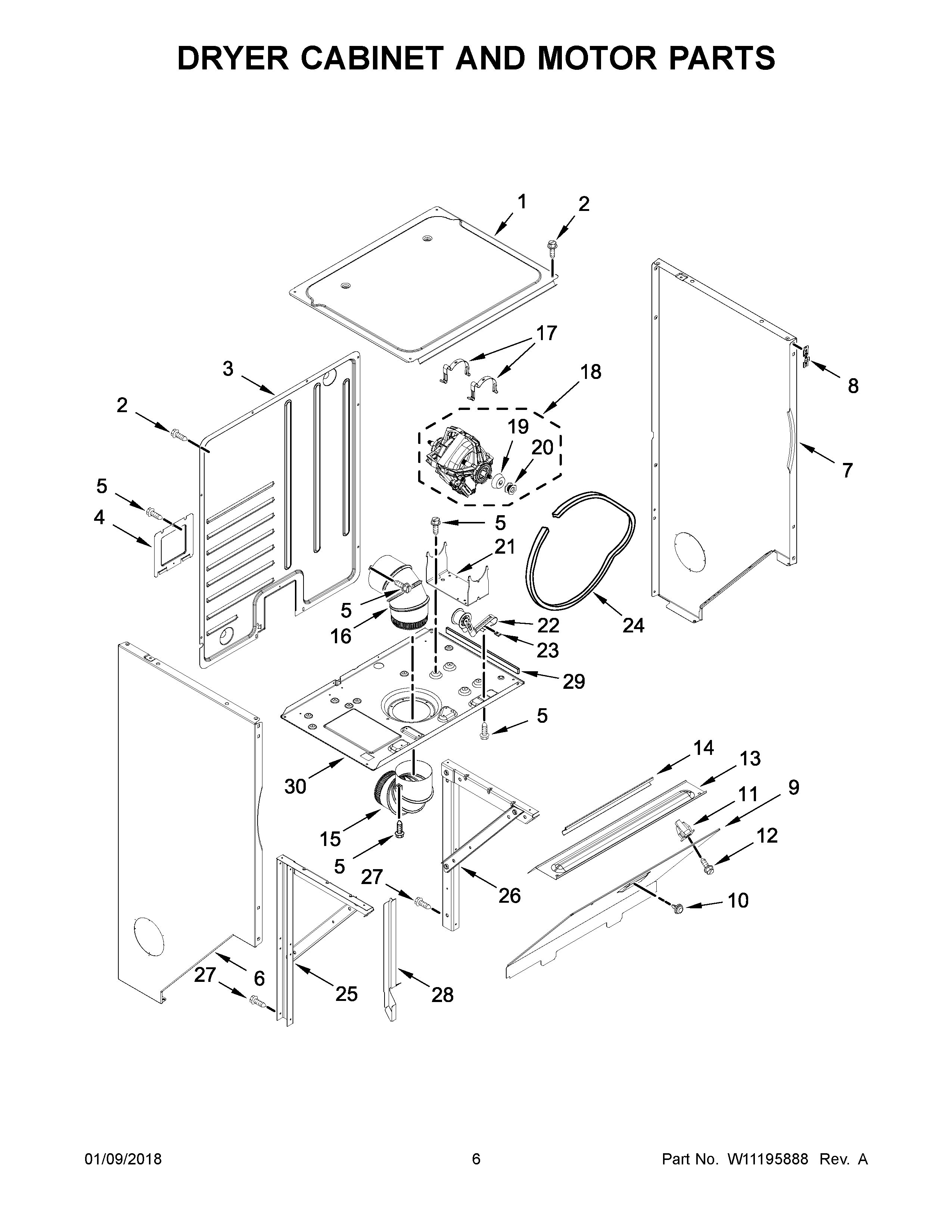

WET4024HW0 04 – DRYER CABINET AND MOTOR PARTS

WET4024HW0 04 – DRYER CABINET AND MOTOR PARTS

Written by

in

WET4024HW0 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1WP692641 Whirlpool Dryer Top Assembly
2SCREW
3PANEL, REAR
4Cover, Terminal Block
5WP3390631 Whirlpool Screw
6WP3402293 Whirlpool Panel Assembly
7WP3402287 Whirlpool Panel
8W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
9W11205493 Whirlpool Panel
108572266 Whirlpool Bumper Assembly
11WP692400 Whirlpool Nut
12WP693304 Whirlpool Screw
13W11174022 Whirlpool Closure
14686770 Whirlpool Support Bracket
153399603 Whirlpool Elbow
16Elbow, Upper
17CLAMP
18WPW10448901 Whirlpool Drive Motor
19WP3393657 Whirlpool Belt Retainer
208066051 Whirlpool Motor Pulley
21696541 Whirlpool Base
22WP691366 Whirlpool Dryer Idler Pulley Assembly
23WP692771 Whirlpool Nut
243394652 Whirlpool Drum Belt
25W11174025 Whirlpool Support Assembly
26W11174024 Whirlpool Support
27W11676450 Whirlpool Screw
28BRACKET, REAR HARNESS COVER
29PAD
303399632 Whirlpool Dryer Base
