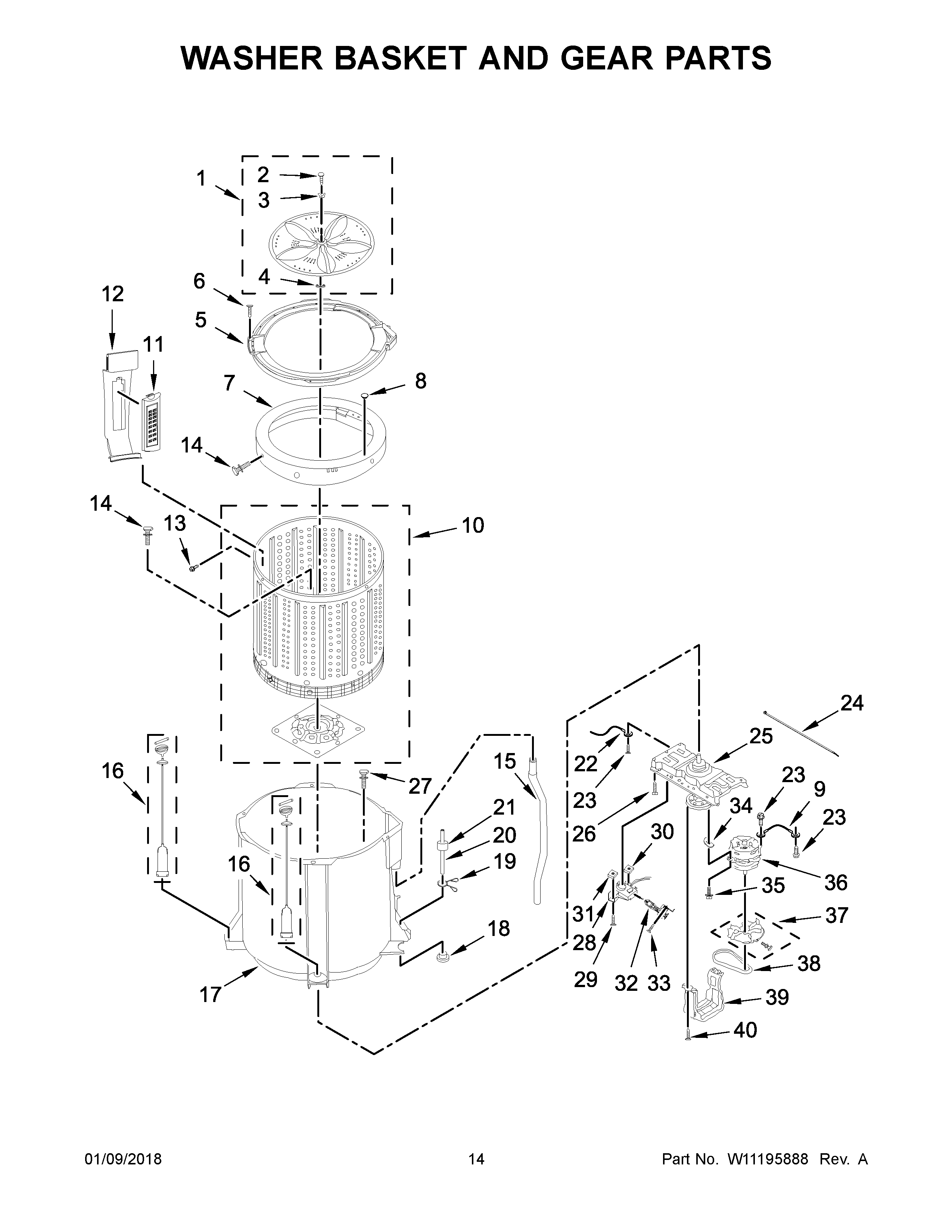

WET4024HW0 08 – WASHER BASKET AND GEAR PARTS

Products

Position	Product
1	W10882404 Whirlpool Washplate
2	W11577483 Whirlpool Screw Kit
4	W10882661 Whirlpool Washer
5	RING-TUB
6	W10869499 Whirlpool Screw
7	TUB, ADAPTER
8	PLUG, HOLE
9	WIRE, GROUND (MOTOR)
10	W11178811 Whirlpool Basket
11	W11684623 Whirlpool Washer Filter
12	RETAINER, LINT FILTER
13	W11296992 Whirlpool Screw
14	SCREW
15	W11209824 Whirlpool Tube
16	W11174583 Whirlpool Suspension Assembly
17	W10882132 Whirlpool Outer Tub
18	W11178808 Whirlpool Cap
19	W10883610 Whirlpool Hose Clamp
20	W10882407 Whirlpool Hose Assembly
21	W10882410 Whirlpool Sleeve
22	WIRE, GROUND
23	SCREW
24	W10883819 Whirlpool Tie Wire
25	W11665996 Whirlpool Gearcase Assembly
26	W10883787 Whirlpool Screw Assembly
27	W10883753 Whirlpool Screw
28	W11614637 Whirlpool Actuator Assembly
29	W10883805 Whirlpool Screw
30	W11178899 Whirlpool Cam Brake
31	W11178900 Whirlpool Brake Cam
32	W10883809 Whirlpool Bracket
33	W10882000 Whirlpool Screw
34	W10883812 Whirlpool Isolator
35	W10883817 Whirlpool Screw
36	W11189163 Whirlpool Drive Motor
37	W10882138 Whirlpool Pulley Assembly
38	W11676809 Whirlpool Belt
39	W10882148 Whirlpool Bracket
40	W10883826 Whirlpool Screw
