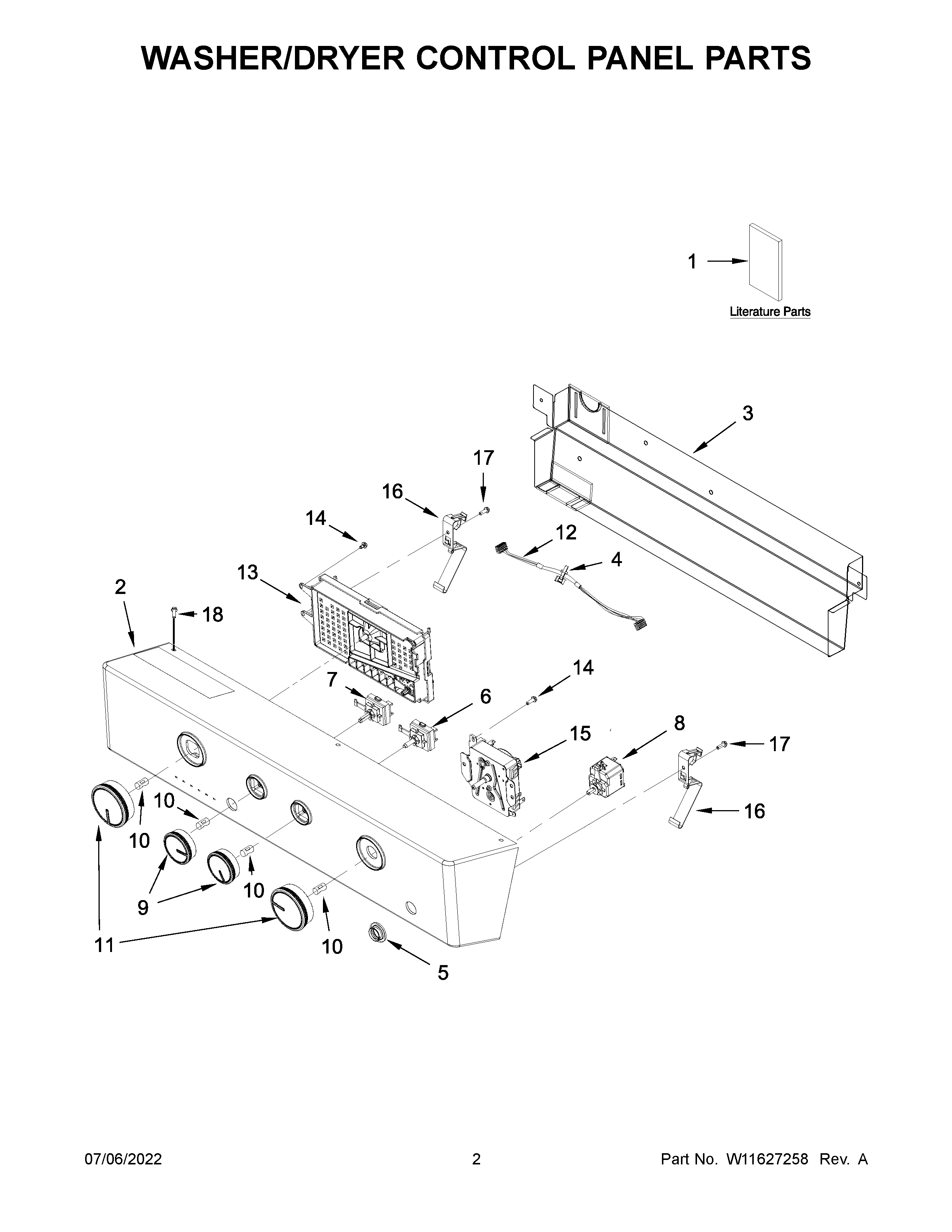

WET4027HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

WET4027HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

WET4027HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1CENERGY GUIDE
1AINSTALLATION INSTRUCTIONS
1OWNERS MANUAL
1BTECH SHEET
2W11367045 Whirlpool Control Panel
3W11040441 Whirlpool Bracket
4W10210799 Whirlpool Clip
5W11049351 Whirlpool Button
6W10859568 Whirlpool Cycle Switch
7W11168256 Whirlpool Cycle Switch
8WPW10420741 Whirlpool Dryer Start Switch
10WP688805 Whirlpool Spring Clip
11W10756270 Whirlpool Dryer Timer Knob
12W10694669 Whirlpool Wire Harness
13W11629601-includeCORE Whirlpool W11629601 Washer Electronic Control Board + Core
14WP90767 Whirlpool Screw
15W10854240 Whirlpool Laundry Center Dryer Timer
163389453 Whirlpool Hinge Assembly
17WP9740848 Whirlpool Dishwasher Screw
18W10636208 Whirlpool Screw
