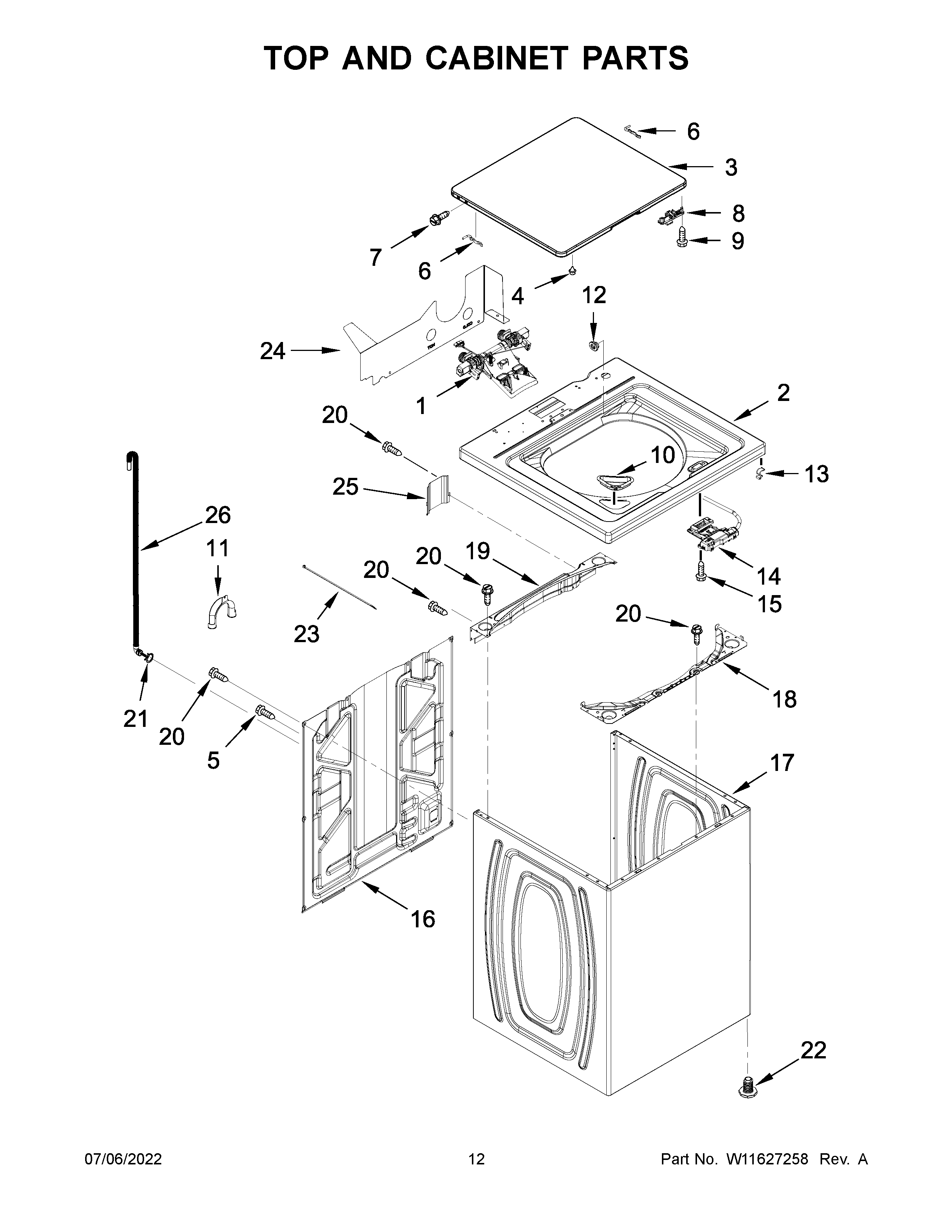

WET4027HW2 07 – TOP AND CABINET PARTS

WET4027HW2 07 – TOP AND CABINET PARTS

Written by

in

WET4027HW2 07 – TOP AND CABINET PARTS

Products

PositionProduct
1VALVE
2W11176111 Whirlpool Top
3W10860912 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8W10837741 Whirlpool Washer Lid Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11WPW10280024 Whirlpool Retainer
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH
15W11568617 Whirlpool Screw
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20W11685943 Whirlpool Screw
21WP356138 Whirlpool Hose Clamp
22W11735636 Whirlpool Leveling Feet
23WPW10339879 Whirlpool Wire Tie
24HARNESS COVER, REAR INLET
25W10676061 Whirlpool Cover Assembly
26W11281268 Whirlpool Hose
