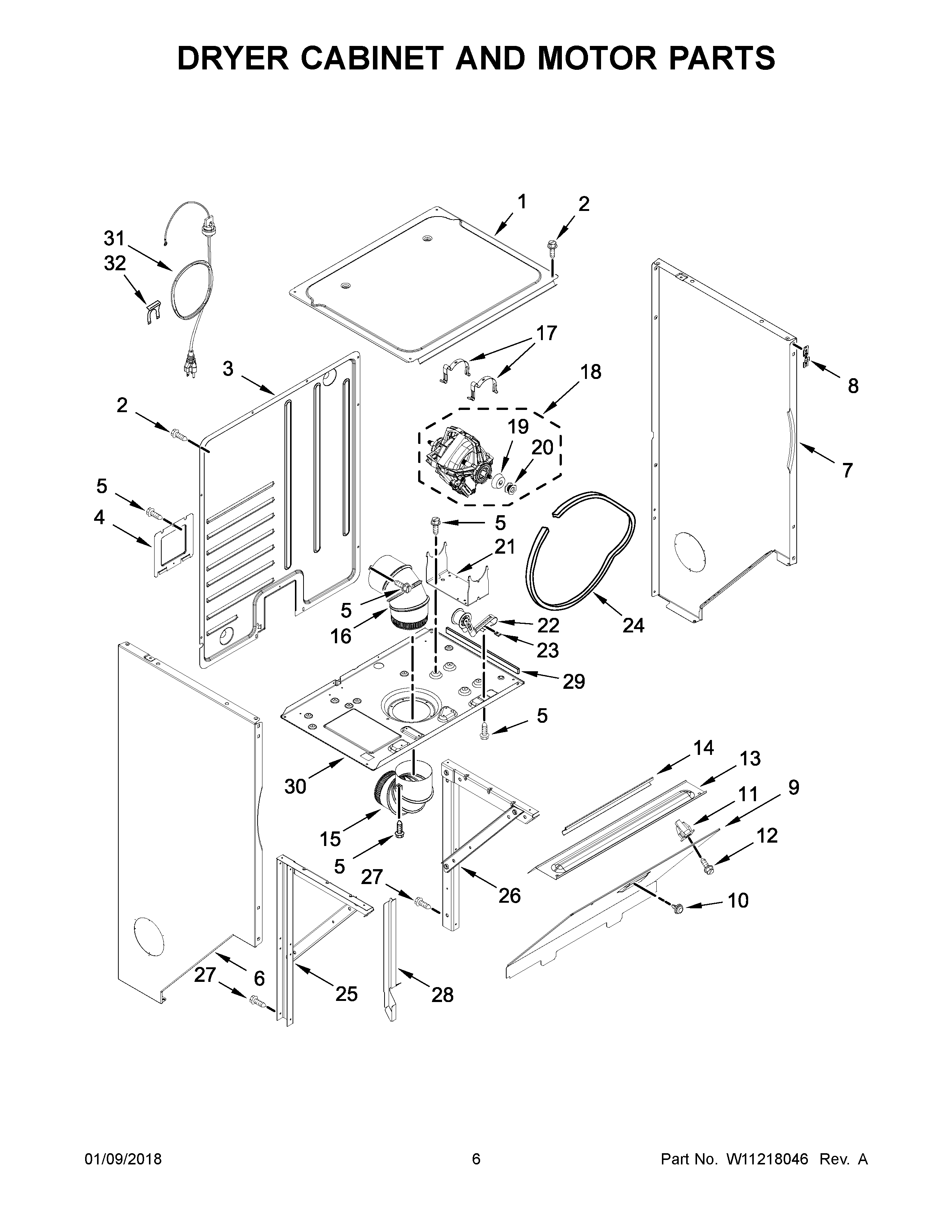

WET4124HW0 04 – DRYER CABINET AND MOTOR PARTS

Products

Position	Product
1	WP692641 Whirlpool Dryer Top Assembly
2	SCREW
3	PANEL, REAR
4	Cover, Terminal Block
5	WP3390631 Whirlpool Screw
6	WP3402293 Whirlpool Panel Assembly
7	WP3402287 Whirlpool Panel
8	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
9	W11205493 Whirlpool Panel
10	8572266 Whirlpool Bumper Assembly
11	WP692400 Whirlpool Nut
12	WP693304 Whirlpool Screw
13	W11174022 Whirlpool Closure
14	686770 Whirlpool Support Bracket
15	3399603 Whirlpool Elbow
16	Elbow, Upper
17	CLAMP
18	WPW10448901 Whirlpool Drive Motor
19	WP3393657 Whirlpool Belt Retainer
20	8066051 Whirlpool Motor Pulley
21	696541 Whirlpool Base
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	3394652 Whirlpool Drum Belt
25	W11174025 Whirlpool Support Assembly
26	W11174024 Whirlpool Support
27	W11676450 Whirlpool Screw
28	BRACKET, REAR HARNESS COVER
29	PAD
30	3399632 Whirlpool Dryer Base
31	W11102173 Whirlpool Power Cord
32	W11712577 Whirlpool Clip
