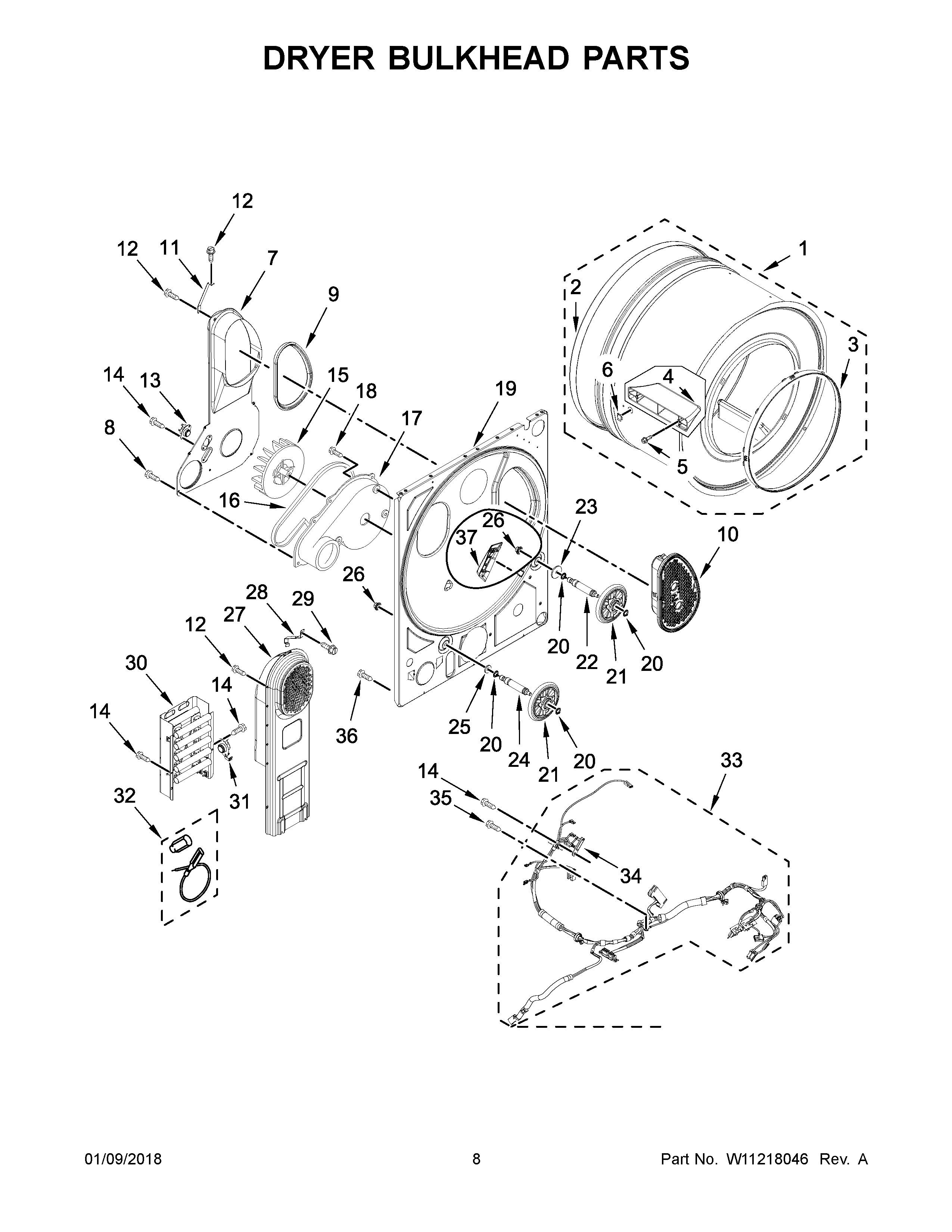

WET4124HW0 05 – DRYER BULKHEAD PARTS

Products

Position	Product
1	3391834 Whirlpool Drum
2	SEAL
3	WP3394508 Whirlpool Bearing Ring
4	685207 Whirlpool Dryer Baffle
5	W10853898 Whirlpool Screw
6	8066086 Whirlpool Plug
7	696529 Whirlpool Air Duct
9	SEAL
10	COVER, LINT SCREEN OUTLET
11	345396 Whirlpool Clip
12	SCREW
13	WP694674 Whirlpool Cycling Thermostat
14	WP90767 Whirlpool Screw
15	WP696426 Whirlpool Wheel
16	8066094 Whirlpool Seal
17	WP696418 Whirlpool Fan Scroll
18	WP3390631 Whirlpool Screw
19	279848 Whirlpool Bulkhead
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	349241T Whirlpool Dryer Drum Support Roller Kit
22	SHAFT SUPPORT ROLLER DRYER
23	WP3388703 Whirlpool Washer
24	SHAFT SUPPORT ROLLER DRYER
25	WP348197 Whirlpool Washer Assembly
26	W11229607 Whirlpool Nut
27	WP3401380 Whirlpool Box
28	279771 Whirlpool Clip
29	WP489463 Whirlpool Refrigerator Screw
30	WP3403591 Whirlpool Element
31	WP3404153 Whirlpool Thermostat
32	279457 Whirlpool Dryer Heating Element Wide Spade Connection
33	W11090773 Whirlpool Washer Wire Harness
34	WP3392519 Whirlpool Dryer Thermal Fuse
35	W10850756 Whirlpool Screw
36	WP308685 Whirlpool Microwave Screw
37	SENSOR KIT
