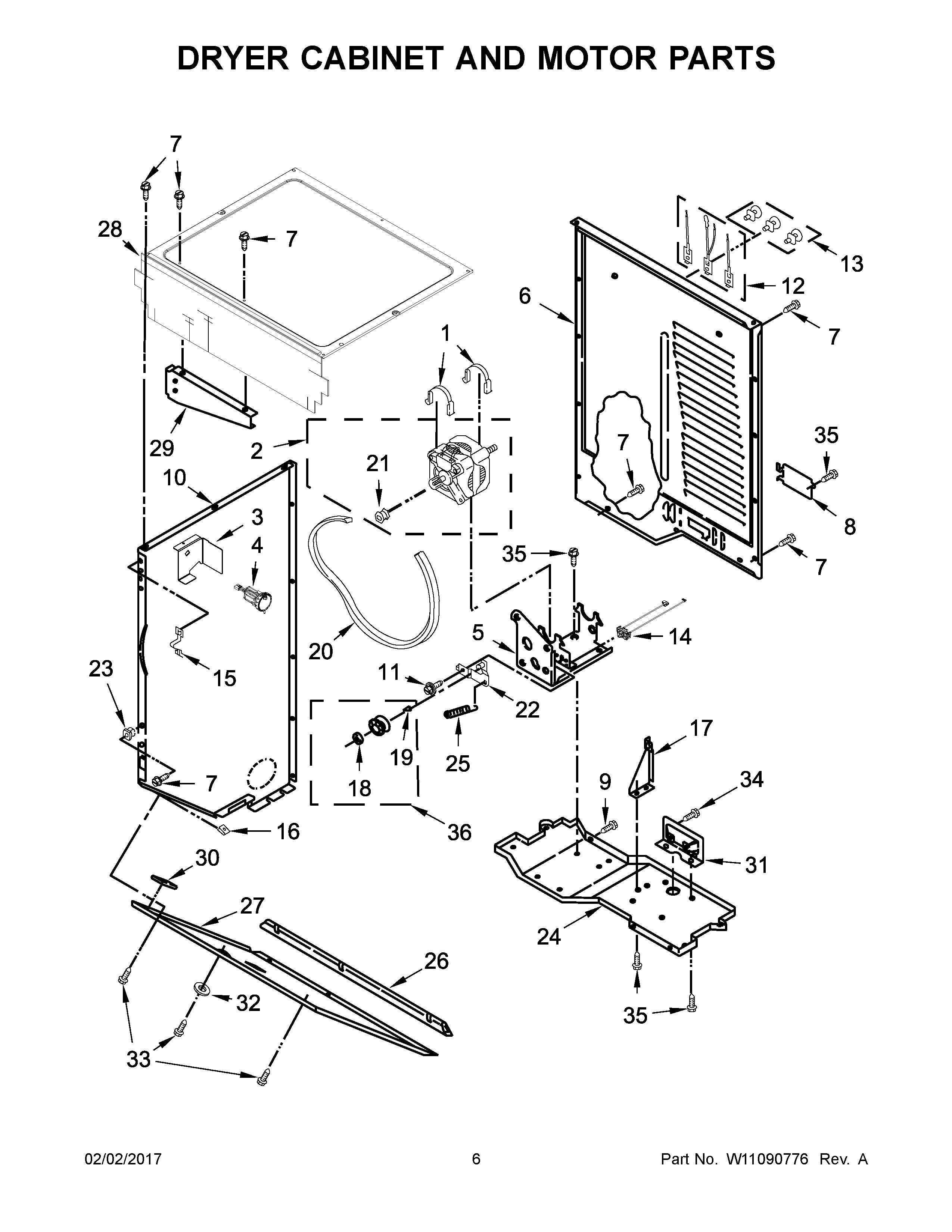

WETLV27FW0 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1CLAMP
2W11094983 Whirlpool Drive Motor
3BRACKET, PRESSURE SWITCH
4W11129441 Whirlpool Washer Water Level Switch
5W10803218 Whirlpool Bracket Assembly
6W10892491 Whirlpool Rear Panel
7SCREW
8BRACKET, TERMINAL BLOCK
9W10850756 Whirlpool Screw
10A3389256 Whirlpool Panel
103389264 Whirlpool Panel Assembly
11WP3389420 Whirlpool Screw
12279318 Whirlpool Terminal
13279393 Whirlpool Terminal Block Screw and Nut Kit
14W11092677 Whirlpool Switch
153389231 Whirlpool Clip Front Panel
16WP98234 Whirlpool Nut
173391639 Whirlpool Bracket Assembly
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19WPW10121334 Whirlpool Washer
203389682 Whirlpool Spacer
21W10918858 Whirlpool Motor Pulley
22BRACKET, IDLER
23WP692400 Whirlpool Nut
24285459 Whirlpool Washer Base
25WPW10446781 Whirlpool Spring
263389683 Whirlpool Cover Assembly
273389272 Whirlpool Panel
28TOP, DRYER (ASSEMBLY)
293390722 Whirlpool Shield Assembly
30341241 Whirlpool Dryer Drum Belt
313393721 Whirlpool Bracket
32WP3389431 Whirlpool Bumper Assembly
33WP693304 Whirlpool Screw
34WP273556 Whirlpool Screw
35WP3390631 Whirlpool Screw
36279640 Whirlpool Dryer Idler Pulley Kit
