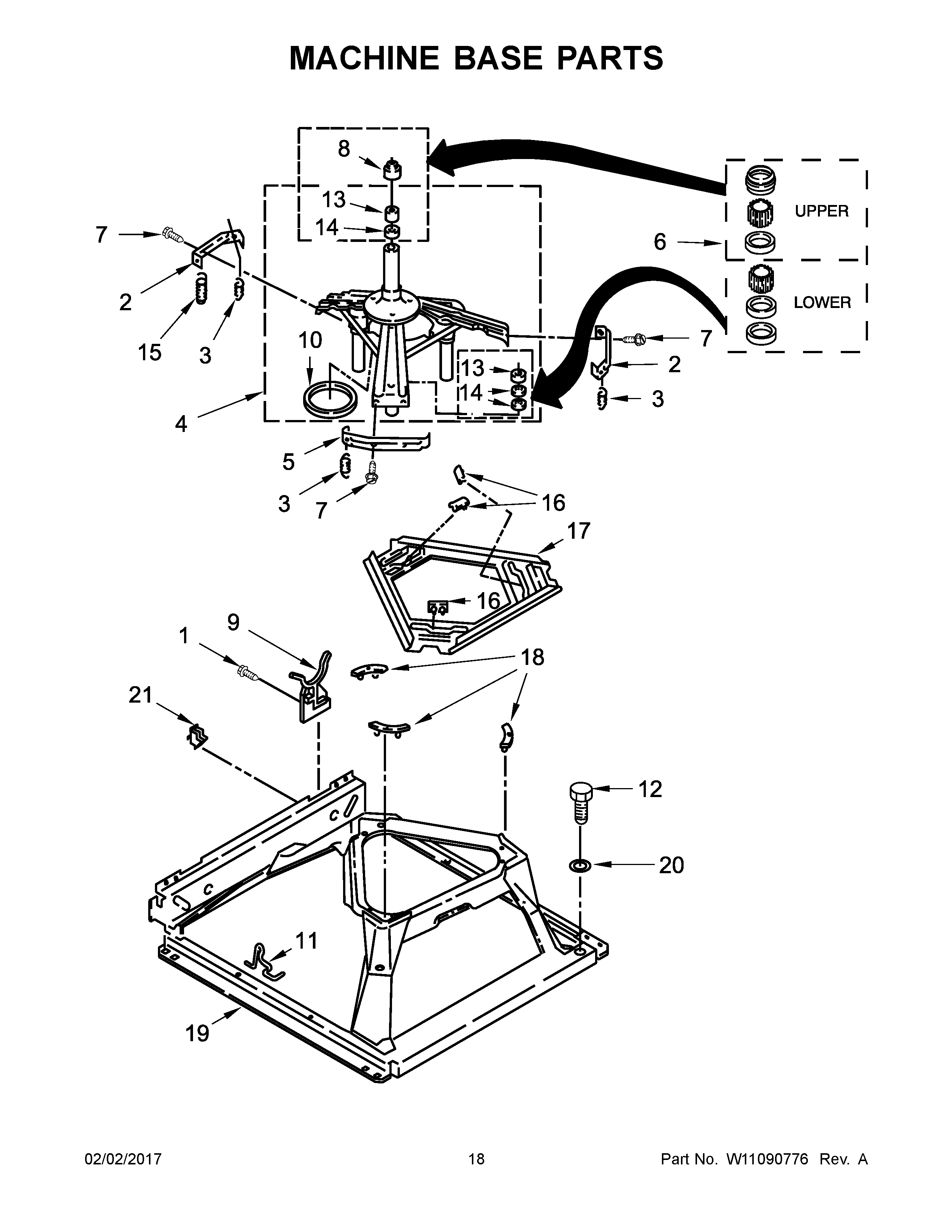

WETLV27FW0 10 – MACHINE BASE PARTS

WETLV27FW0 10 – MACHINE BASE PARTS

Written by

in

WETLV27FW0 10 – MACHINE BASE PARTS

Products

PositionProduct
1SCREW
2WP64067 Whirlpool Bracket
3WP63907 Whirlpool Washer Suspension Spring
4Support & Brake, Tub
5Bracket, Spring Outer (L.F.)
6285203 Whirlpool CP Bearing
7W10846509 Whirlpool Screw
8WP8577376 Whirlpool Seal
93350506 Whirlpool Retainer Clip
10WP63134 Whirlpool Ring
11WPW10145155 Whirlpool Retainer
12WP3400501 Whirlpool Screw
13WP8546455 Whirlpool Bearing
14W11095997 Whirlpool Seal
15WPW10250667 Whirlpool Washer Suspension Spring
16285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17WP3946509 Whirlpool Skate Plate
18285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19Base Assembly (Includes Illus. 11 & 18)
20WASHER
213349749 Whirlpool Restrainer
