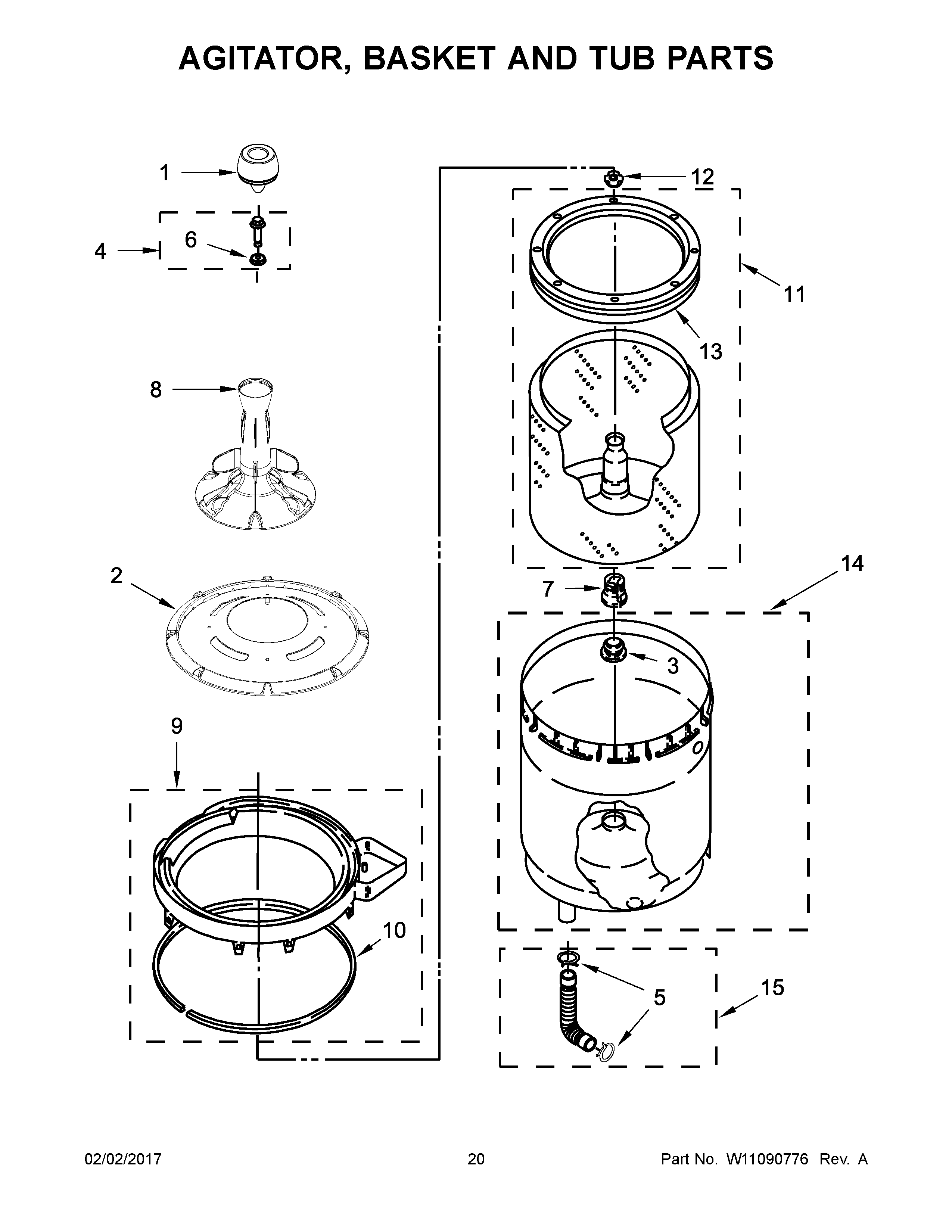

WETLV27FW0 11 – AGITATOR, BASKET AND TUB PARTS

WETLV27FW0 11 – AGITATOR, BASKET AND TUB PARTS

Written by

in

WETLV27FW0 11 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W11085570 Whirlpool Shield
3W10814296 Whirlpool Washer Center Post Seal Gasket
4WP358237 Whirlpool Agitator Bolt
5WP616099 Whirlpool Clamp
6WP3949550 Whirlpool Gasket Assembly
7WP389140 Whirlpool Drive Block or Bell
8W10881748 Whirlpool Agitator
9W10880720 Whirlpool Tub Ring
10WP3976308 Whirlpool Tub Seal
11Basket
12WP21366 Whirlpool Spanner Nut
13WP387240 Whirlpool Balance Ring
14WP3349292 Whirlpool Tub Assembly
15285871 Whirlpool Hose and Clamp
