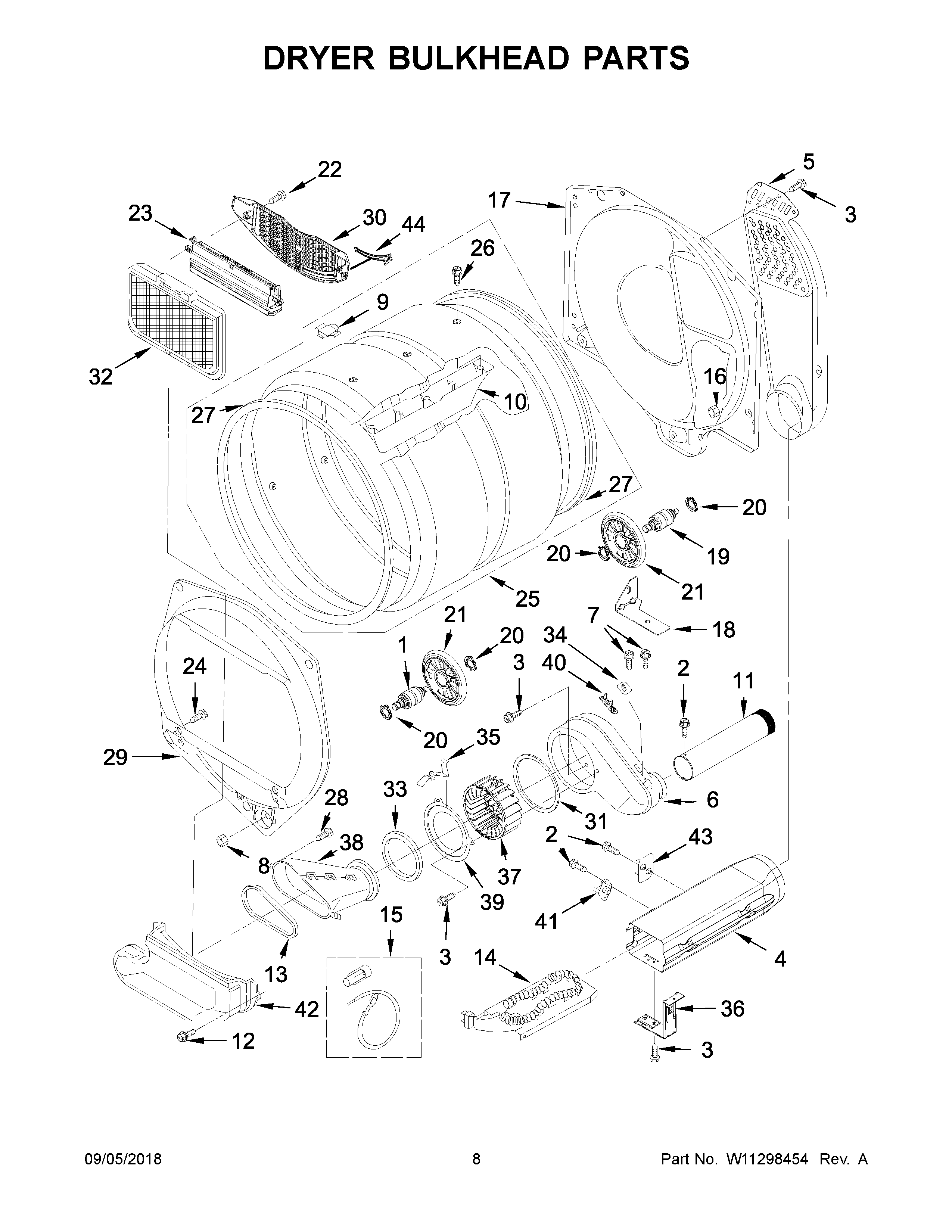

WETLV27HW1 05 – DRYER BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	SCREW
4	W10608822 Whirlpool Box
5	WP3387911 Whirlpool Air Duct
6	W10888146 Whirlpool Housing
7	WP693995 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	8066086 Whirlpool Plug
10	279982 Whirlpool Drum Baffle
11	WP8563748 Whirlpool Exhaust Pipe
12	WP488729 Whirlpool Refrigerator Door Screw
13	WP697770 Whirlpool Blower Cover Plate Seal
14	ELEMENT
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W10878109 Whirlpool Bracket
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP308685 Whirlpool Microwave Screw
23	W11129408 Whirlpool Out Housing
25	W10518375 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11229602 Whirlpool Seal
28	WP3387230 Whirlpool Screw
29	WP697557 Whirlpool Bulkhead Assembly
30	W11086603 Whirlpool Dryer Link Screen Air Grille
32	WP3389644 Whirlpool Screen Assembly
33	WP8566209 Whirlpool Seal
34	WP3387134 Whirlpool Dryer Cycling Thermostat
35	3390935 Whirlpool Clip
36	3389648 Whirlpool Bracket Assembly
37	WHEEL
38	279704 Whirlpool Duct Assembly
39	279780 Whirlpool Plate Cover
40	WP3392519 Whirlpool Dryer Thermal Fuse
41	WP3390291 Whirlpool High Limit Thermostat
42	279700 Whirlpool Duct Lint
43	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
44	WP3387223 Whirlpool Electrode Assembly
