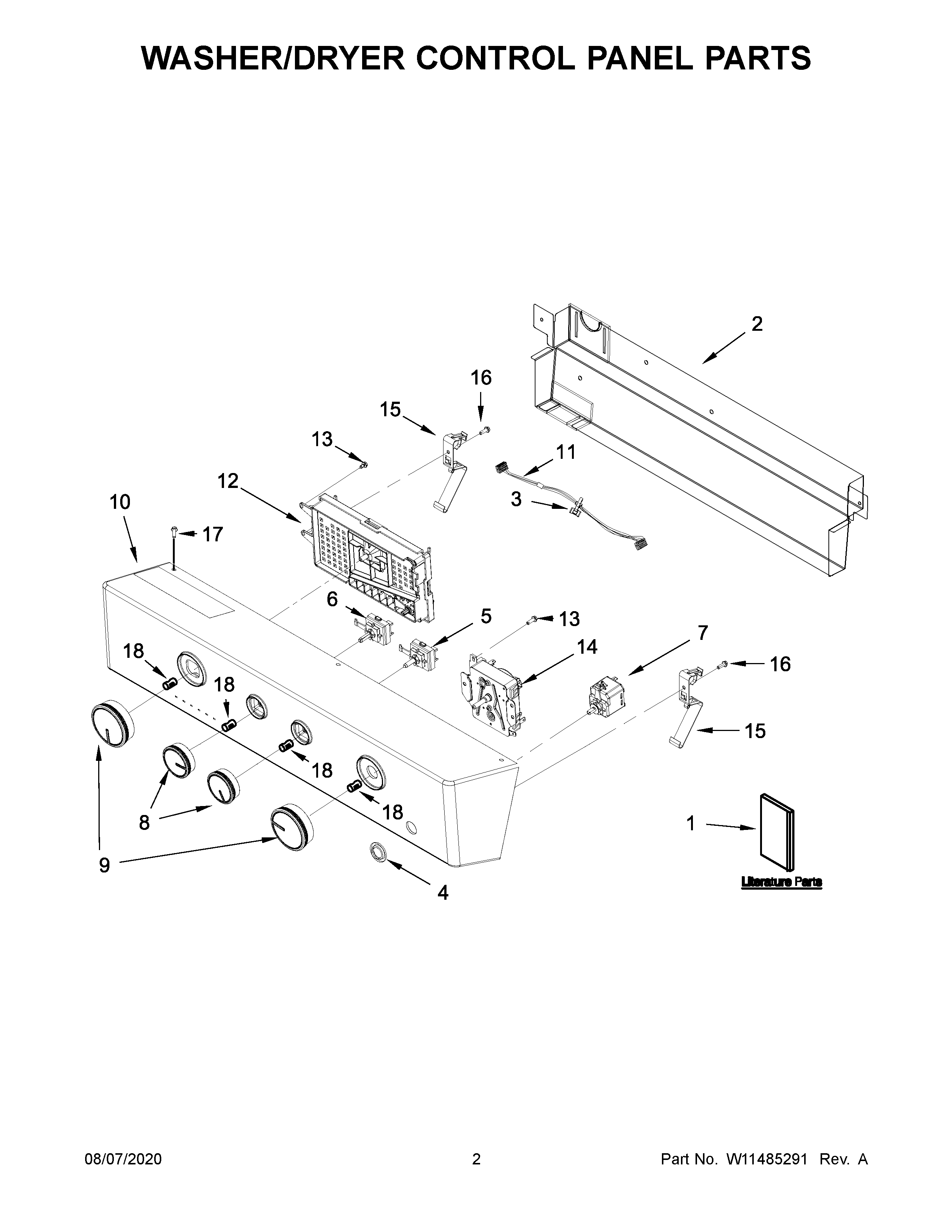

WETLV27HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

WETLV27HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Written by

in

WETLV27HW2 02 – WASHER/DRYER CONTROL PANEL PARTS

Products

PositionProduct
1CWIRING DIAGRAM
1BENERGY GUIDE
1DINSTALLATION INSTRUCTIONS
1ATECH SHEET
1USE AND CARE GUIDE
2W11040441 Whirlpool Bracket
3W10210799 Whirlpool Clip
4W11049351 Whirlpool Button
5W10859568 Whirlpool Cycle Switch
6W11168256 Whirlpool Cycle Switch
7WPW10563095 Whirlpool Relay Assembly
9W10756270 Whirlpool Dryer Timer Knob
10W11364933 Whirlpool Dishwasher Control Panel
11W10694669 Whirlpool Wire Harness
12W11629601-includeCORE Whirlpool W11629601 Washer Electronic Control Board + Core
13WP90767 Whirlpool Screw
14W11409801 Whirlpool Timer
153389453 Whirlpool Hinge Assembly
16WP9740848 Whirlpool Dishwasher Screw
17W11590579 Whirlpool Screw
18WP688805 Whirlpool Spring Clip
