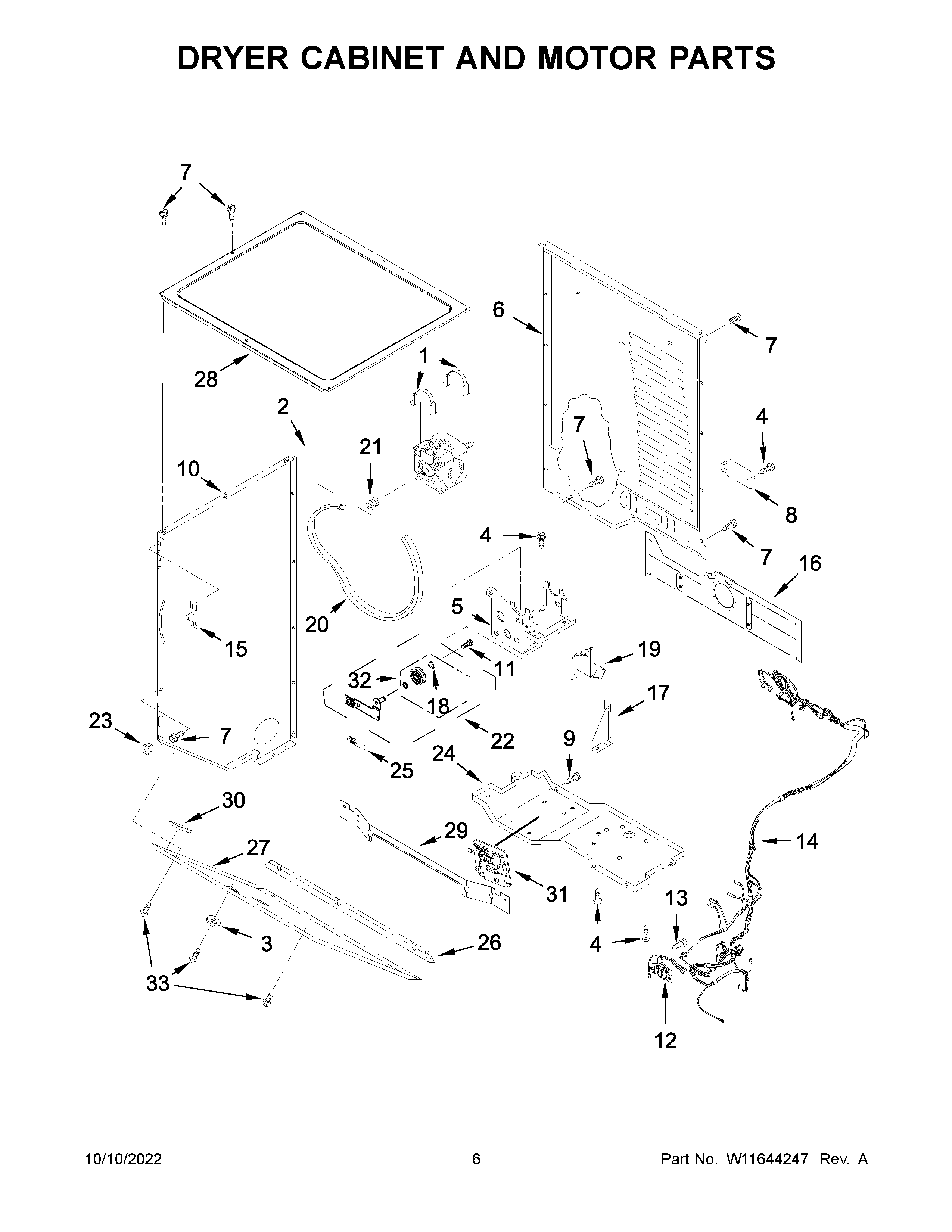

WETLV27HW3 04 – DRYER CABINET AND MOTOR PARTS

WETLV27HW3 04 – DRYER CABINET AND MOTOR PARTS

Written by

in

WETLV27HW3 04 – DRYER CABINET AND MOTOR PARTS

Products

PositionProduct
1CLAMP
2W11094983 Whirlpool Drive Motor
3W11028744 Whirlpool Latch
4WP3390631 Whirlpool Screw
5W11107901 Whirlpool Bracket
6W10892491 Whirlpool Rear Panel
7SCREW
8BRACKET, TERMINAL BLOCK
9W10850756 Whirlpool Screw
10W11043388 Whirlpool Panel
10APANEL, SIDE (WHITE (RIGHT HAND))
11WP3389420 Whirlpool Screw
12279318 Whirlpool Terminal
13279393 Whirlpool Terminal Block Screw and Nut Kit
14W11491459 Whirlpool Wire Harness
153389231 Whirlpool Clip Front Panel
16PANEL, BACK ASSEMBLY
17BRACKET, BULKHEAD
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19BRACKET, ROLLER ASSEMBLY
20341241 Whirlpool Dryer Drum Belt
21W10918858 Whirlpool Motor Pulley
22W11179188 Whirlpool Bracket
23WP692400 Whirlpool Nut
24BASE, DRYER
25WPW10446781 Whirlpool Spring
26COVER, TRANSITION PANEL (WHITE)
273389272 Whirlpool Panel
28TOP, DRYER (ASSEMBLY)
29BRACKET
303389682 Whirlpool Spacer
31WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
32279640 Whirlpool Dryer Idler Pulley Kit
33WP693304 Whirlpool Screw
