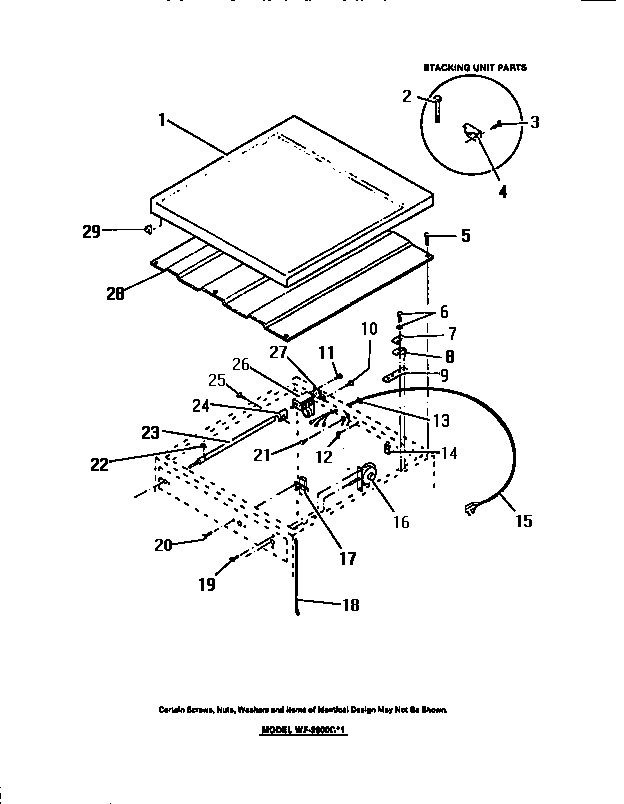

WF2000CL1 05 – CABINET TOP, SUB TOP, ELECTRICAL CO

WF2000CL1 05 – CABINET TOP, SUB TOP, ELECTRICAL CO

Written by

in

WF2000CL1 05 – CABINET TOP, SUB TOP, ELECTRICAL CO

Products

PositionProduct
1WCI 8015394
2WCI 8015627
4WCI 8015419
5SCREWS (4)
6WCI 8015295
7WCI 8015156
8WCI 8015146
9WCI 8015147
10WCI 8001851
11SCREWS (2)
12WCI 8015350
13WCI 8015138
15WCI 8001819
16WCI 8015220
17WCI 8015424
18WCI 8015120
19SCREWS (2)
20SCREWS (2)
21WCI 8001873
22WCI 8015317
23WCI 8015386
24WCI 8015109
25SCREWS (2)
26WCI 8015474
27WCI 8015195
28WCI 8014570
29CLIPS (2)
