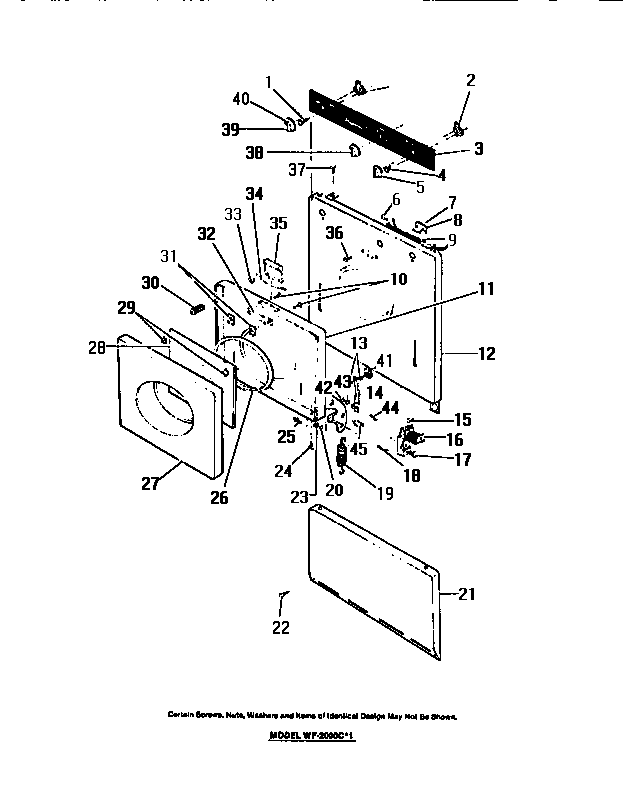

WF2000CW1 06 – CABINET FRONT PANELS, DOOR PANELS – Aparts

WF2000CW1 06 – CABINET FRONT PANELS, DOOR PANELS

Products

Position	Product
2	WCI 8015449
3	WCI 8015480
4	SCREWS (2)
6	WCI 8015123
7	WCI 8015323
8	WCI 8015163
9A	WIRING HARNESS, TIMER WIRING
9	WCI 8015246
10	WCI 8015286
11	WCI 8015269
12	WCI 8015453
13	WCI 8015344
14	WCI 8015272
16	WCI 8015213
17	WCI 8015258
18	WCI 8015090
19	WCI 8015395
21	WCI 8015391
22	WCI 8015328
23	WCI 8001842
24	WCI 8015347
25	WCI 8015289
26	WCI 8015226
27	WCI 8015161
28	WCI 8015106
29	WCI 8015122
30	WCI 8015121
31	WCI 8015346
32	WCI 8015383
33	WCI 8015097
34	WCI 8015135
35	WCI 8015229
36	WCI 8005296
37	SCREWS (2)
38	KNOB, SELECTOR SWITCH
39	WCI 8015410
40	WCI 8015422
41	WCI 8015267
42	NUTS
43	WASHER, LOCK (4)
44	WCI 8015632
45	WCI 8015388
