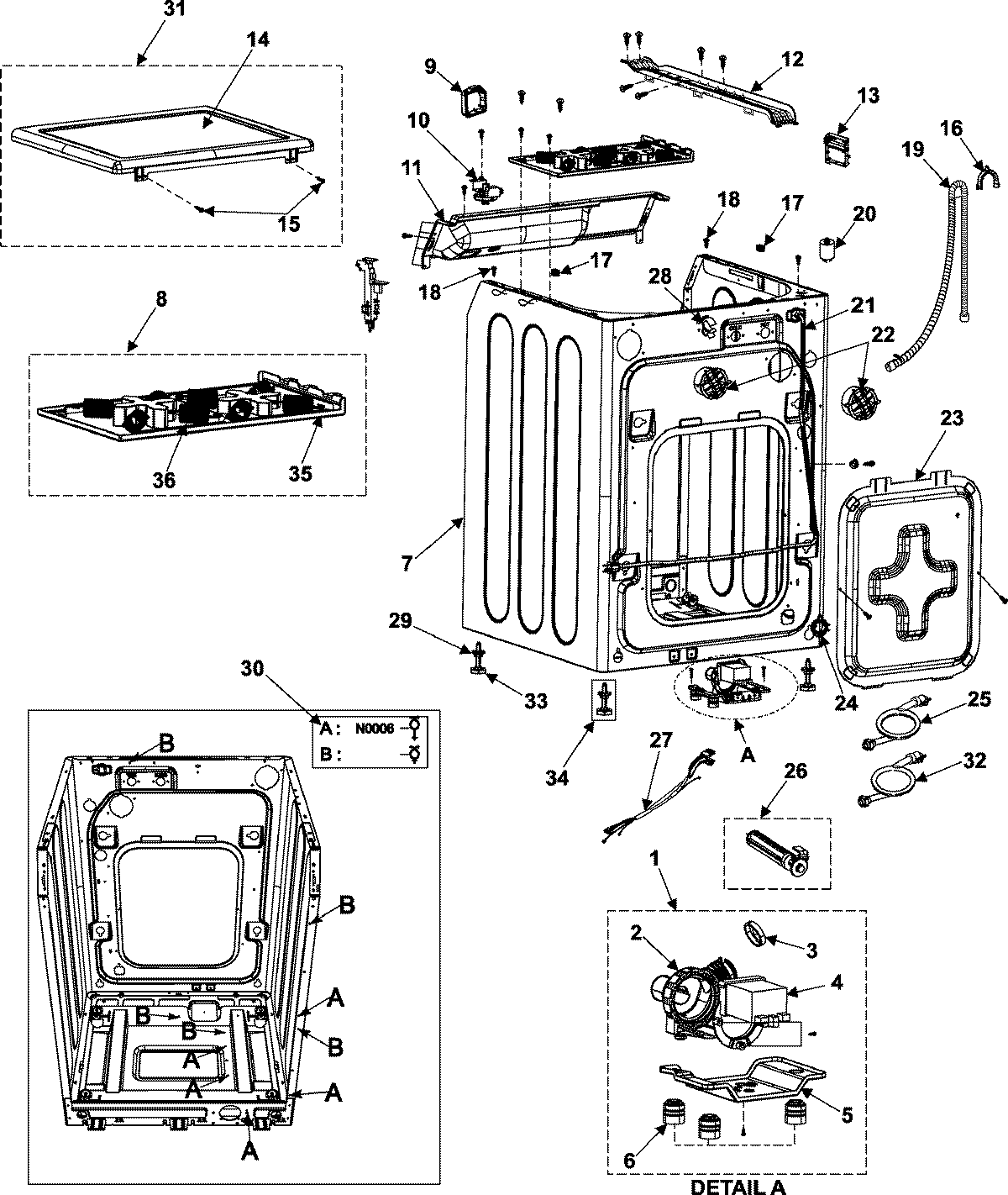

| 1 | DC96-00774A Samsung Washer Water Drain Pump |
| 2 | SEE NOTE GROUND WIRE, GREEN |
| 3 | MAY DC62-00202A |
| 4 | DC31-00054A Samsung Washer Drain Pump |
| 5 | MAY DC61-01424A |
| 6 | MAY DC63-00619A |
| 7 | MAY DC97-06995A |
| 8 | MAY DC97-08635C |
| 9 | MAY MFS-MEMS-00 |
| 10 | MAY DC97-03716C |
| 11 | MAY DC61-01166A |
| 12 | MAY DC61-01200A |
| 13 | MAY W10126757 |
| 14 | MAY DC63-00523A |
| 15 | 6009-001476 Samsung Washer Dryer Hex Screw Hex+M5 L10 ZPC White |
| 16 | MAY DC62-10278A |
| 17 | MAY DC61-01256A |
| 18 | MAY 6009-001458 |
| 19 | MAY DC97-10794A |
| 20 | MAY DC29-00013A |
| 21 | MAY DC96-00757A |
| 22 | MAY DC97-08740C |
| 23 | MAY DC63-00522A |
| 24 | MAY DC61-00274A |
| 25 | MAY DC97-07126A |
| 26 | MAY DC97-07448A |
| 27 | MAY DC96-01043C |
| 28 | MAY DC61-00133A |
| 29 | MAY 6021-001203 |
| 30 | MAY DC61-40081A |
| 31 | MAY DC97-08634A |
| 32 | MAY DC97-07127A |
| 33 | MAY DC61-01432A |
| 34 | DC97-08838A Samsung Leg Assembly |
| 35 | MAY DC61-01403A |
| 36 | MAY DC61-01404A |
