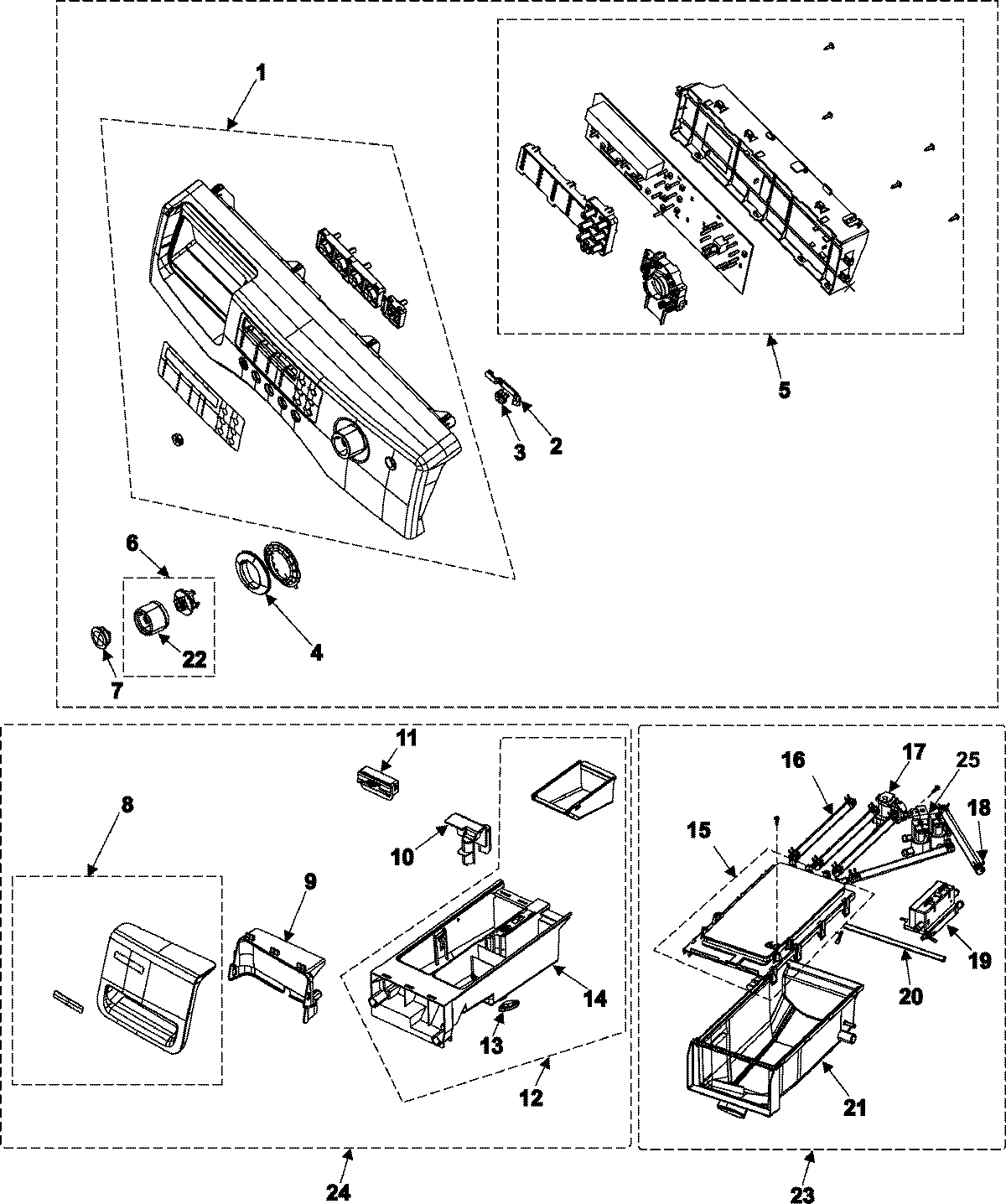

WF316BAW 02 – CONTROL PANEL/HOUSING-DRAWER

Products

Position	Product
1	MAY DC97-10513A
2	MAY DC66-00413A
3	MAY DC64-01105A
4	SEE NOTE GROUND WIRE, GREEN
5	MAY W10126754
6	MAY DC97-10526A
7	MAY DC64-01132A
8	MAY DC97-10961A
9	MAY DC64-01113A
10	MAY DC67-00121B
11	MAY DC61-01171A
12	MAY DC97-08774A
13	MAY DC63-00516A
14	MAY DC61-01170A
15	DC97-08800A Samsung Washer S Drawer Housing Assembly
16	MAY DC67-00051B
17	MAY DC62-30314K
18	MAY DC65-00008A
19	MAY DC97-10417A
20	MAY DC67-00089F
21	MAY DC61-01167C
22	MAY DC64-01084A
23	MAY DC97-07125C
24	MAY DC97-10335A
25	MAY DC62-00142G
