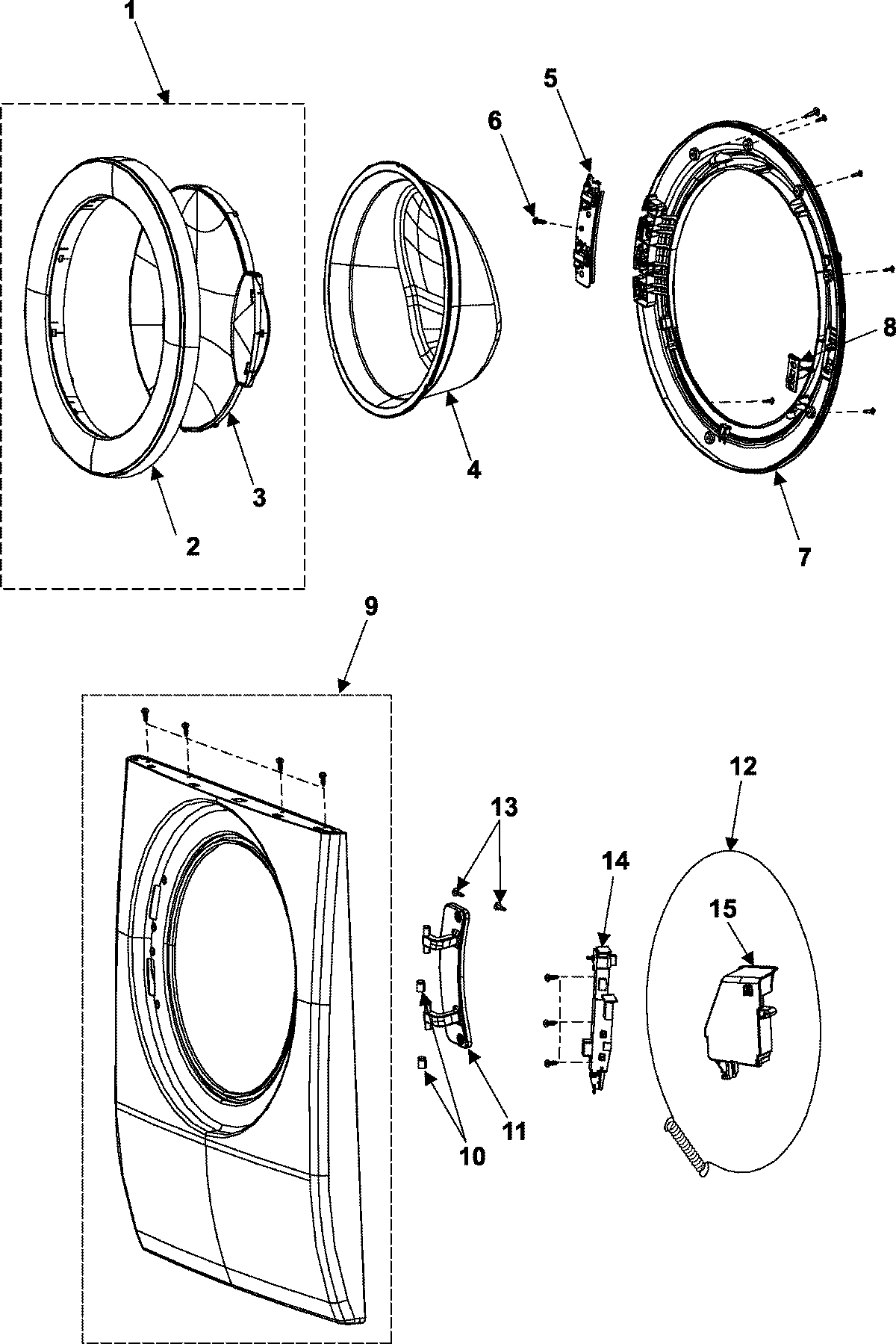

WF316LAW 03 – DOOR

WF316LAW 03 – DOOR

Written by

in

WF316LAW 03 – DOOR

Products

PositionProduct
1MAY DC97-10338A
2SEE NOTE GROUND WIRE, GREEN
3MAY DC64-01120A
4MAY DC64-00504A
5MAY DC61-01222A
6MAY 6001-001668
7DC61-01520A Samsung Holder Glass
8MAY DC66-00326A
9MAY DC97-10340A
10DC61-00891A Samsung Washer Dryer Guide Hinge
11MAY DC61-01532A
12MAY DC97-04973A
13MAY 6001-001773
14MAY DC64-00519B
15MAY DC63-00693A
