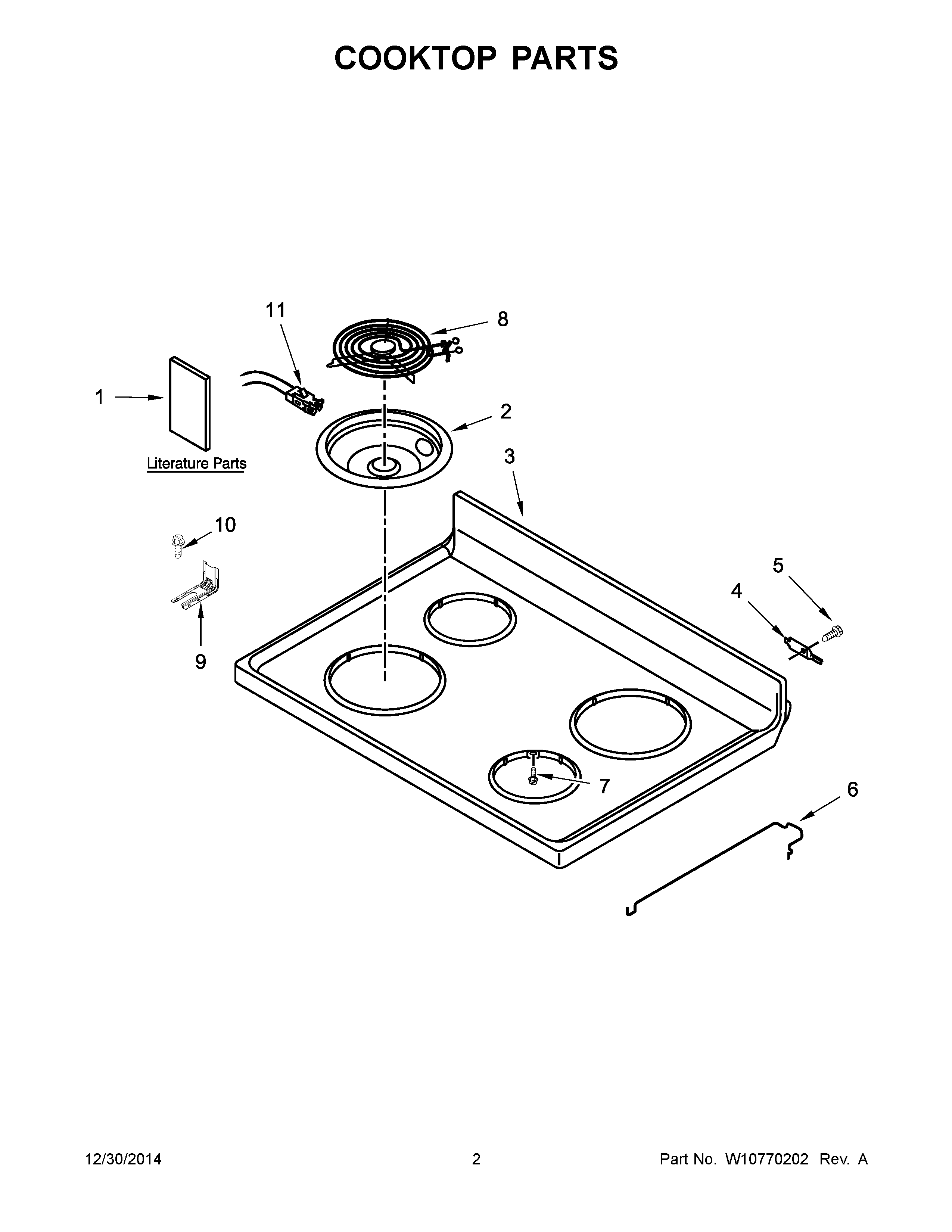

WFC150M0EB0 02 – COOKTOP PARTS

WFC150M0EB0 02 – COOKTOP PARTS

Written by

in

WFC150M0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIWPW10281322 Whirlpool Connector
NIW11396691 Whirlpool Element Receptacle and Wire Kit
NIW11232223 Whirlpool Wire Harness
NIW11134593 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
1CSAFER COOKING TIPS (ENGLISH
1INSTRUCTIONS, INSTALLATION
1AOWNER'S MANUAL
1BSHEET, TECH (ENGLISH)
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2ADRIP BOWL 8" W/HOLE CHROME
3A8195532 Whirlpool Cooktop Power Switch
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP3196154 Whirlpool Screw Assembly
8AW11161939 Whirlpool Range Surface Element 8"
8W11168414 Whirlpool Range 6" Surface Element
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
11814399 Whirlpool Receptacle Kit
