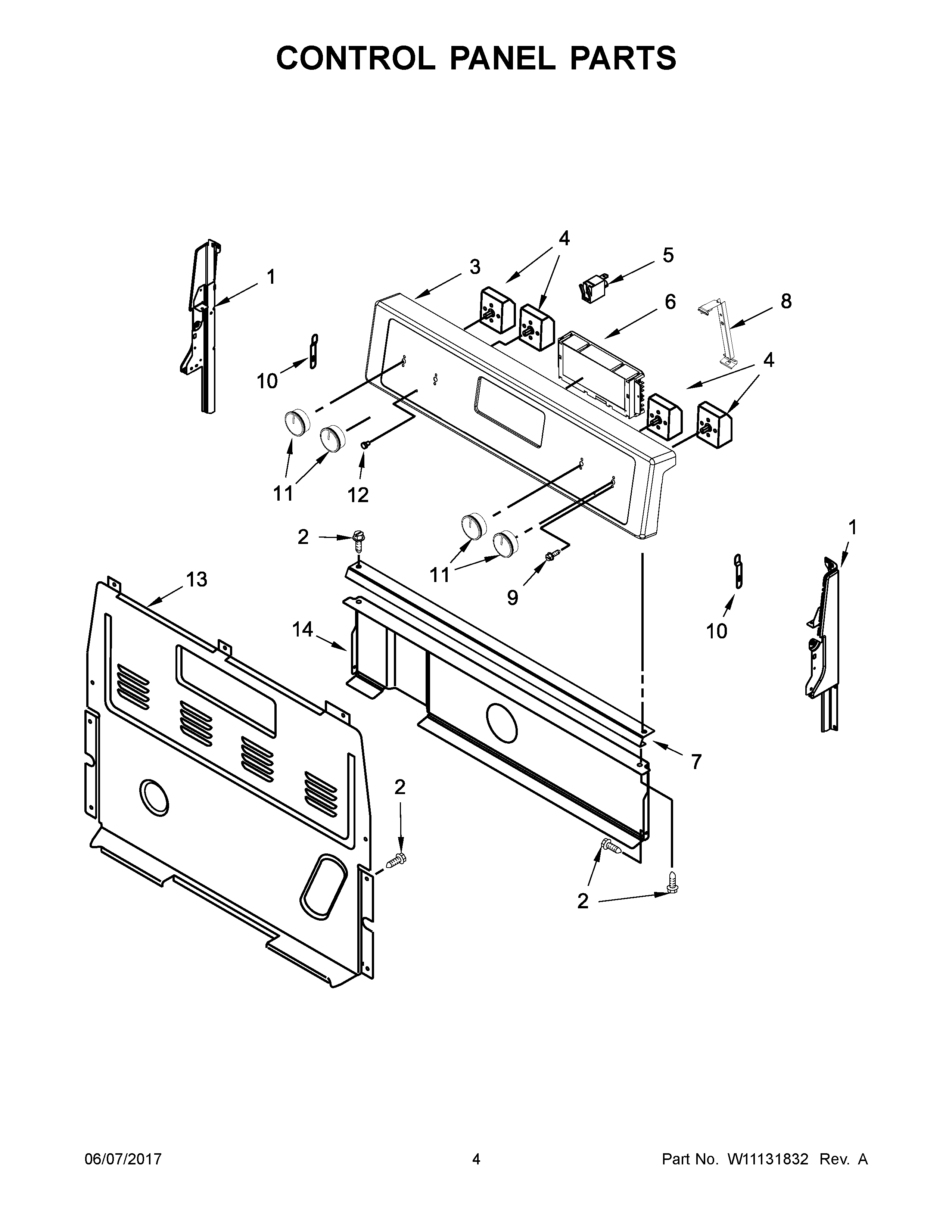

WFC150M0EB1 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219370 Whirlpool Endcap Panel
1B	W11219365 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	SCREW
3A	W11231631 Whirlpool Control Panel
3	W11247341 Whirlpool Control Panel
4	SWITCH-INF
4A	WP3149404 Whirlpool Oven Surface Element Switch
5	WP8523265 Whirlpool Indicator Light
6A	W11122557 Whirlpool Electronic Control Board + Core
6	W11122555 Whirlpool Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	W11230932 Whirlpool Bracket Mounting
9	WP3400882 Whirlpool Screw
10	3196200 Whirlpool Clip
11	W10836470 Whirlpool Knob Assembly
11A	W10853029 Whirlpool Knob
12	WP3196068 Whirlpool Light Lens
13	WP8272473 Whirlpool Rear Cover
14	W10134247 Whirlpool Heat Shield
