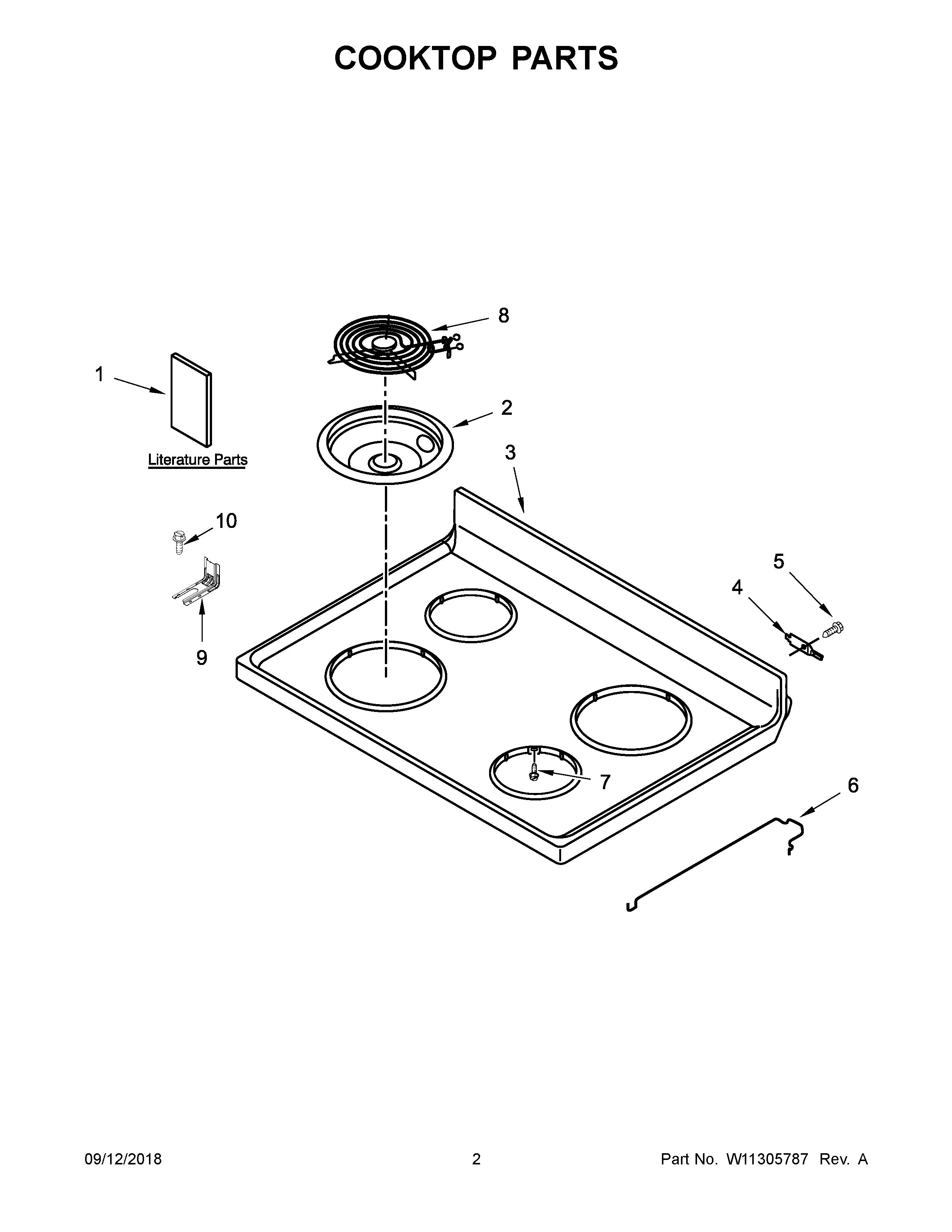

WFC150M0EW3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11396691 Whirlpool Element Receptacle and Wire Kit
NI	W11134593 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11232223 Whirlpool Wire Harness
NI	WPW10281322 Whirlpool Connector
1	OWNER'S MANUAL
1A	INSTALLATION INSTRUCTIONS
1B	WIRING DIAGRAM
2A	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	8195534 Whirlpool Cooktop
3A	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP3195812 Whirlpool Cooktop Rod
7	WP3196154 Whirlpool Screw Assembly
8A	ELMNT-SURF
8	W11396792 Whirlpool Surface Coil Element
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
