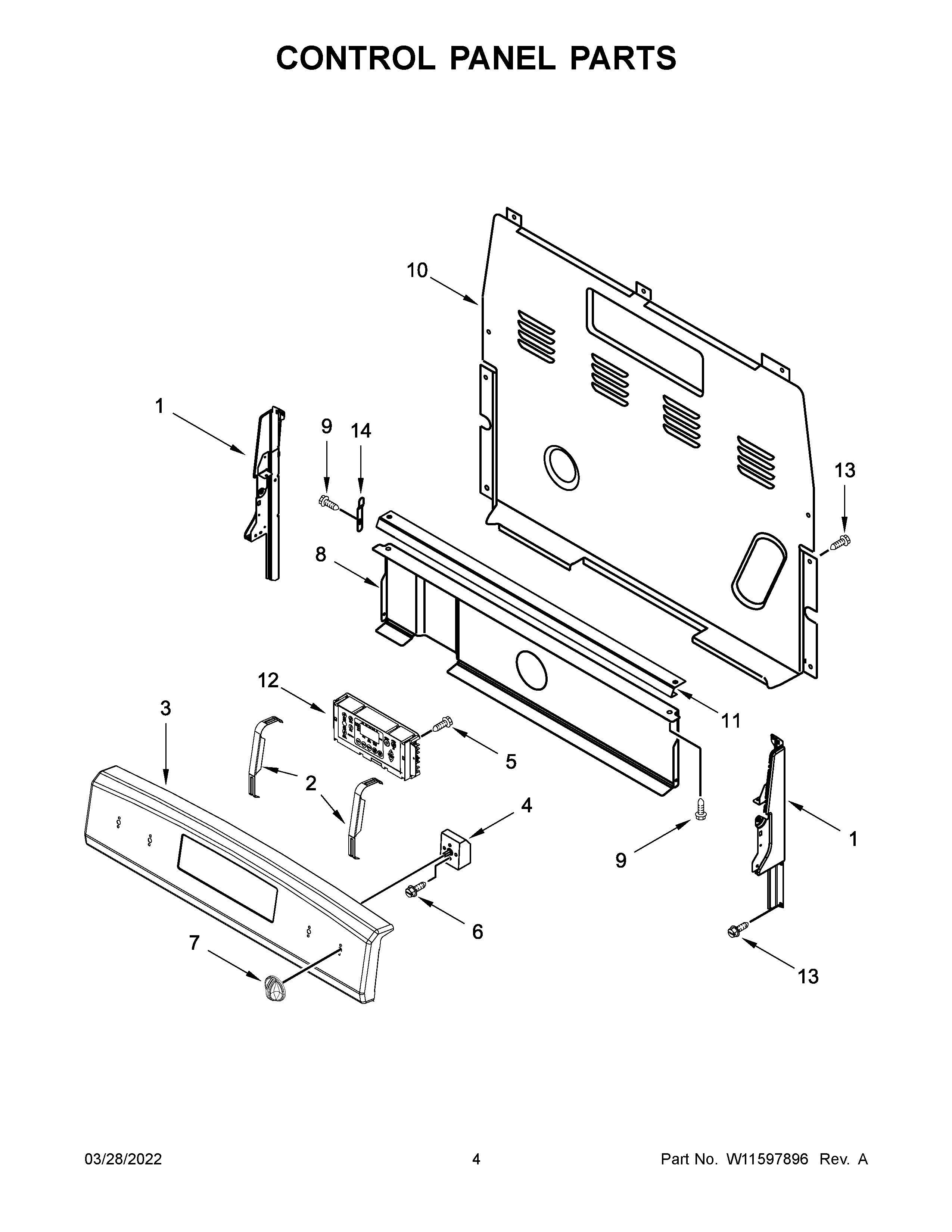

WFC150M0JW3 03 – CONTROL PANEL PARTS

WFC150M0JW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219370 Whirlpool Endcap Panel
1BW11219365 Whirlpool Panel Endcap
1AW11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2W11230932 Whirlpool Bracket Mounting
3W11550179 Whirlpool Control Panel
3AW11323155 Whirlpool Control Panel
4AWP3149400 Whirlpool Oven Infinite Switch
4WP3148952 Whirlpool Oven Infinite Switch
5WP3196557 Whirlpool Screw
6WP3400882 Whirlpool Screw
7W11158169 Whirlpool Knob
7AW11158173 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12W11594224-includeCORE Whirlpool W11594224 Refrigerator Electronic Control
12AW11594187-includeCORE Whirlpool W11594187 Refrigerator Electronic Control Board + Core
13SCREW
143196200 Whirlpool Clip
