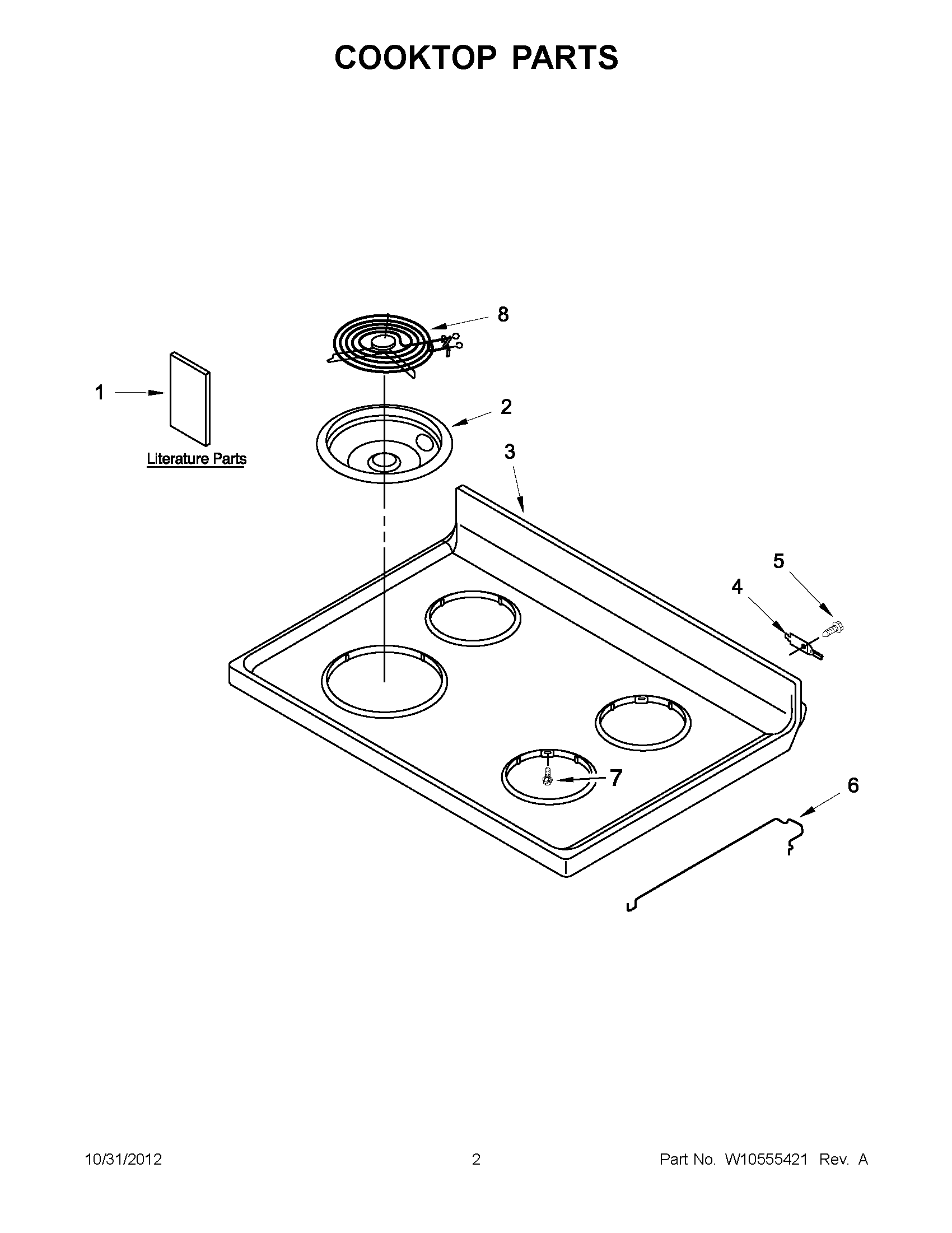

WFC150MLAB0 01 – COOKTOP PARTS

WFC150MLAB0 01 – COOKTOP PARTS

Written by

in

WFC150MLAB0 01 – COOKTOP PARTS

Products

PositionProduct
1OWNERS MANUAL
1SAFER COOKING TIPS (ENGLISH
1SHEET, TECH (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
38195532 Whirlpool Cooktop Power Switch
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP3196154 Whirlpool Screw Assembly
8W11161939 Whirlpool Range Surface Element 8"
8W11168414 Whirlpool Range 6" Surface Element
